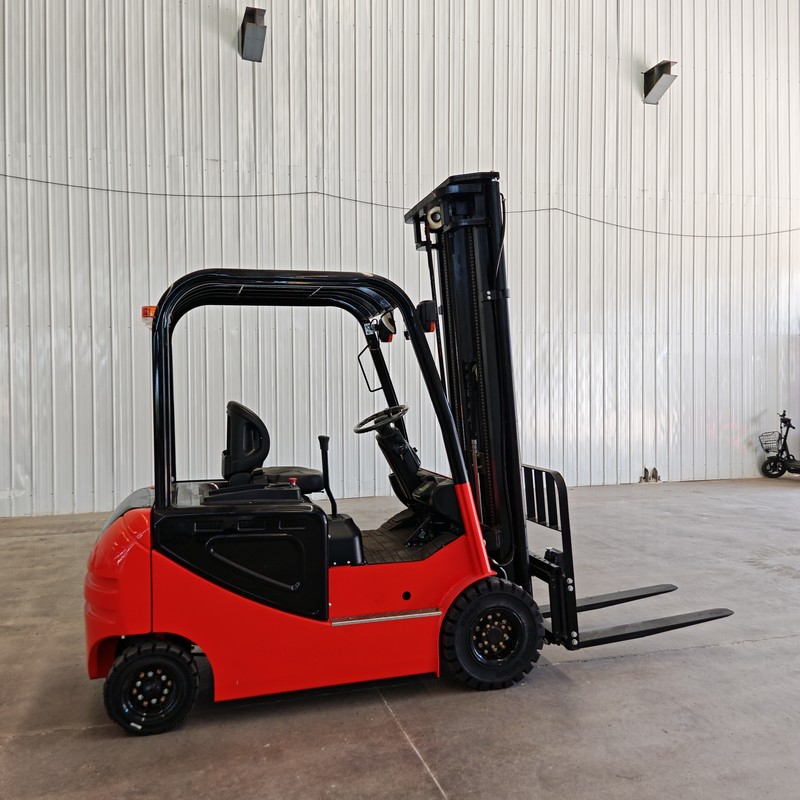

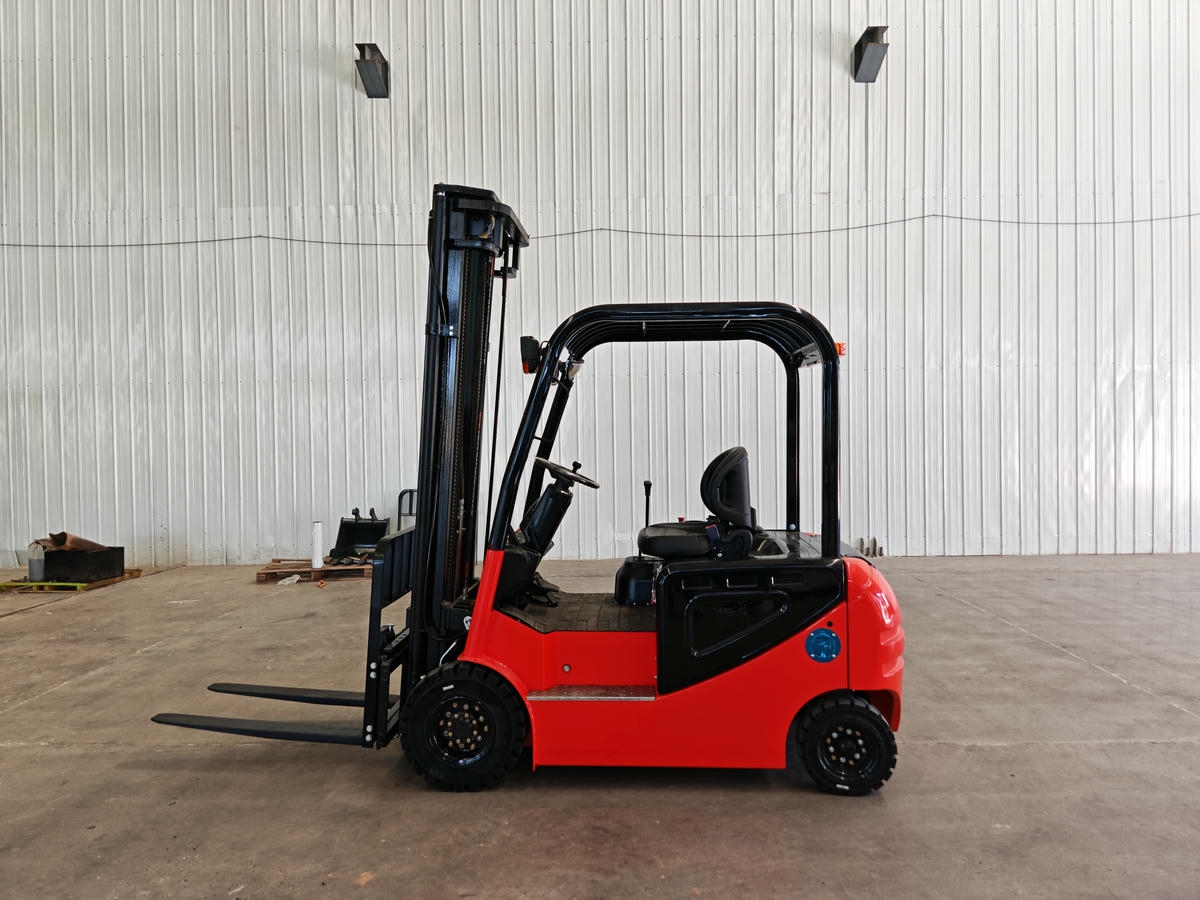

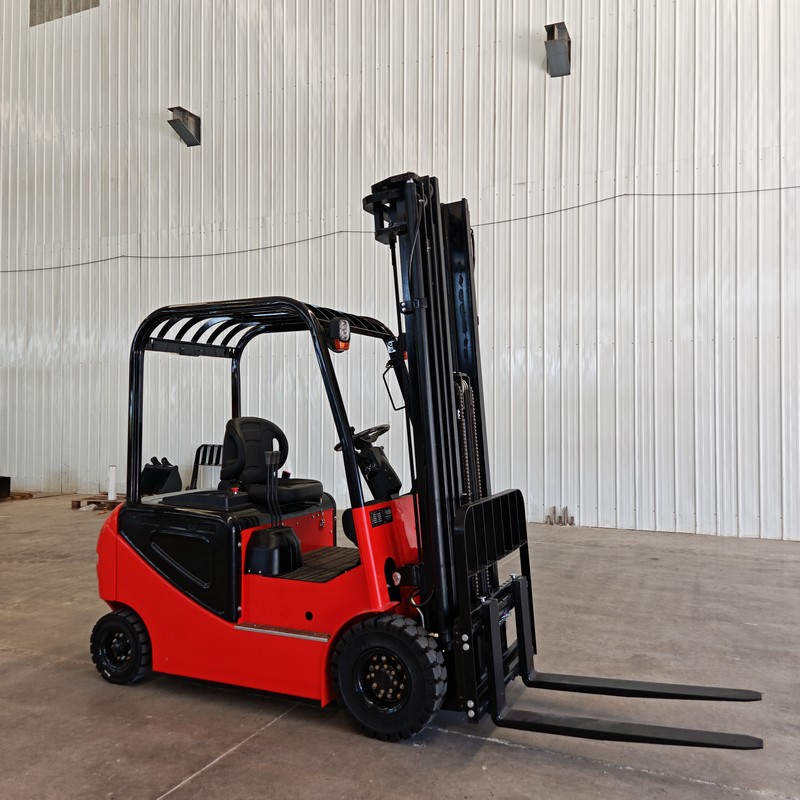

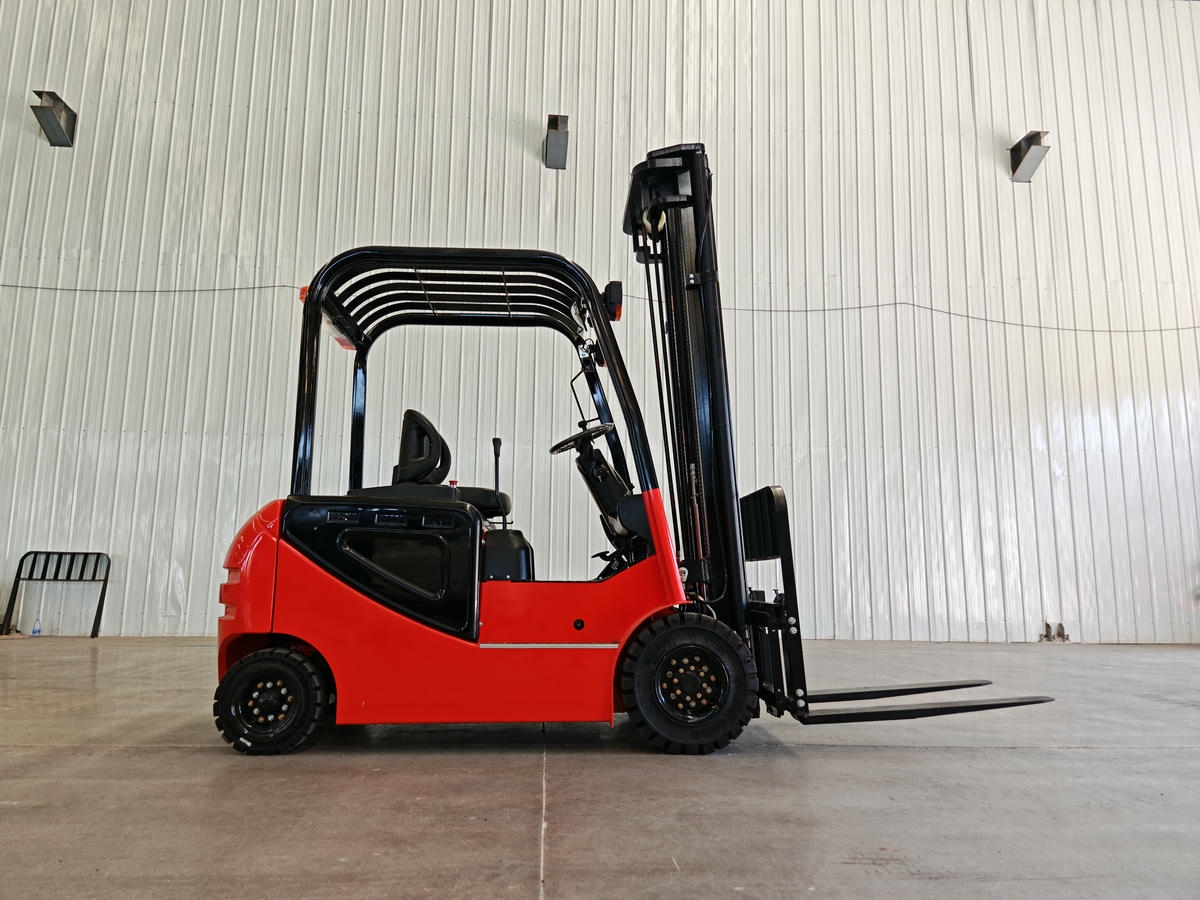

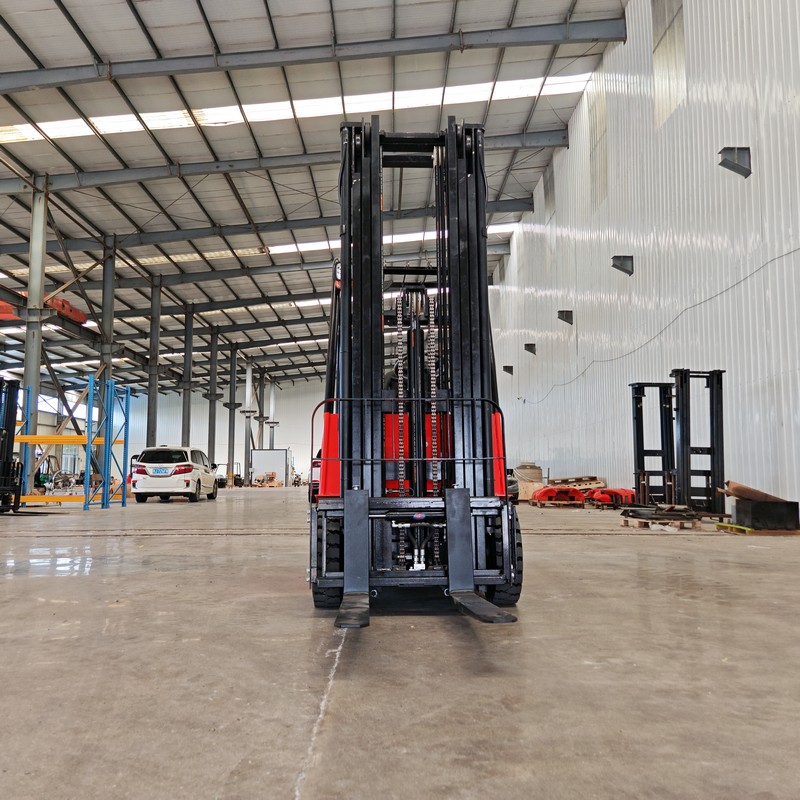

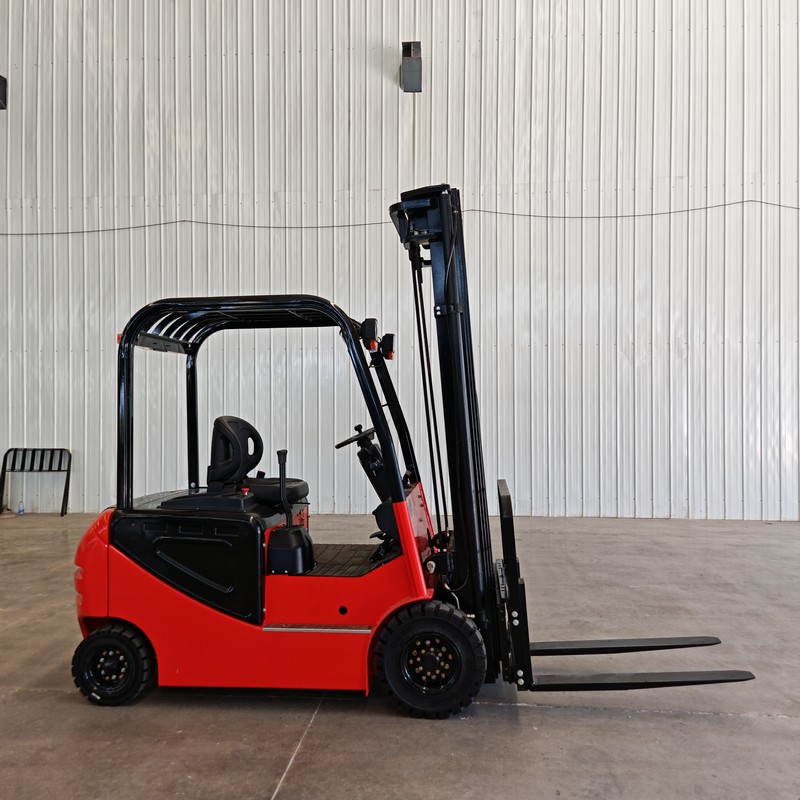

2.5 t Electric Forklift
Power & Environmental Friendliness: Powered by lithium batteries, it emits zero exhaust and operates quietly, making it suitable for indoor/dust-free workshops.
Charging & Range: Supports fast charging; a full charge provides approximately 6-8 hours of operation (depending on working conditions), with on-demand charging capability.
Maintenance Costs: Long lithium battery life (1,500-3,000 charge-discharge cycles, approximately 10 years); no easily wearable parts such as engines or gearboxes, resulting in low annual maintenance costs.
Operation & Safety: Compact body with a small minimum turning radius for easy maneuverability; equipped with overcurrent, overvoltage, and short-circuit protection; lithium batteries have no risk of leakage.
As a core material handling equipment in the industrial logistics sector, the 2.5-ton lithium battery forklift stands out with its key advantages of "high efficiency, environmental friendliness, low cost, and easy maintenance." It is suitable for multiple scenarios, including warehouse sorting, material transfer in production workshops, and loading/unloading in e-commerce logistics, meeting the material handling needs of most enterprises for loads up to 2.5 tons. It has become one of the mainstream alternatives to traditional fuel-powered forklifts and lead-acid battery forklifts.
I. Core Parameters:

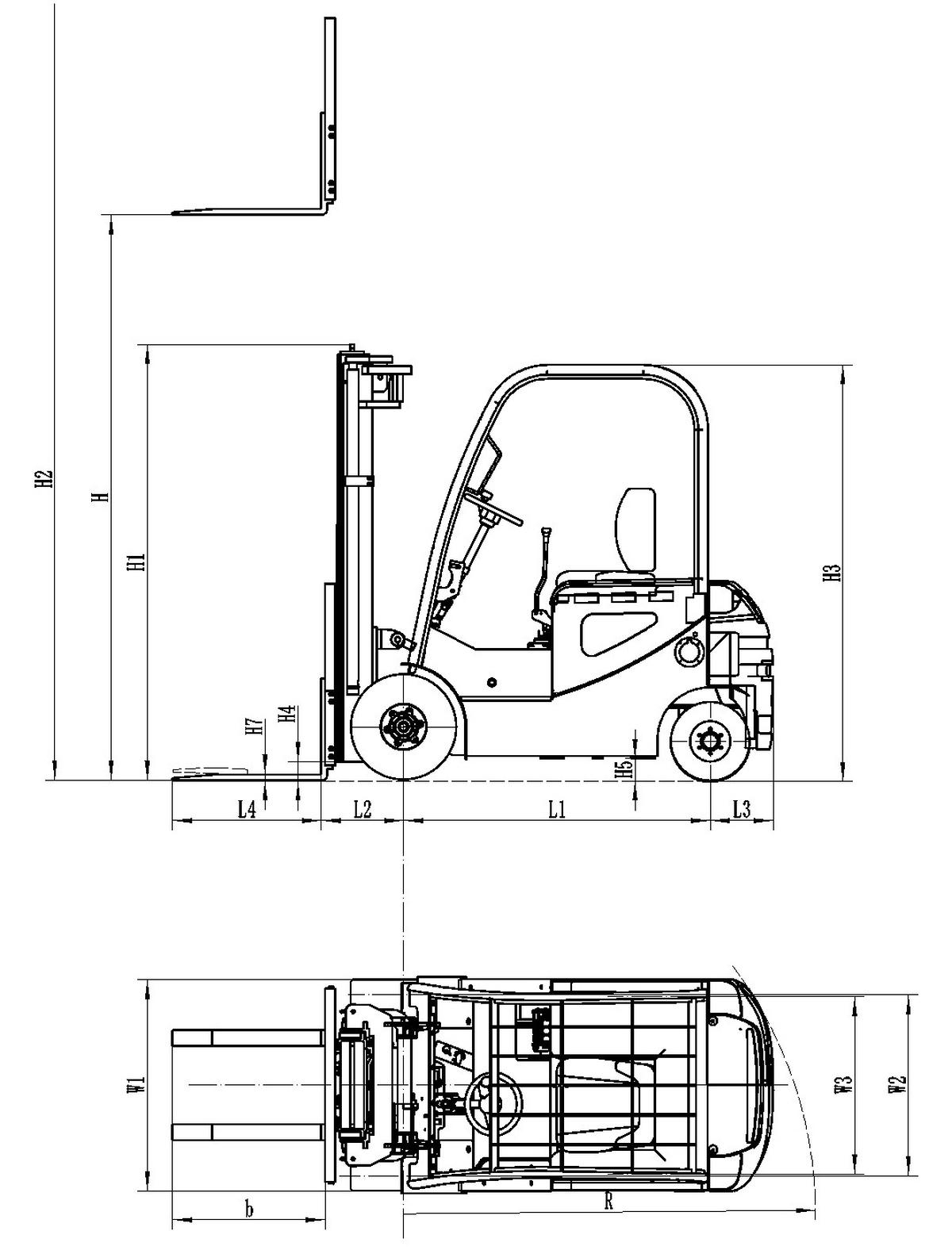

| Model | CPD25 | ||
| Rated Capacity | kg | 2500 | |
| Load Center | mm | 500 | |
| Power Type | Lithium Battery | ||
| Driving Type | Ride-on Type | ||
| Wheelbase | L1 | mm | 1550 |
| Front Tread | W2 | mm | 945 |
| Rear Tread | W3 | mm | 880 |
| Front Overhang | L2 | mm | 325 |
| Mast Tilting Angle (Forward-Backward) | ° | 5∕10 | |
| Max. Lifting Height | H | mm | 3000 |
| Free Lift Height | H7 | mm | 105 |
| Overall Height (Mast Lowered) | H1 | mm | 2200 |
| Overall Height (Mast Extended) | H2 | mm | 4055 |
| Overhead Guard Height | H3 | mm | 2110 |
| Overall Length (Including Fork) | mm | 3400 | |
| Overall Length (Without Fork) | mm | 2300 | |
| Overall Width | W1 | mm | 1096 |
| Min. Ground Clearance | H4 | mm | 88 |
| Min. Turning Radius | mm | 2220 | |
| Fork Dimensions (L×W×T) | mm | 1070*100*40 | |
| Max. Driving Speed (No-Load) | km/h | 14 | |
| Max. Driving Speed (Full-Load) | km/h | 12 | |
| Max.Lifting Speed(Full-Load/No-Load) | mm/s | 270∕300 | |
| Descending Speed (Full-Load / No-Load) | mm/s | 400∕350 | |
| Gradeability (Full-Load / No-Load) | (%) | 15∕20 | |
| Total Weight | kg | 3200 | |
| Number of Wheels (X = Driving Wheels (Front/Rear)) | 2∕2 | ||
| Tire Type (Front/Rear) | Solid Tire | ||
| Tire Size (Front/Rear) | 6.5-10 16*6.8 | ||
| Driving Brake | Hydraulic-Foot Step Type | ||
| Parking Brake | Mechanical-Manual | ||
| Driving Motor Power (S2-60min) | kW | 6 | |
| Lifting Motor Power (S3-15%) | kW | 7.5 | |
| Driving Motor Control Mode | AC | ||
| Lifting Motor Control Mode | AC | ||
| Hydraulic System Pressure | MPa | 18 | |
| Battery Capacity | V/Ah | 76.8V/205Ah |
II. Applicable Scenarios: Precisely Matching Enterprise Needs
The load capacity and dimensional characteristics of the 2-ton lithium battery forklift determine its wide range of applications, primarily including the following categories:
1. Warehouse Logistics Scenarios
Suitable for: E-commerce warehouses, third-party logistics centers, food/pharmaceutical warehouses.
Uses: Accessing goods on shelves (3-4 layers), pallet transfer, material handling in sorting areas.
Advantages: Low noise and zero emissions, compliant with the dust-free and environmental protection requirements of the food/pharmaceutical industries; compact body allows flexible turning in narrow aisles (2.5-3m).
2. Manufacturing Scenarios
Suitable for: Automotive parts factories, electronics factories, machinery plants, furniture factories.
Uses: Raw material transfer within production workshops (e.g., steel plates, plastic particles), loading/unloading of semi-finished/finished products (e.g., material replenishment beside machine tools).
Advantages: Charge on demand without stopping operations for long charging times; no fuel pollution, protecting the workshop production environment; simple maintenance reduces equipment downtime.
3. Commerce & Retail Scenarios
Suitable for: Large supermarkets, building material markets, home appliance stores.
Uses: Replenishment handling from warehouses to sales floors (e.g., pallet transfer of home appliances and building materials), truck loading/unloading.
Advantages: Easy to operate; ordinary employees can get started after 1-2 hours of training; fast charging function allows battery replenishment during lunch breaks, meeting all-day operational needs.
4. Cold Chain Low-Temperature Scenarios
Suitable for: Frozen warehouses (-10°C to -25°C), refrigerated workshops.
Uses: Handling of frozen food and pharmaceutical cold-chain materials.
Advantages: Dedicated low-temperature lithium batteries (optional) operate normally in low-temperature environments, avoiding the difficulty of fuel-powered forklifts in cold starts; sealed battery design prevents condensation from affecting equipment.
III. Frequently Asked Questions
Do lithium batteries need to be replaced regularly?
Under normal use, the cycle life of lithium batteries is approximately 1,500-3,000 cycles. With daily charging, they can last 4-8 years.
Can they be used in rainy or humid environments?
Most 2.5-ton lithium battery forklifts have an IP24 protection rating (splash-proof), allowing short-term use in light rain or humid environments. However, they should not be exposed to long-term rain or immersion (to avoid battery short circuits). For outdoor operations, models with an IP54 or higher protection rating are recommended.
In summary, with its core advantages of "environmental friendliness, high efficiency, and low cost," the 2.5-ton lithium battery forklift has become a mainstream material handling equipment in modern industrial logistics.
