Small Digger
1.Compact zero-tail mini excavator, flexible and efficient, ideal for urban renovation, indoor construction and landscaping.
2.Zero-tail design with low noise, enabling high-precision operation even in confined spaces.
3.Compact zero-tail model, flexible and space-saving, efficient and time-saving, the top choice for restricted sites.
4.A master of high-precision work! This zero-tail mini excavator suits various applications with low noise and easy operation.

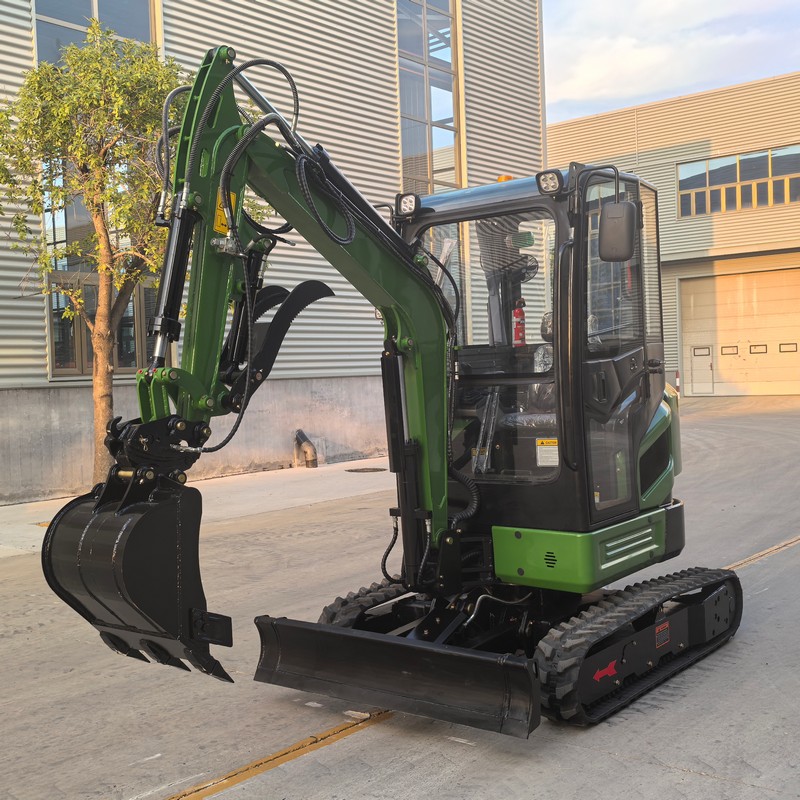

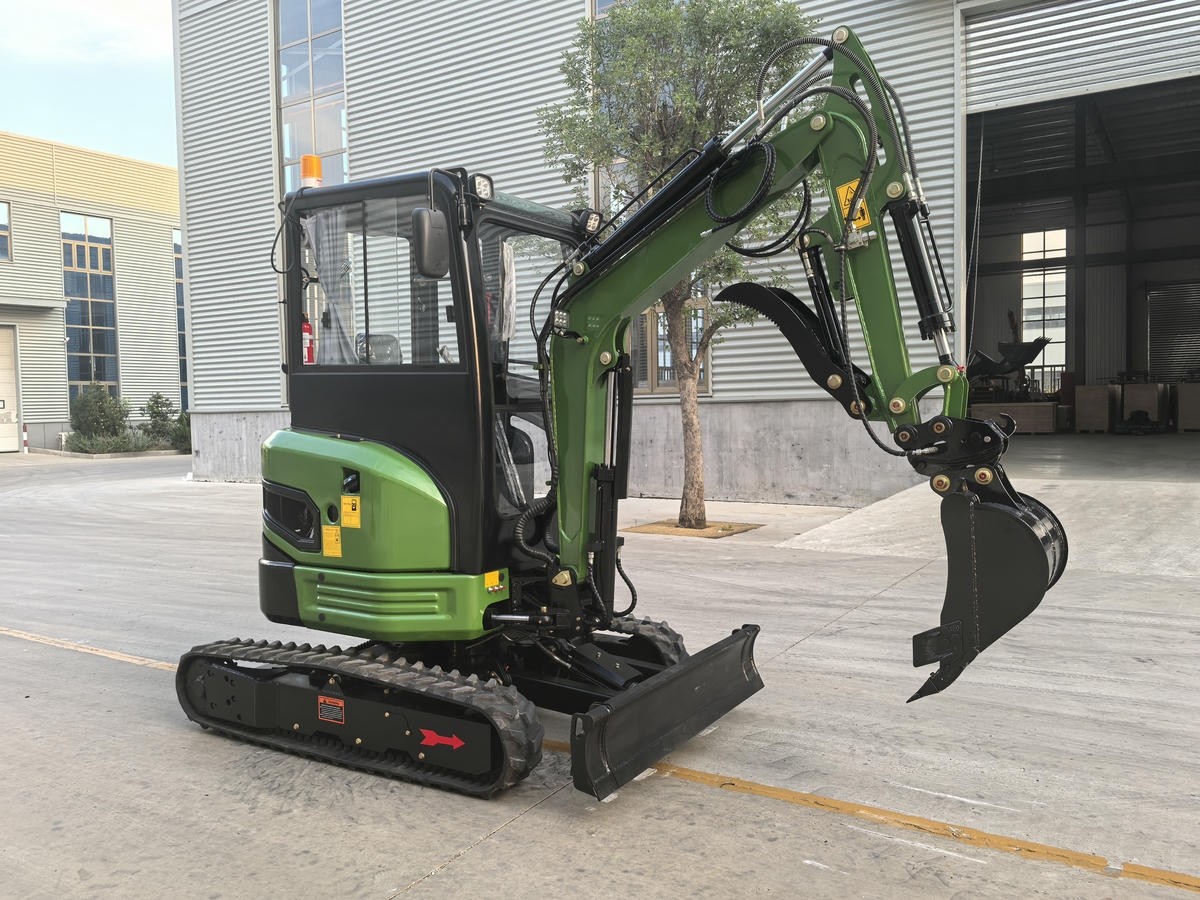

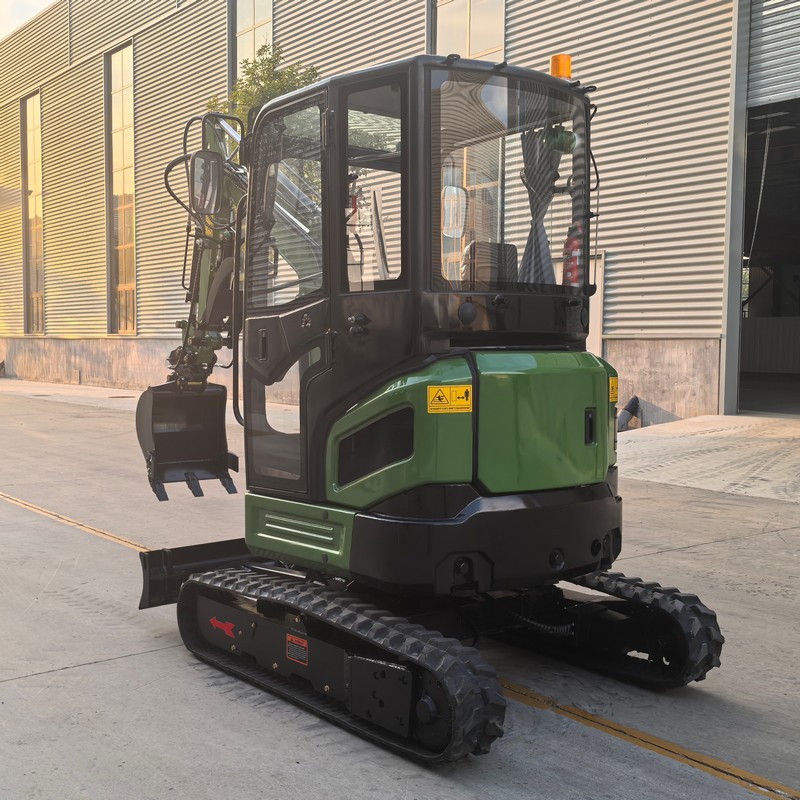

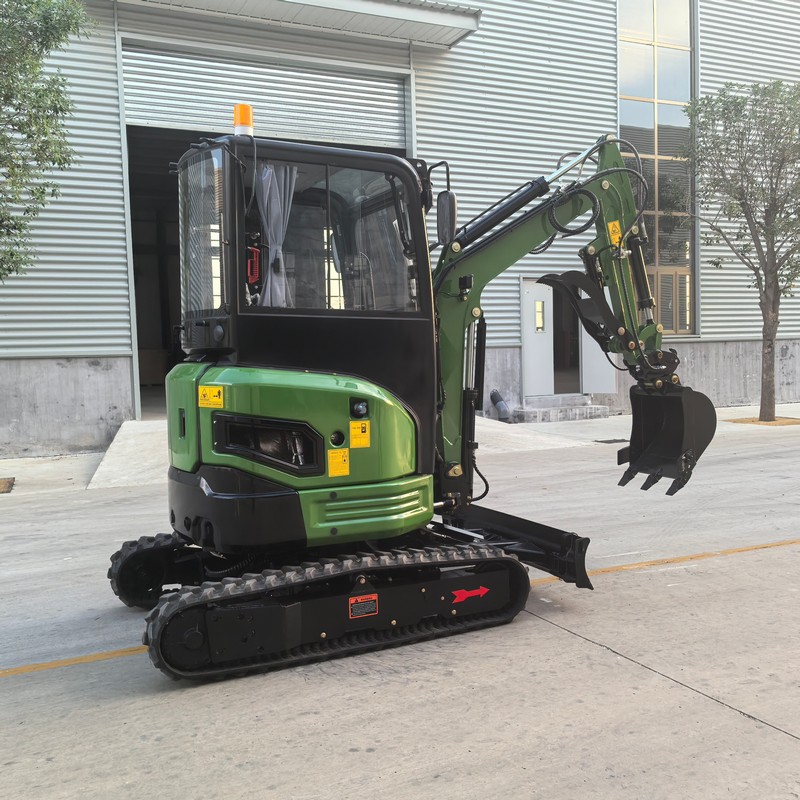

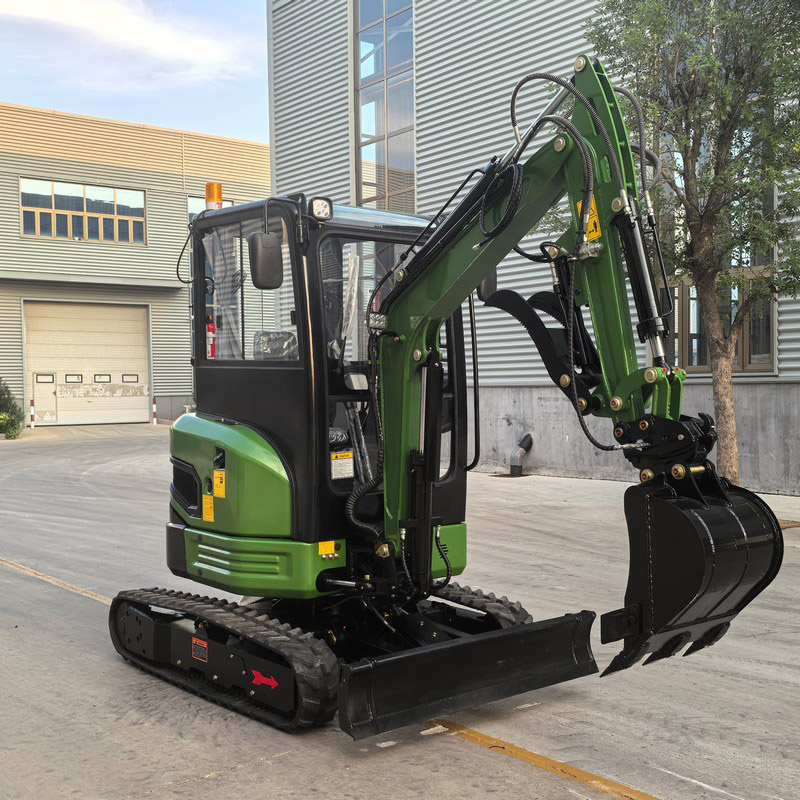

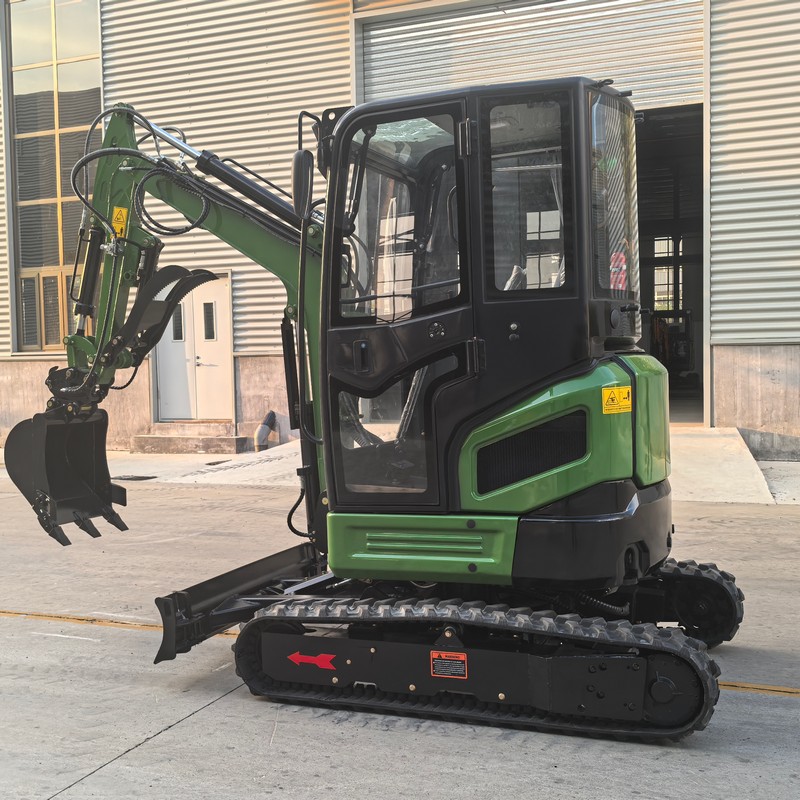

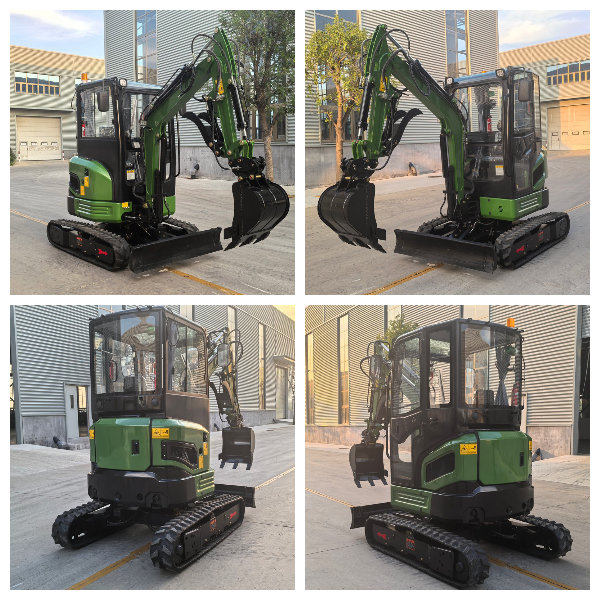

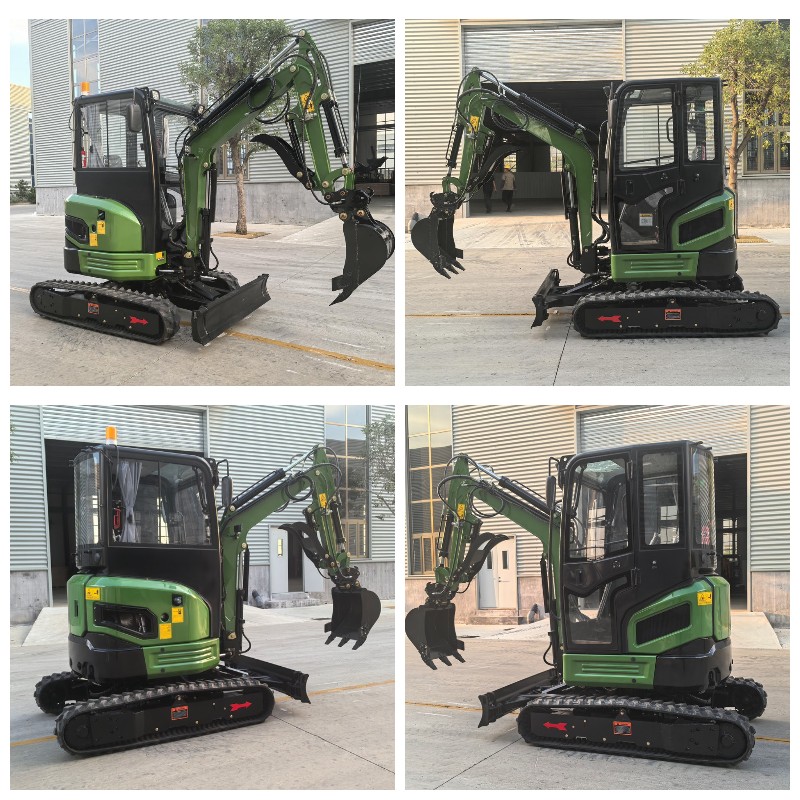

Zero-tail mini excavator is a high-efficiency construction machine specially designed for narrow and complex working conditions. By eliminating the traditional rear overhang structure, the machine is more compact and flexible, making it ideal for indoor renovation, tunnel construction, landscaping and other space-demanding projects. It is the perfect choice for overseas municipal, gardening and interior reconstruction projects.
| SPECIFICATION | Operation Weight | t | 2.5ton |
| Engine Brand | Changchai 390 | ||
| Rated Power | Kw | 20 | |
| Digging Bucket Capacity | cbm | 0.075 | |
| Bucket Width | mm | 500 | |
| Traveling Motor | LKC | ||
| Travel Speed | km/h | 3.1/2 | |
| Swing Motor | LKC | ||
| Swing Speed | r/min | 12 | |
| Hydraulic System | Plunger Pump | ||
| Body Swing Radius | mm | 883 | |
| Body Swing Angel | deg | 360 | |
| Boom Swing Angel(L/R) | deg | 55/45 | |
| Max. Grade Ability | deg | 35 | |
| Fuel Tank | L | 16 | |
| Hydraulic Fluid Chamber | L | 26 | |
| MAIN DIMENSIONS | Overall Length | mm | 4185 |
| Overall Width | mm | 1500 | |
| Overall Height | mm | 2280/2450 | |
| Track Width | mm | 250 | |
| Track Length | mm | 2044 | |
| Body Width | mm | 1260 | |
| WORKING RANGE | Max. Digging Radius | mm | 4350 |
| Max Digging Depth | mm | 2745 | |
| Max. Digging Height | mm | 3457 | |
| Max. Unloading Height | mm | 2366 | |
| Min. Swing Radius | mm | 2159 | |
| Max. Digging Depth Of Dozer Blade | mm | 293 | |
| Max. Lifting Height Of Dozer Blade | mm | 191 |
1. Ultra-Compact Design for Confined Spaces
With zero-tail swing design, the rear never extends beyond the track width, greatly reducing collision risks in corners, basements, corridors and other tight areas. The slim body can easily pass through standard door frames, making it perfect for indoor demolition, basement excavation and other special applications.
2. Flexible & Maneuverable for High-Efficiency Operation
High digging precision supports accurate pipeline laying; supports in-situ rotation with minimal turning radius; multiple working modes available to balance efficiency and fuel consumption; low vibration minimizes impact on surrounding buildings.
3. Low Noise & Low Vibration for Sensitive Environments
Equipped with optimized engine and hydraulic system, it runs quietly and is suitable for noise-sensitive areas such as hospitals, schools and residential zones. Rubber tracks effectively protect paved roads and floors from damage during operation.
4. Easy Operation & Simple Maintenance
Ergonomic cab with well-arranged control levers is user-friendly for new operators. Simple structure ensures convenient daily maintenance and easy access to key components, lowering operating costs. Some models are equipped with an intelligent monitoring system that displays real-time status and provides early warnings of potential failures.
5. Safe, Stable & Reliable
Despite its compact size, the widened chassis ensures outstanding stability during operation. Standard ROPS (Roll-Over Protective Structure) and FOPS (Falling Object Protective Structure) fully protect the operator. The hydraulic system features overload protection to prevent damage from overloading, ensuring long service life.
