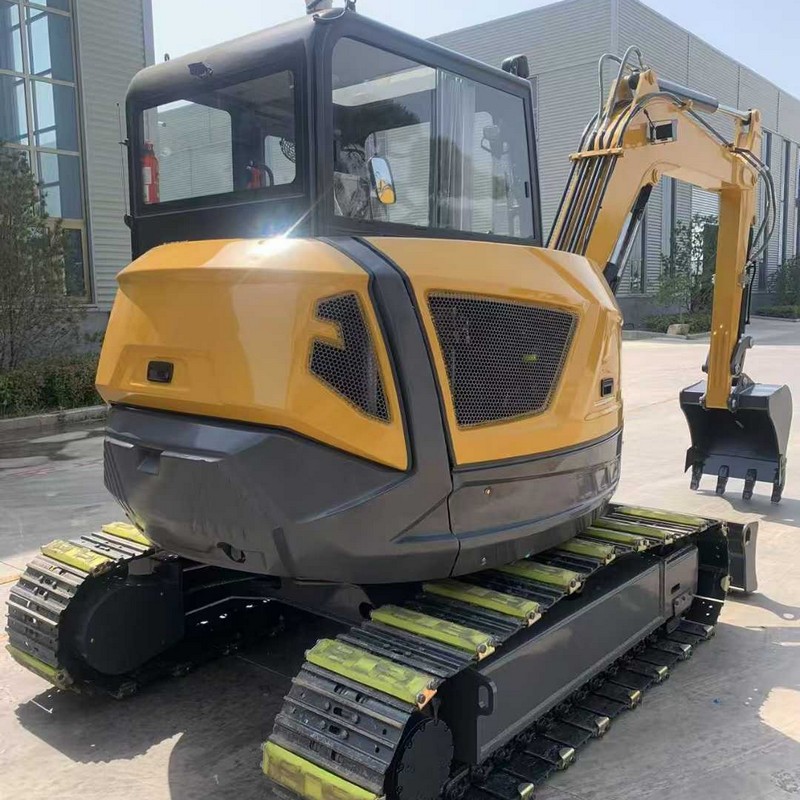

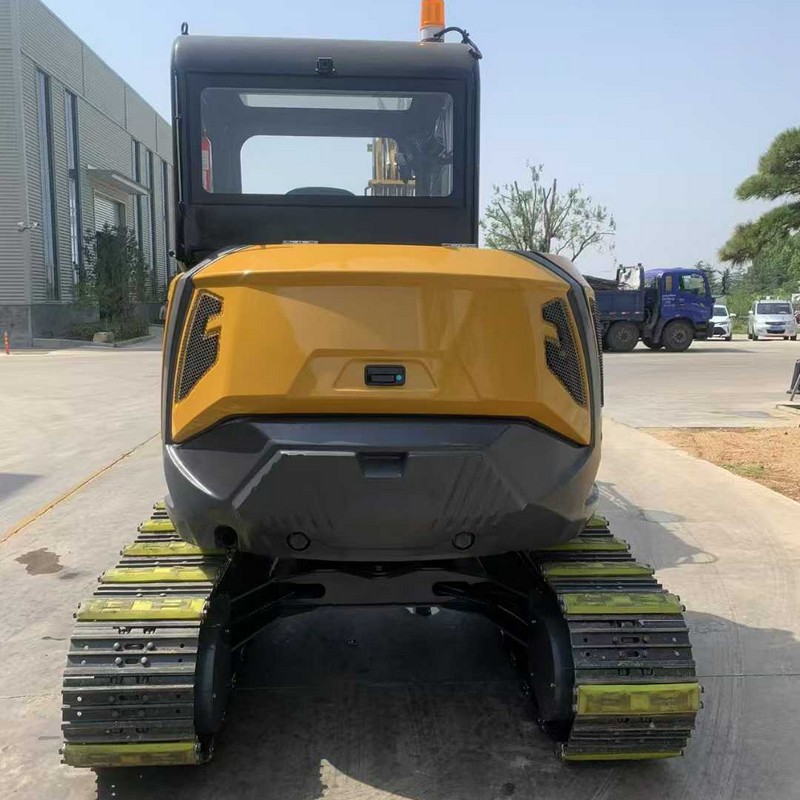

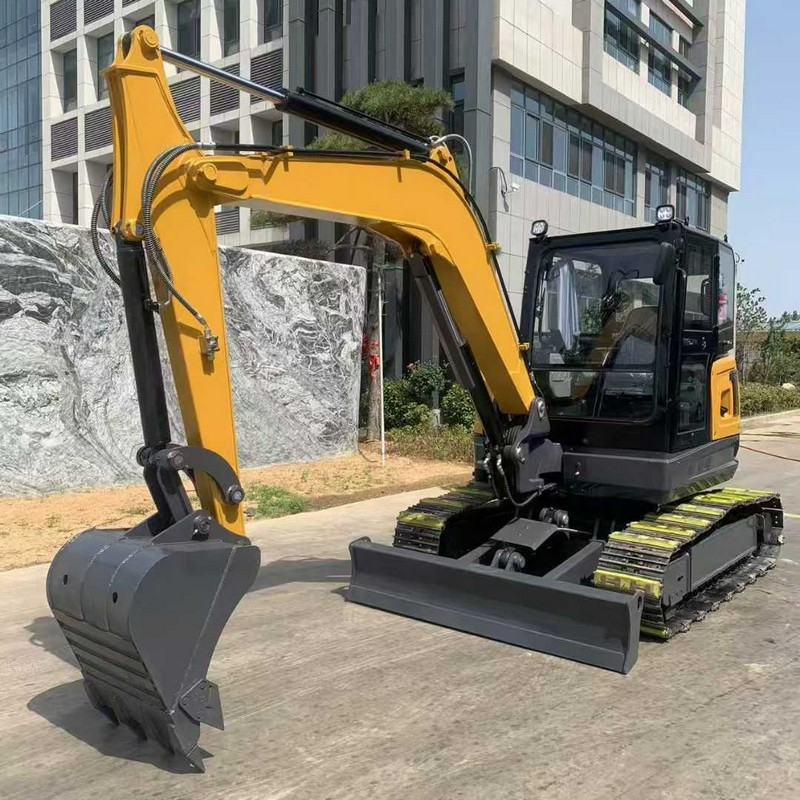

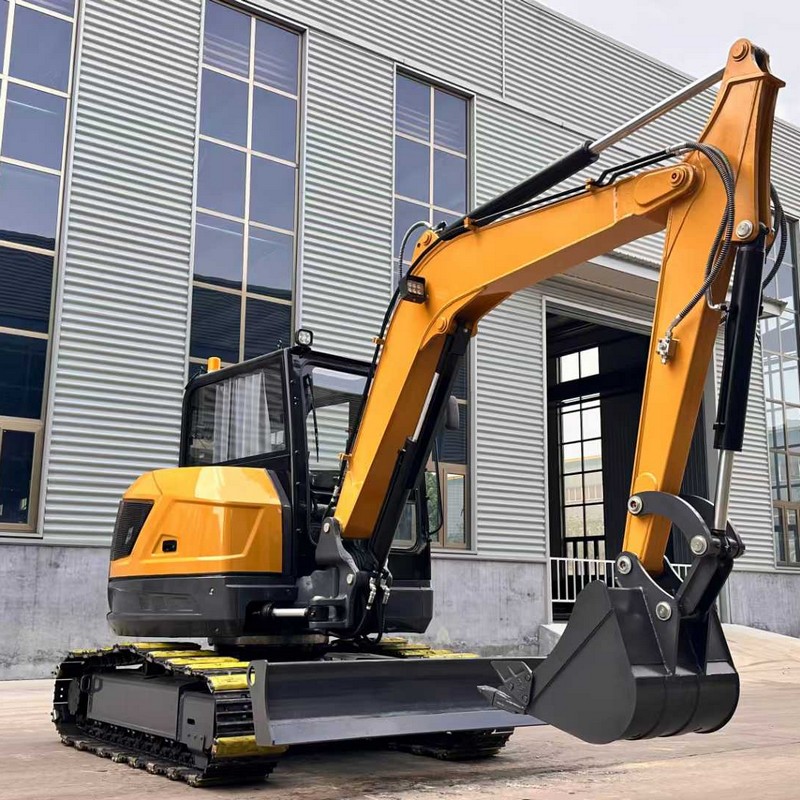

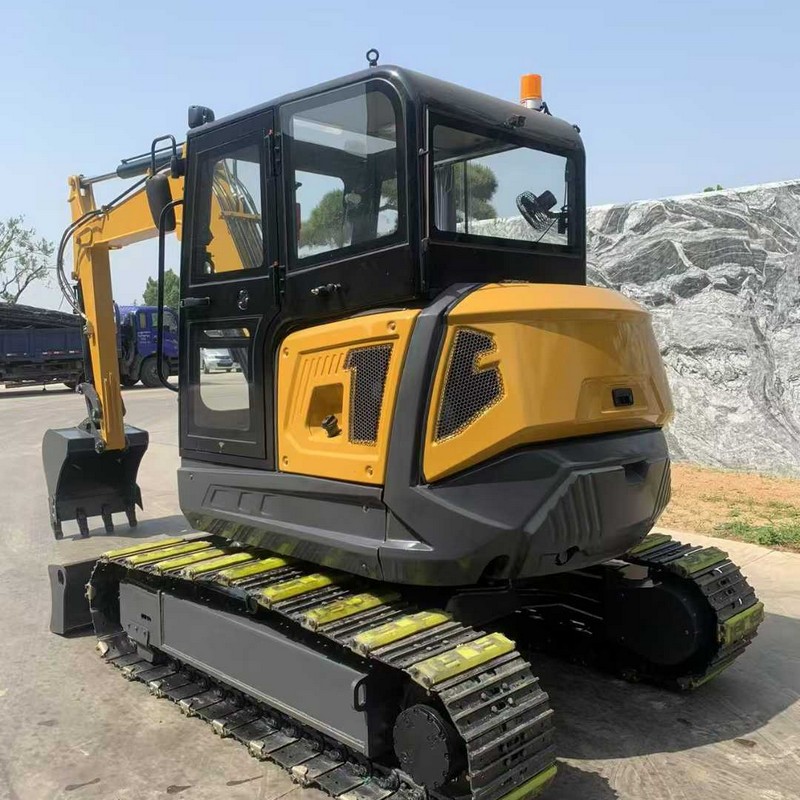

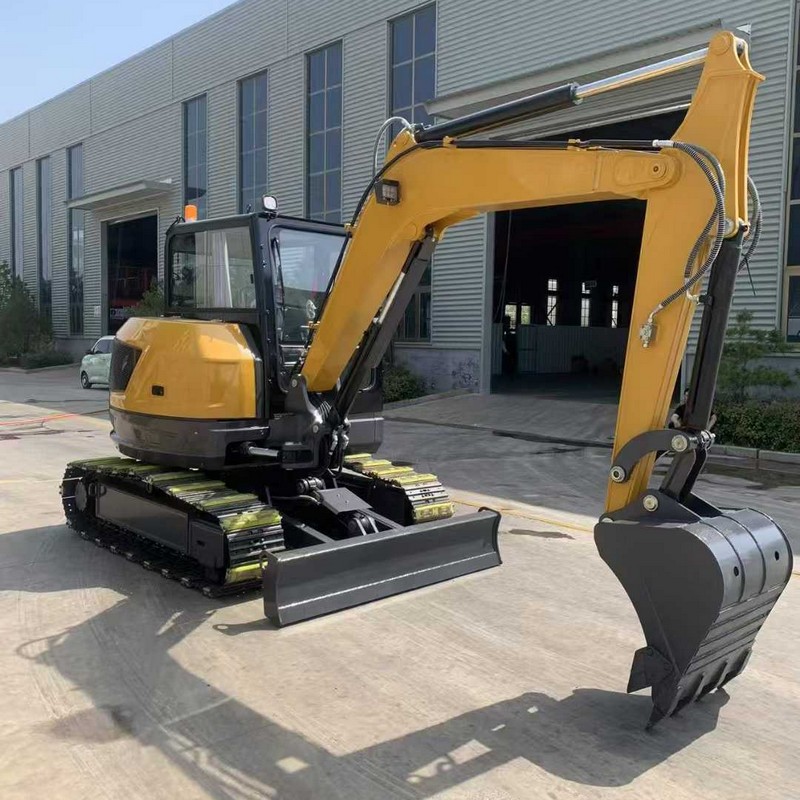

Crawler Excavator
This compact mini excavator breaks through spatial limitations with its ultra-compact design. Its body width is equivalent to that of a standard doorway, allowing it to freely enter and exit basements, elevator shafts, and even indoor spaces.
The short tail swing radius, combined with a foldable dozer blade, delivers astonishing flexibility for delicate operations such as landscaping and pipeline maintenance, enabling precise "dig-where-you-point" control with ease.
Choosing this mini excavator means choosing a flexible and efficient construction partner.
| SPECIFICATION | Operation Weight | t | 6.6ton |
| Engine Brand | Yanmar494/Yanmar498/KUBOTA V2607 | ||
| Rated Power | Kw | 36.3/42.4/42.5 | |
| Digging Bucket Capacity | cbm | 0.23 | |
| Bucket Width | mm | 700 | |
| Traveling Motor | LKC | ||
| Travel Speed | km/h | 2.2/4.2 | |
| Swing Motor | Lonking | ||
| Swing Speed | r/min | 12 | |
| Hydraulic System | Plunger Pump | ||
| Body Swing Radius | mm | 1180 | |
| Body Swing Angel | deg | 360 | |
| Boom Swing Angel(L/R) | deg | 45/55 | |
| Max. Grade Ability | deg | 35 | |
| Fuel Tank | L | 30 | |
| Hydraulic Fluid Chamber | L | 41 | |
| MAIN DIMENSIONS | Overall Length | mm | 5834 |
| Overall Width | mm | 2000 | |
| Overall Height | mm | 2570 | |
| Track Width | mm | 400 | |
| Track Length | mm | 2640 | |
| Body Width | mm | 1780 | |
| WORKING RANGE | Max. Digging Radius | mm | 6044 |
| Max Digging Depth | mm | 2845 | |
| Max. Digging Height | mm | 5157 | |
| Max. Unloading Height | mm | 3692 | |
| Min. Swing Radius | mm | 3022 | |
| Max. Digging Depth Of Dozer Blade | mm | 369 | |
| Max. Lifting Height Of Dozer Blade | mm | 253 |
High Efficiency & Versatility – One Machine, Endless Uses
Don’t be fooled by its small size—it features a modular quick-coupler system that supports seamless switching between various attachments like breakers, log grapples, and drilling devices. Whether breaking concrete pavements, clearing construction debris, transplanting saplings, or digging tree holes, it quickly transforms into a specialized tool to meet diverse construction needs. The optimized hydraulic system ensures swift and smooth responses, delivering operational efficiency far surpassing that of comparable models.
Eco-Friendly & Quiet – Enjoy Effortless Operation
Equipped with a low-emission engine and intelligent start-stop technology, it reduces fuel consumption and significantly cuts carbon emissions. Its operational noise is controlled at industry-leading levels, making it ideal for environmentally sensitive areas like schools and hospitals. A unique exhaust after-treatment system further purifies the air, ensuring operators and nearby residents share a fresh working environment.
Robust & Durable – Consistent Quality
Core structural components are made of high-strength alloy steel, with critical welds inspected via ultrasonic testing to guarantee exceptional load-bearing capacity and impact resistance. Dust-proof sealing design effectively blocks sand and debris intrusion, extending the lifespan of hydraulic components. Before leaving the factory, each unit undergoes durability testing that simulates real-world conditions—from scorching heat to freezing cold—to comprehensively validate its reliability.
Global Support – Worry-Free Service
From Chinese factories to job sites worldwide, we provide one-stop cross-border logistics solutions: professional anti-vibration packaging protects against long-distance transport shocks. We offer a 7×24-hour response commitment, with strategically stocked common parts ensuring zero-wait repairs. Regular inspection reminders proactively identify potential issues, safeguarding your equipment.
