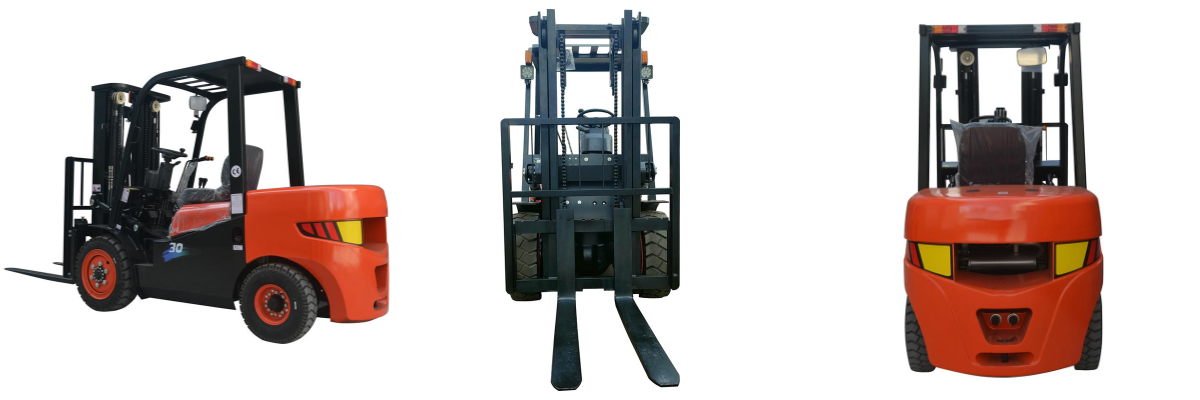

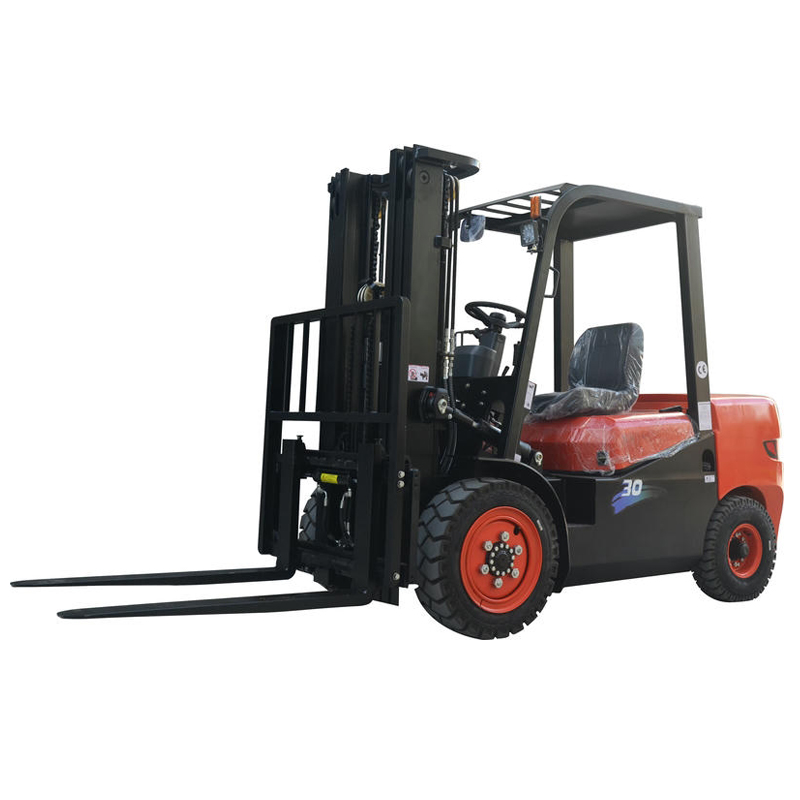

Diesel Forklift Truck
Designed based on ergonomic principles for enhanced operator comfort.
Lifting mechanism features a wide-vision mast for improved visibility.
Large-capacity water tank ensures effective heat dissipation.
Optimized layout of hydraulic and pipeline systems minimizes pressure loss and prevents overheating.
Integrated stamped safety frame offers superior protection for the operator.

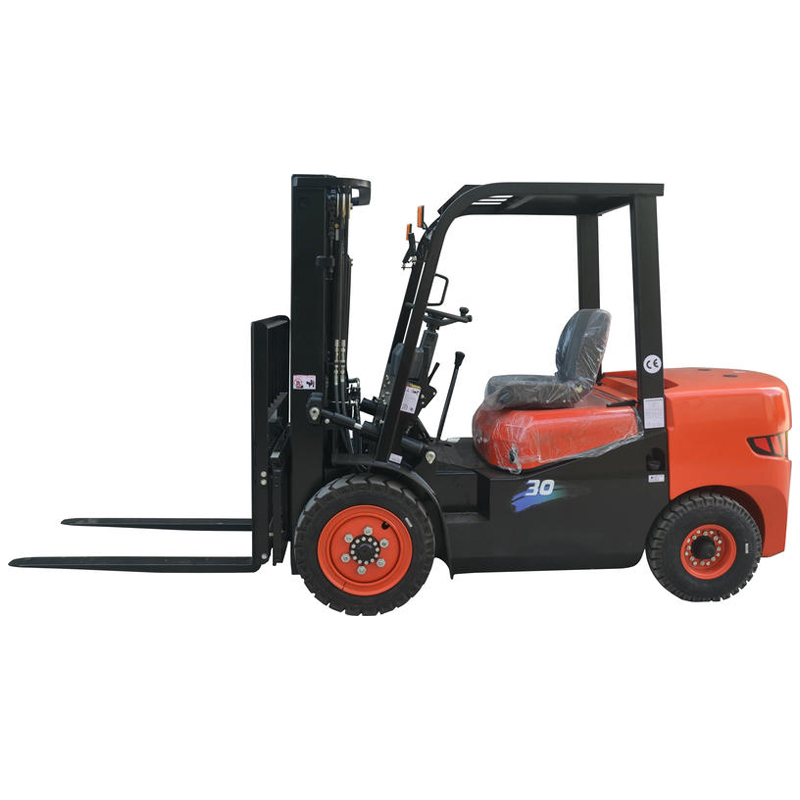

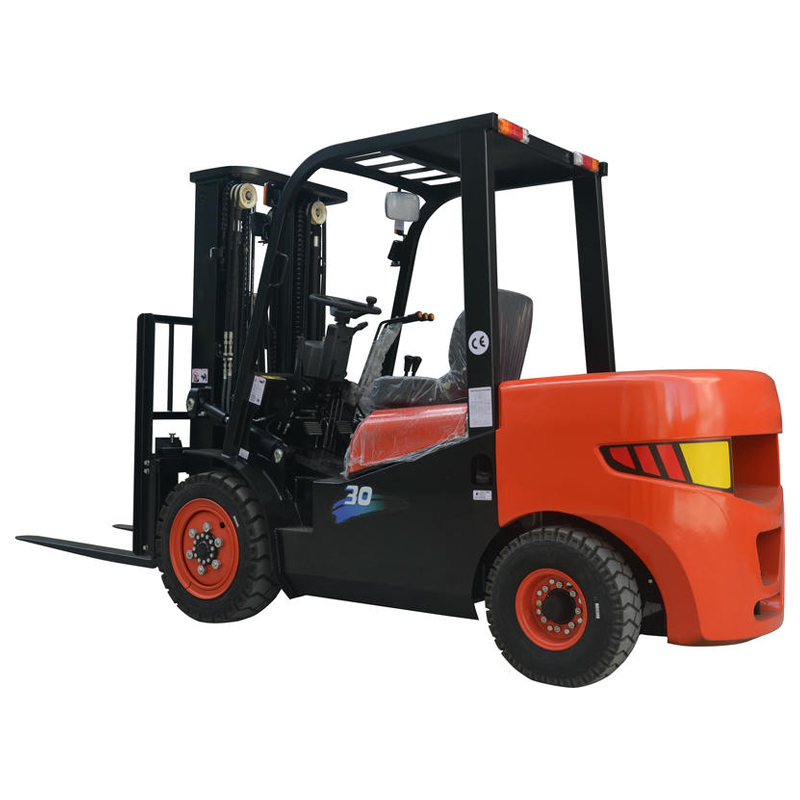

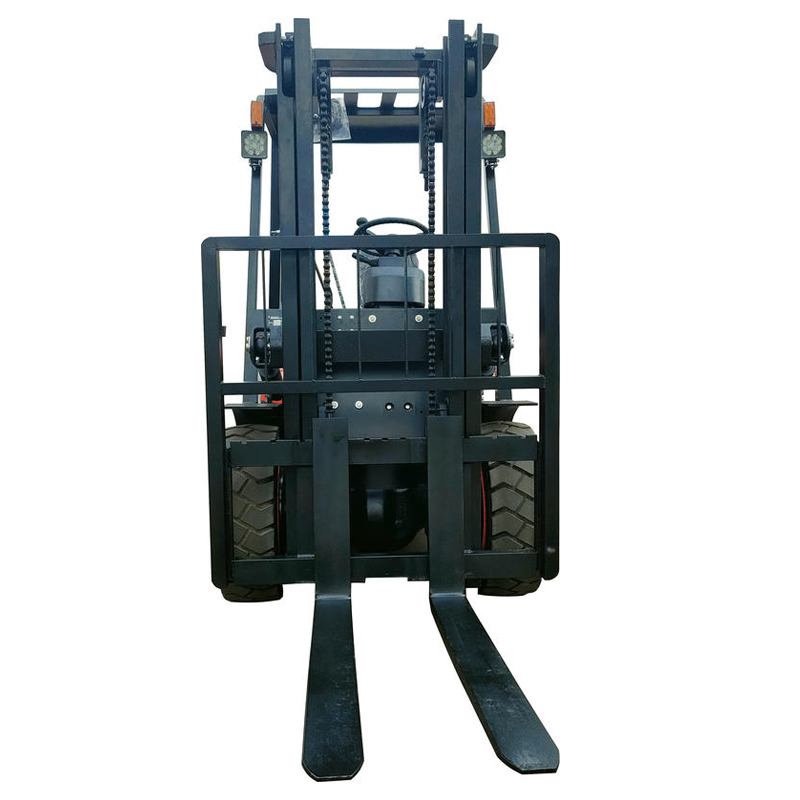

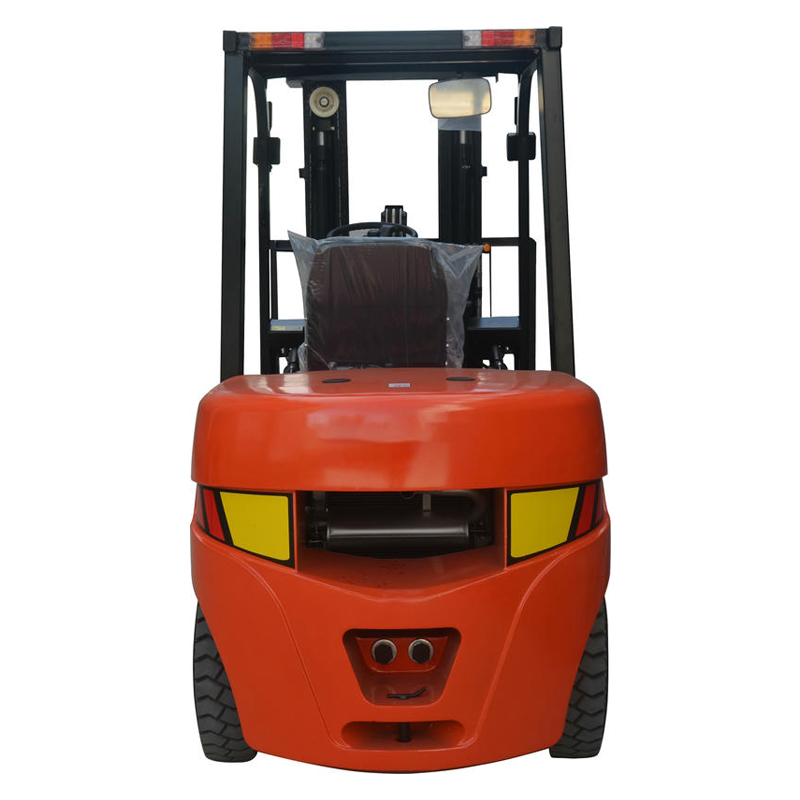

The TIGLIFT CPC30/CPCD30 diesel counterbalanced forklift features an advanced design and is powered by reputable domestic-brand engines and gearboxes, delivering both strong performance and fuel efficiency. Its body and mast are constructed from high-strength steel, ensuring optimal safety for both the vehicle and the operator. The entire system is precisely calibrated to maximize productivity while minimizing operating costs, helping customers achieve greater profitability. Certified to ISO9001 and CE standards, this model offers reliable quality and exceptional cost-effectiveness.
Product Parameter
Model | CPC30 | CPCD30 | ||
Performance Parameters | Rated Capacity | kg | 3000 | 3000 |
Load Center | mm | 500 | 500 | |
Power Type | Diesel | Diesel | ||
Max.Lifting Speed (No-Load/Full-Load) | mm/s | 450∕440 | 450∕440 | |
Max.Driving Speed (Full-Load/No-Load) | km/h | 18∕20 | 18∕20 | |
Max.Towing(Full-Load/No-Load) | KN | 15.5∕10.5 | 15.5∕10.5 | |
Grade Ability (Full-Load/No-Load) | (%) | 15/20 | 15/20 | |
Lifting Height | mm | 3000 | 3000 | |
Mast Stage | 2 | 2 | ||
Free Lift Height | mm | 80 | 80 | |
Mast Tilting Angle (Forword-Backward) (α∕β) | Deg | 6∕12 | 6∕12 | |
Min.Tuming Radius | mm | 2530 | 2530 | |
Min.Right Angle Aisle Width | mm | 2050 | 2050 | |
Min.Ground Clearance | mm | 135 | 135 | |
Total Weight | kg | 4150 | 4150 | |

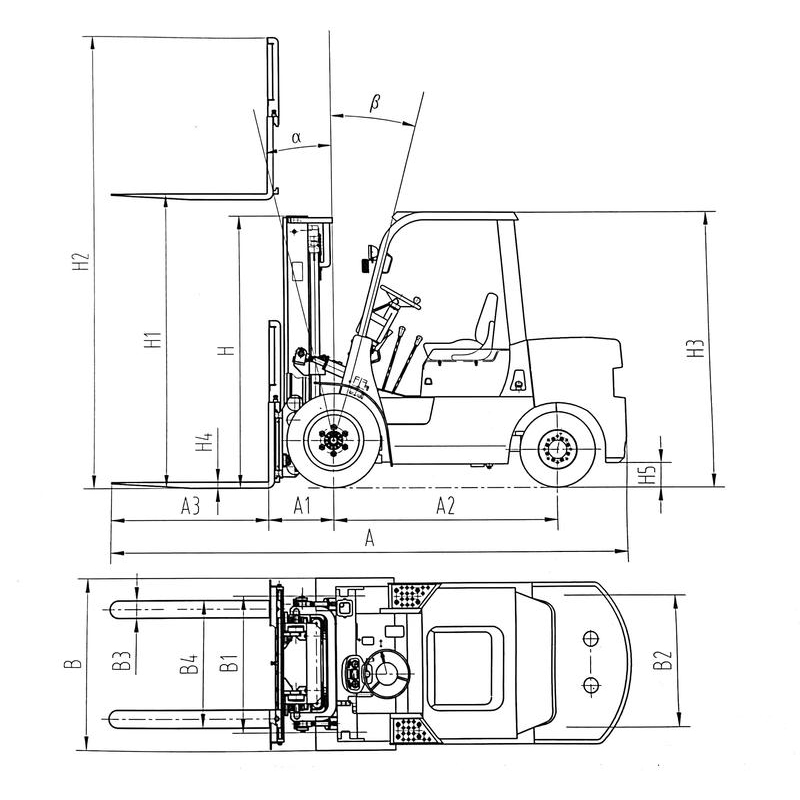

Dimension | Overall Length (Including Fork) (A) | mm | 4075 | 4075 |
Overall Length (Without Fork) | mm | 2855 | 2855 | |
Overall Width (B) | mm | 1230 | 1230 | |
Overall Height (Mast Lowered) (H) | mm | 2110 | 2110 | |
Overall Height (Mast Extend) (H2) | mm | 4270 | 4270 | |
Overhead Guard Height | mm | 2105 | 2105 | |
Front Overhang (A1) | mm | 465 | 465 | |
Wheel Base (A2) | mm | 1760 | 1760 | |
Tread | Front Tread (B1) | mm | 1000 | 1000 |
Rear Tread (B2) | mm | 970 | 970 | |
Tyre | Front Wheel | 28*9-15 | 28*9-15 | |
Rear Wheel | 6.50-10 | 6.50-10 | ||
Fork | Fork Width (B3) | mm | 1220 | 1220 |
Fork Thickness (H4) | mm | 45 | 45 | |
Backrest Height | mm | 1225 | 1225 | |
Fork Length (A3) | mm | 1220 | 1220 | |
Engine | Engine Model | XINCHAI 4D29V41 | XINCHAI 4D29V41 | |
Rate Power | KW | 40 | 40 | |
Rotate Speed at Rate Power | rpm | 2650 | 2650 | |
Max.Torque | NM | 162 | 162 | |
Rotate Speed at Max.Torque | rpm | 1800～1900 | 1800～1900 | |
Emission | EuroⅡ | EuroⅡ | ||
Transmission | Mechanical Shift | Hydraulic Shift |

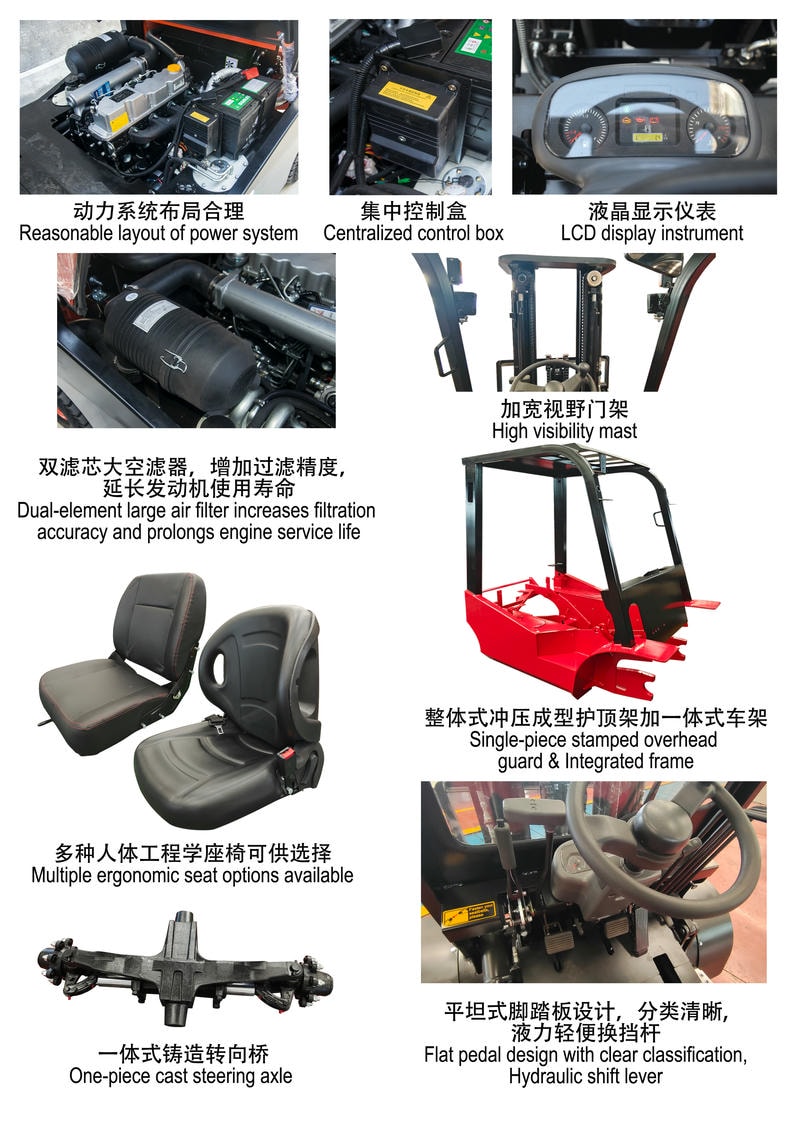

Product Advantage
Engineered with ergonomic principles for enhanced human-machine interaction.
Wide-view mast design improves visibility during lifting operations.
High-capacity water tank ensures efficient heat dissipation.
Optimized routing of hydraulic lines minimizes pressure loss and prevents overheating.
Single-piece stamped safety frame offers enhanced protection for the operator.
Delivery and After Service

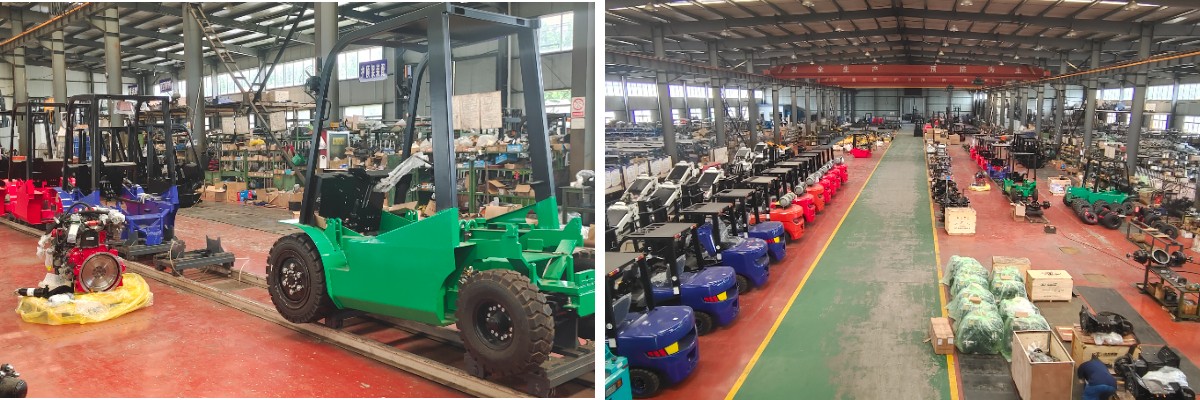

Over 20 years of expertise as a professional manufacturer
Efficiently assess customer needs and deliver tailored solutions
Prompt delivery and support from a dedicated customer service team
Swift response to any after-sales concerns
Fast identification of issues with timely, effective solutions
Complete spare parts supply system with emergency support availability
