Diesel Lift Truck
1.More durable than electric forklifts, this diesel model delivers exceptional toughness and stability for long-term heavy-duty work.
2.It is specially designed for high-intensity, continuous operation and performs reliably even under prolonged heavy loads.
3.With convenient diesel refueling, it ensures non-stop work efficiency and is perfectly suitable for field, wharf and remote areas without power supply.
4.It requires no extra investment in charging stations or related equipment, effectively lowering your initial investment cost.
5.The whole machine adopts professional anti-rust and anti-corrosion treatment, enhancing durability and greatly extending service life.
The 2-Ton Diesel Counterbalance Forklift, a robust material handling solution engineered for high-intensity operations in warehouses, container terminals, and construction sites.The 2-ton diesel forklift features a powerful turbo engine for high efficiency and low fuel consumption. Built with a reinforced mast and ergonomic controls, it excels in demanding warehouse and port applications. Contact us for details.
TECHNICAL SPECIFICATIONS | ||||
Performance | Model | CPC20/CPCD20 | ||
Rated Capacity | kg | 2000 | ||
Load Center | mm | 500 | ||
Power Type | Diesel | |||
Max. Lifting Speed (No-Load / Full-Load) | mm/s | 400 | ||
Max. Driving Speed (Full-Load / No-Load) | km/h | 17∕19 | ||
Max. Towing Capacity | kN | 14∕9 | ||
Gradeability (Full-Load / No-Load) | % | 15∕20 | ||
Lifting Height | (H1) | mm | 3000 | |
Free Lift Height | mm | 60 | ||
Mast Tilting Angle (Forward-Backward) | （°） | 6∕12 | ||
Min. Turning Radius | mm | 2450 | ||
Min.Right Angle Aisle Width | mm | 2050 | ||
Min. Ground Clearance | mm | 110 | ||
Dimensions | Overall Length (Including Fork) | (A) | mm | 3820 |
Overall Width | (B) | mm | 1160 | |
Overall Height (Mast Lowered) | (H) | mm | 2095 | |
Overall Height (Mast Extended) | (H2) | mm | 4080 | |
Overall Height to Overhead | (H3) | mm | 2095 | |
Front Overhang | (A1) | mm | 451 | |
Wheelbase | (A2) | mm | 1640 | |
Front Tread | (B1) | mm | 970 | |
Rear Tread | (B2) | mm | 970 | |
Tire | Front Wheel | mm | 7.00-12 | |
Rear Wheel | mm | 6.00-9 | ||
Fork | Fork Width | (B3) | mm | 122 |
Fork Thickness | (H4) | mm | 40 | |
Backrest Height | mm | 1000 | ||
Fork Length | (A3) | mm | 1070 | |
Engine | Engine Model | Xinchai C490BPG | ||
Rated Power | Kw | 40 | ||
Rotate Speed at Rate Power | rpm | 2650 | ||
Max. Torque | Nm | 162 | ||
Rotation Speed at Max. Torque | rpm | 1800～1900 | ||
Type of Power Shift | Mechanical∕Hydraulic | |||
Self-Weight | kg | 3050 | ||
Optional

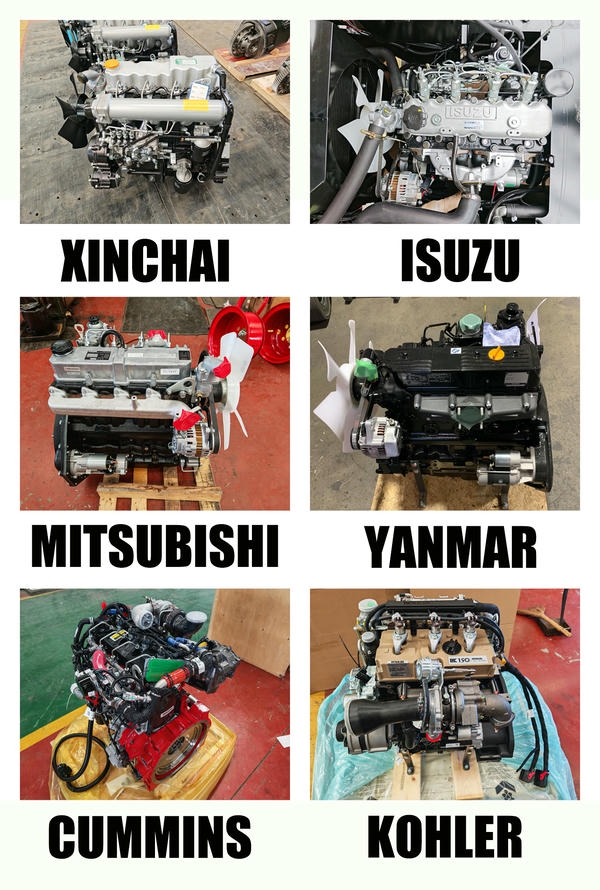

1. Engine：
•Standard: Xinchai
2. Mast：
•Standard: 2-stages 3000mm
•Optional: 2-stages and 3-stages full free 4500mm-7500mm mast
3. Fork：
•Standard 1220mm fork
•Optional 1370mm, 1520mm, 1670mm and 1820mm forks;
4. Pneumatic tire and solid tire both available
5. All kinds of forklift attachments available
1. Robust Powertrain & Fuel Efficiency
At the heart of this forklift lies an internationally renowned diesel engine. Unlike gasoline engines, the turbocharged diesel power unit delivers superior torque and sustained performance, making it ideal for heavy loads and long shifts. Coupled with an advanced electronic fuel injection system, it reduces fuel consumption by up to 15% without compromising on power, ensuring lower operating costs for your business.
2. Heavy-Duty Structure & Stability
Built for endurance, the G-Series features a reinforced mast and optimized counterweight design. This ensures exceptional stability when lifting 2,000 kg loads to heights of 3 meters or more. The wide-base solid tires offer excellent grip and puncture resistance, allowing seamless transitions between rough outdoor terrain and smooth indoor concrete floors.
3. Ergonomic Design & Safety
Operator comfort directly impacts productivity. That is why we designed the cabin with a full-suspension seat, adjustable steering column, and automotive-style control levers to minimize fatigue during extended shifts. For maximum safety, the forklift comes standard with an OPS (Operator Presence Sensor) system, which cuts hydraulic power if the operator leaves the seat, along with reverse alarms and overhead guards.
4. Customization & Global Support
Understanding the diverse needs of foreign trade clients, we offer OEM customization services, including side shifters, fork positioners, and paper roll clamps. We also support multi-language dashboards and provide comprehensive technical documentation. Backed by our global after-sales service network, we guarantee a 24-hour response time for technical inquiries.
Choose the 2-Ton Diesel Forklift—choose a reliable partner dedicated to powering your supply chain.
