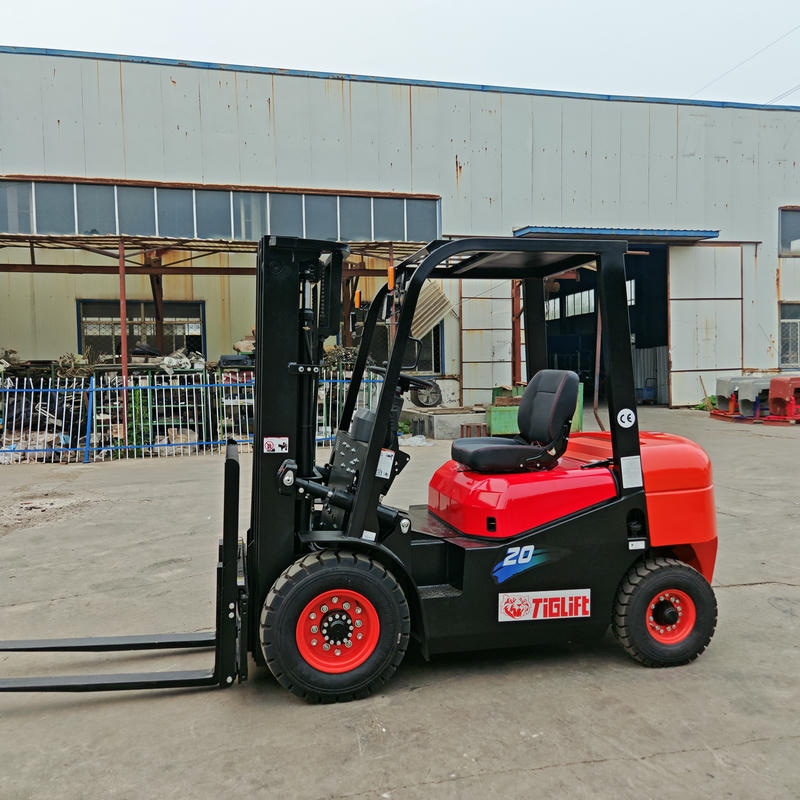

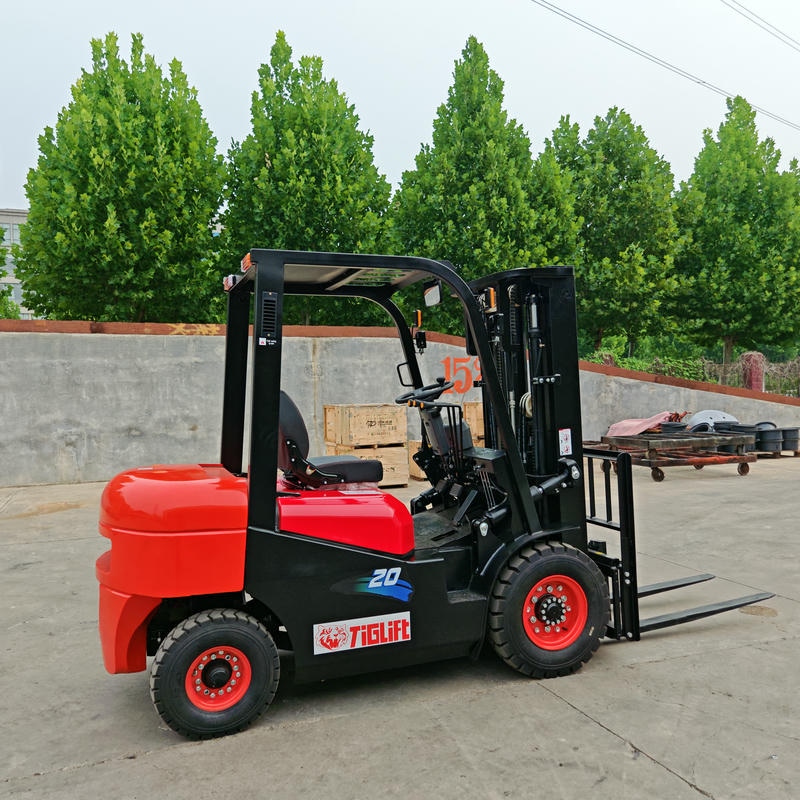

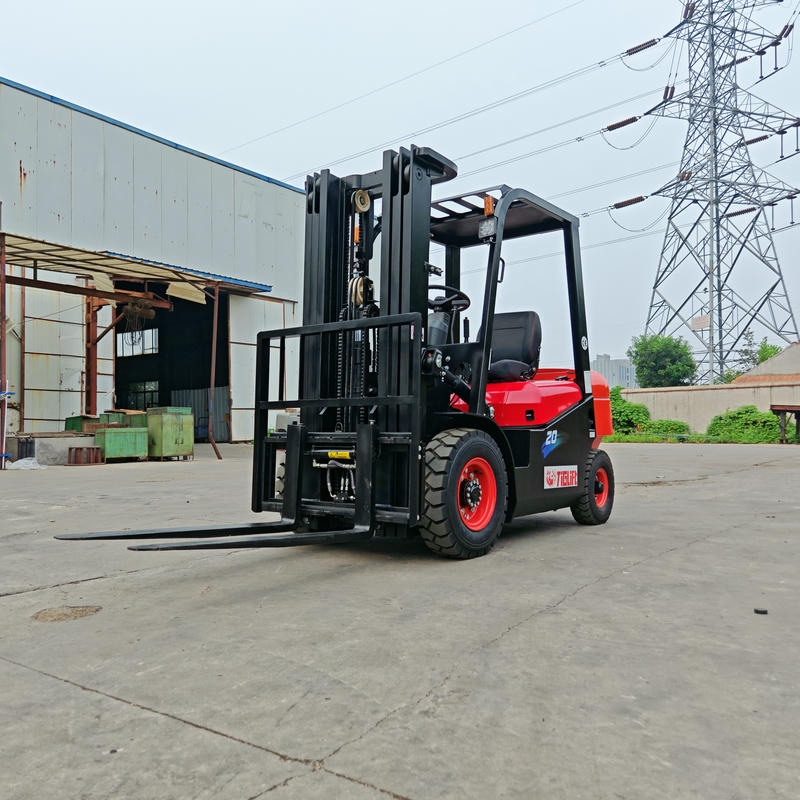

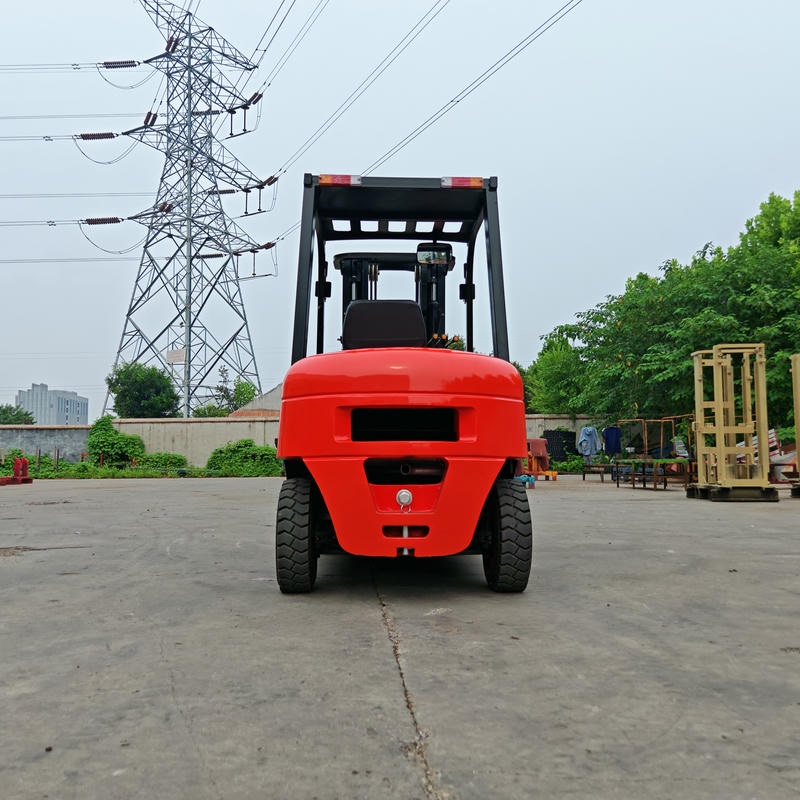

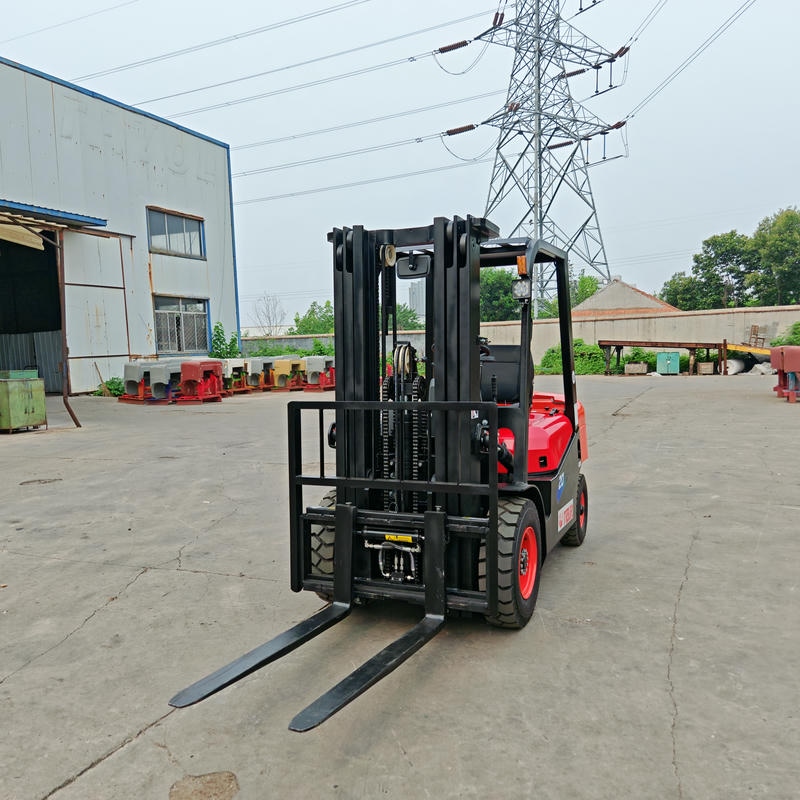

2 Ton Forklift

Operating costs are reduced by 35%, as fuel is more economical than electricity;

There is no hassle with battery management, saving time and effort;

The engine is highly reliable with an extremely low failure rate;

Fully sealed bearings minimize wear and tear.


Contact Now E-Mail Telephone WhatsApp
Product Details

For night operations, diesel forklifts are equipped with more thoughtful configurations — standard LED work lights (with high brightness and long service life) illuminate the forks and goods; the cab dome light provides internal lighting; reflective signs enhance visibility at night; an optional low-noise mode reduces interference to the surrounding environment.

Designed specifically for modern warehousing, it features powerful performance with excellent energy consumption control, enabling long hours of continuous operation without efficiency loss. The fork lifting is stable and precise, and when paired with a wide-visibility cockpit, it significantly improves cargo stacking (up to 6 meters) and handling efficiency. The four-wheel drive system adapts to various surfaces both inside and outside the warehouse (concrete/epoxy floors/slightly bumpy roads), with flexible steering and a small minimum turning radius, making it suitable for operation in narrow aisles. Maintenance is convenient, as key components (such as filters and oil filler ports) are centrally arranged, requiring only 15 minutes for daily inspections. The cab boasts an excellent ergonomic design with adjustable seats, ensuring less fatigue during long hours of operation.

Product Parameter

2t Diesel Forklift Overview Drawings

TECHNICAL SPECIFICATIONS

Performance

Model



CPC20/CPCD20

Rated Capacity


kg

2000

Load Center


mm

500

Power Type



Diesel

Max. Lifting Speed (No-Load / Full-Load)


mm/s

400

Max. Driving Speed (Full-Load / No-Load)


km/h

17∕19

Max. Towing Capacity


kN

14∕9

Gradeability (Full-Load / No-Load)


%

15∕20

Lifting Height

(H1)

mm

3000

Free Lift Height


mm

60

Mast Tilting Angle (Forward-Backward)


(°)

6∕12

Min. Turning Radius


mm

2450

Min.Right Angle Aisle Width


mm

2050

Min. Ground Clearance


mm

110

Dimensions

Overall Length (Including Fork)

(A)

mm

3820

Overall Width

(B)

mm

1160

Overall Height (Mast Lowered)

(H)

mm

2095

Overall Height (Mast Extended)

(H2)

mm

4080

Overall Height to Overhead

(H3)

mm

2095

Front Overhang

(A1)

mm

451

Wheelbase

(A2)

mm

1640

Front Tread

(B1)

mm

970

Rear Tread

(B2)

mm

970

Tire

Front Wheel


mm

7.00-12

Rear Wheel


mm

6.00-9

Fork

Fork Width

(B3)

mm

122

Fork Thickness

(H4)

mm

40

Backrest Height


mm

1000

Fork Length

(A3)

mm

1070

Engine

Engine Model



Xinchai C490BPG

Rated Power


Kw

40

Rotate Speed at Rate Power


rpm

2650

Max. Torque


Nm

162

Rotation Speed at Max. Torque


rpm

1800~1900


Type of Power Shift



Mechanical∕Hydraulic


Self-Weight


kg

3050

Optional

1. Engine:

•Standard: Xinchai, Quanchai

•Optional: Isuzu (Japan), Mitsubishi (Japan), Nissan (Japan), YANMAR(Japan), Kohler (USA), Commins (USA)

2. Mast:

•Standard: 2-stages 3000mm

•Optional: 2-stages and 3-stages full free 4500mm-7500mm mast

3. Fork:

•Standard 1220mm fork

•Optional 1370mm, 1520mm, 1670mm and 1820mm forks;

4. Pneumatic tire and solid tire both available

5. All kinds of forklift attachments available

Why TIGLIFT Diesel Forklift

With 20 years of focus on industrial vehicle manufacturing, the factory is equipped with intelligent production lines and an automated painting workshop (with VOC emissions 60% lower than national standards). The quality inspection center has obtained dual certifications of ISO 9001, and each forklift undergoes three rounds of inspections, including no-load testing and load stacking testing. The R&D team consists of multiple mechanical and electrical engineers, who regularly collect feedback from global customer enterprises to optimize designs.


Delivery Photos

diesel forklift shipment photo

diesel forklift shipment photo

diesel forklift shipment photo

diesel forklift shipment photo

We support direct shipping to multiple ports worldwide, offering flexible solutions for full container load (FCL) and less than container load (LCL). Before leaving the factory, the equipment undergoes full-body rust prevention treatment (with the chassis sprayed with an anti-corrosion coating), and vulnerable parts such as forks and hydraulic rods are fitted with protective sleeves. Cooperating international logistics providers cover sea freight (20-40ft containers), land transportation (China-Europe Railway Express), and air freight (for urgent orders). The entire process from the factory to the port is tracked, ensuring arrival at major global ports within 40 days.

After Service

We provide a 2-year or 2000-hour warranty (whichever comes first) for core components (engine, gearbox, hydraulic pump). A 48-hour response service is available, with a 24/7 remote technical support team that solves common faults through video guidance
