Double Pallet Fork

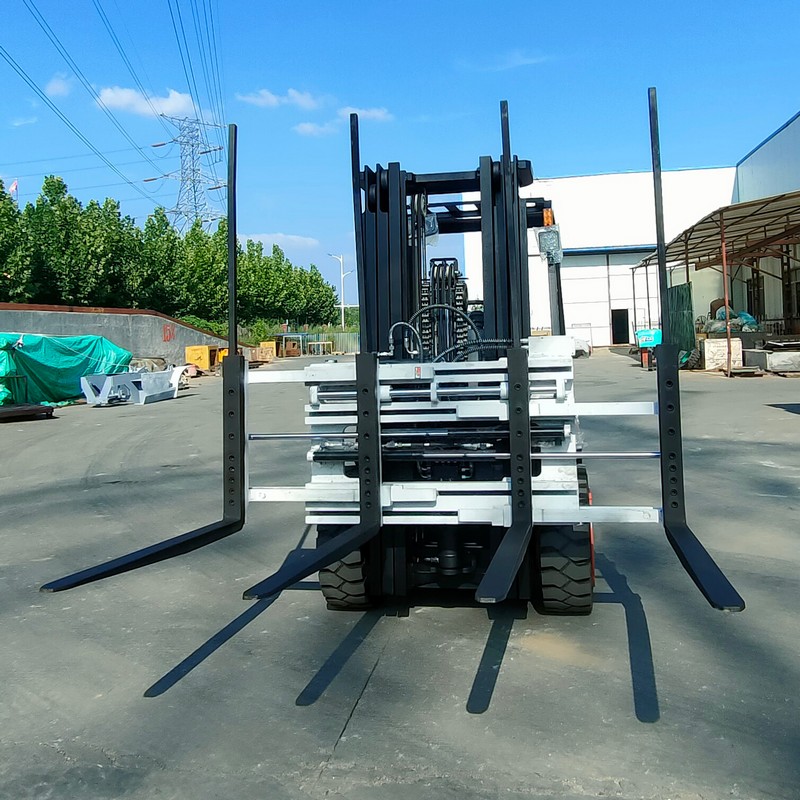

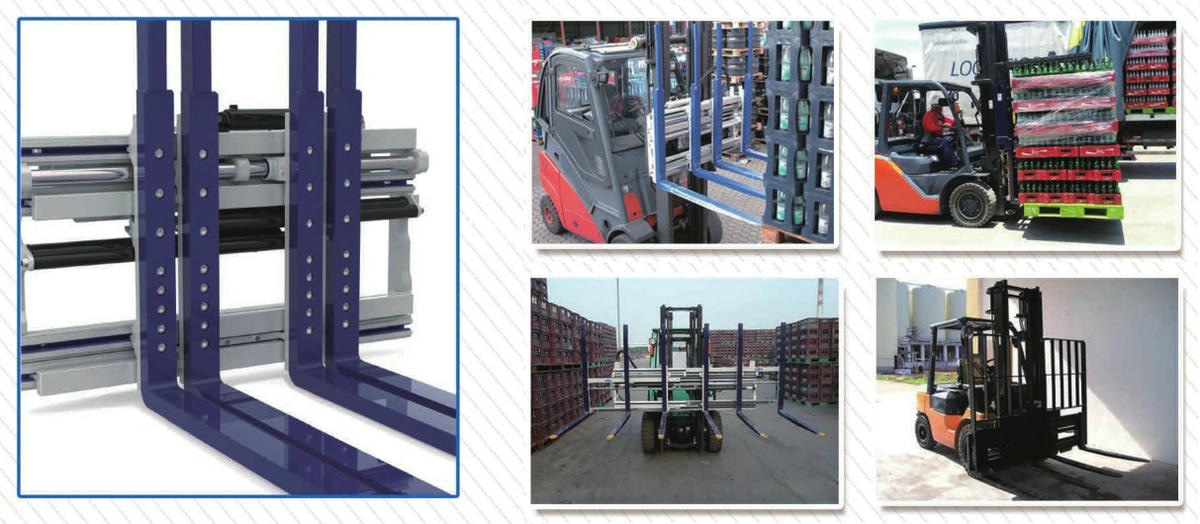

The double pallet fork is a specialized forklift attachment designed to simultaneously handle two standard pallets (or a single-layer dual-position pallet), significantly improving logistics efficiency by doubling the forklift's single-load capacity. It directly replaces traditional single pallet forks and is compatible with standard forklift fork carriages, widely used in high-frequency, large-volume pallet handling scenarios such as warehouse logistics, raw material/finished goods transfer in manufacturing, and e-commerce sorting.

Structural Components

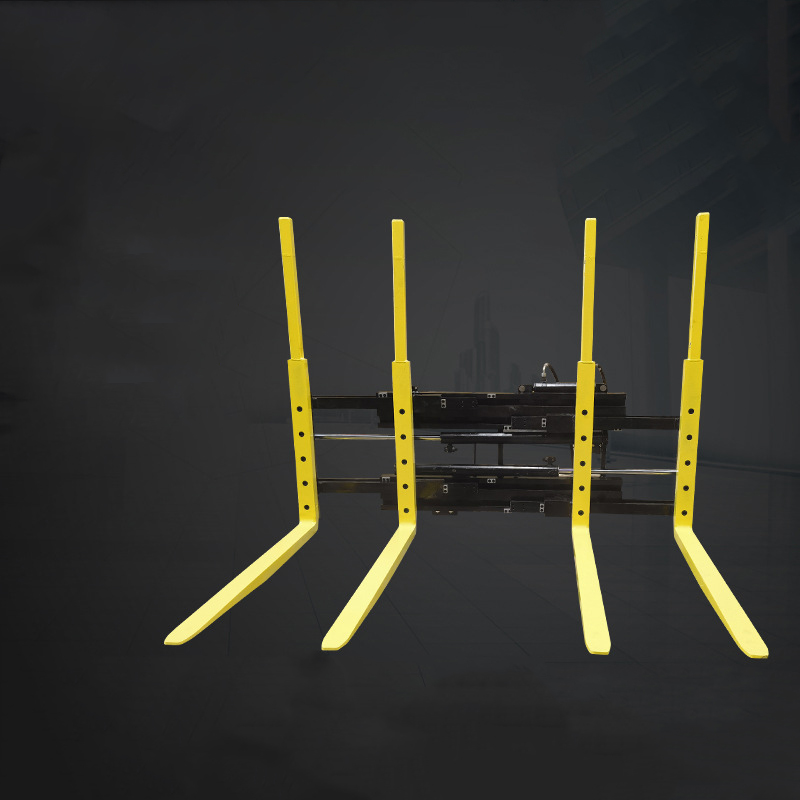

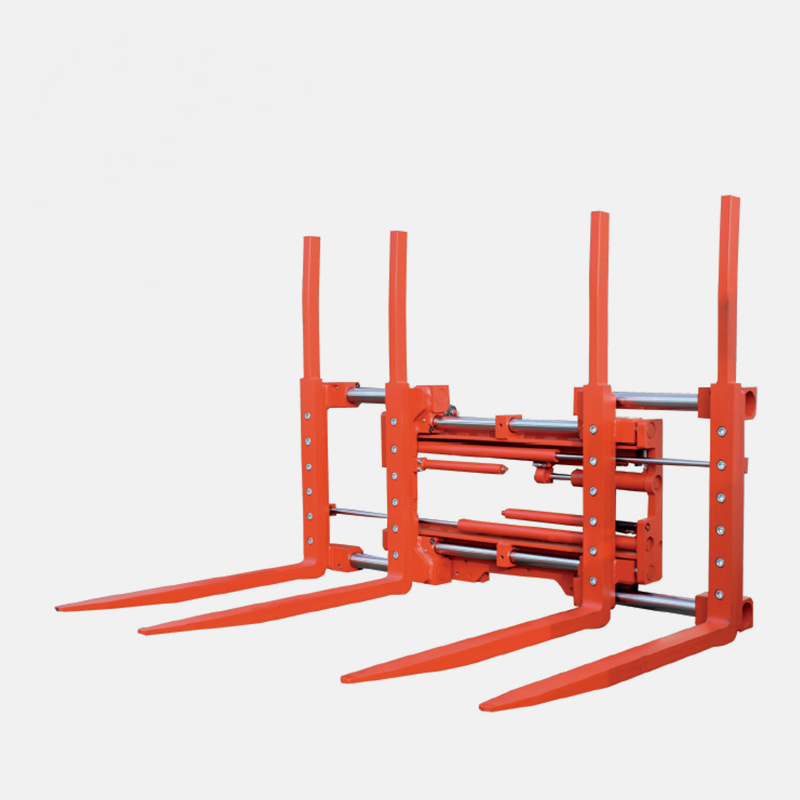

The core components of a double pallet fork include:

•Main Fork Blades: The primary load-bearing parts that directly carry the pallets. Typically made of two thickened, solid steel or high-strength alloy steel blades (length matched to standard pallets, commonly 1000–1500mm), with hardened surfaces (e.g., quenched) for enhanced wear resistance. The fork tips may feature anti-slip textures or rounded edges to prevent damage to pallet slots during insertion.

•Connection Frame: Mounts the double pallet fork onto the forklift’s original fork carriage, ensuring synchronization with the forklift’s lifting/tilting functions and transmitting hydraulic power (if the attachment requires additional drive). Some frames include reinforced ribs to improve overall structural strength, compatible with forklifts of different tonnages (e.g., 3-ton or 5-ton models).

•Reinforcement Crossbeam (optional in some models): Positioned between the two main fork blades, this horizontal beam connects the bottoms of the forks to enhance resistance to bending and tilting, preventing deformation or leaning when carrying heavy double pallets (especially metal pallets or fully loaded units).

•Positioning Devices (optional): Some models feature guide blocks or alignment pins on the fork sides or connection frame to ensure proper alignment when inserting double pallets, preventing displacement or slippage during transport.

Working Principle

Operation is largely consistent with traditional single pallet forks:

1. Pallet Insertion: The forklift operator aligns the double pallet fork’s tips with the bottom slots of two side-by-side standard pallets (or a single-layer dual-position pallet) and slowly inserts them to an appropriate depth (typically more than 2/3 of the pallet slot length for stability).

2. Lifting & Transport: The forks lift the pallets off the ground, allowing the forklift to move smoothly to the target location (e.g., shelves, delivery vehicles, or production lines). The forklift’s tilt function (forward/reverse) adjusts the pallet angle as needed for stacking or alignment.

3. Pallet Placement: Upon reaching the destination, the forks are lowered to the target height, and the tips are retracted to complete unloading.

Key Features

•High Efficiency: A single operation can transport two pallets (equivalent to twice the load of traditional forks), reducing forklift round trips and significantly improving logistics turnover (ideal for bulk handling of uniform pallets).

•Sturdy Structure: Thickened fork blades + reinforcement crossbeam ensure resistance to bending/twisting under full loads (typical capacity is 50%–70% of the forklift’s single-fork rated load; e.g., if the original single fork supports 2 tons, the double pallet fork can stably handle a combined load of 1.4–1.6 tons).

•Wide Compatibility: Fork blade dimensions match standard pallet slots (e.g., Euro pallets 1000×1200mm, US pallets 40×48 inches), compatible with wooden, plastic, or metal pallets without requiring modifications to existing pallets or racks.

•Simple Operation: Directly replaces the original fork carriage; no additional driver training is needed. Controlled via standard lifting/tilting handles, the operation process is identical to single pallet handling.

•Safety Assurance: Anti-slip fork tips + stable structure minimizes the risk of pallet slippage or tilting during transport, ensuring the safety of goods and operators.

The double pallet fork maximizes single-trip capacity through its "one-fork, two-pallets" design, offering a cost-effective solution to enhance the efficiency of palletized goods handling without altering the forklift’s core functions.
