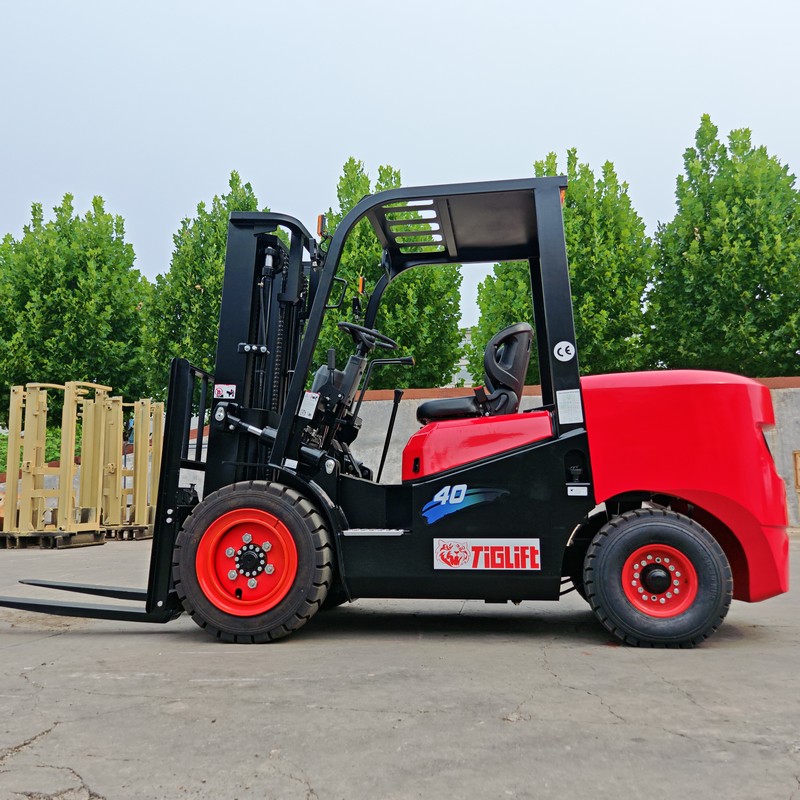

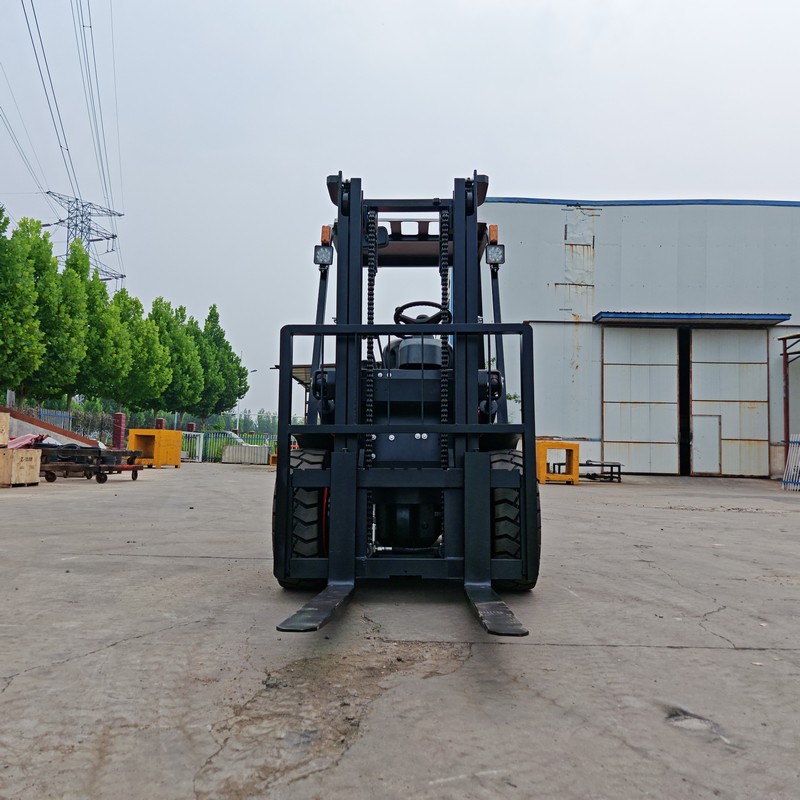

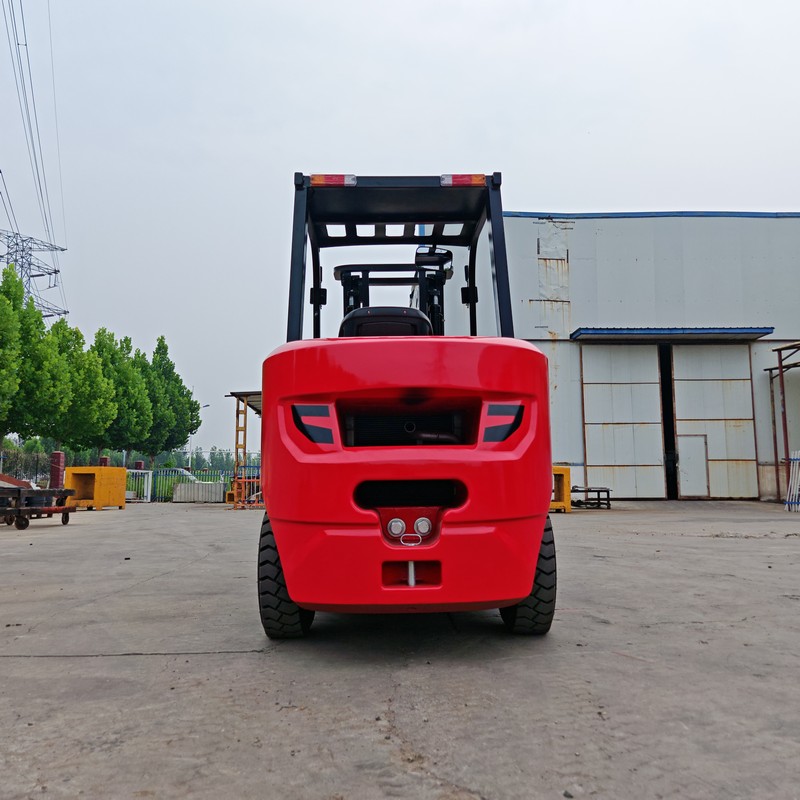

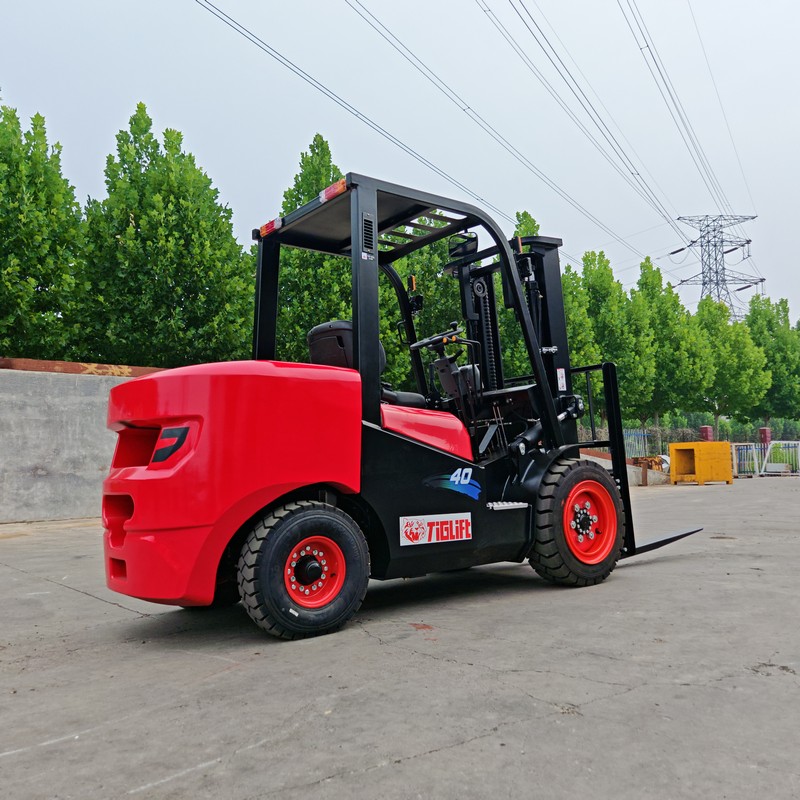

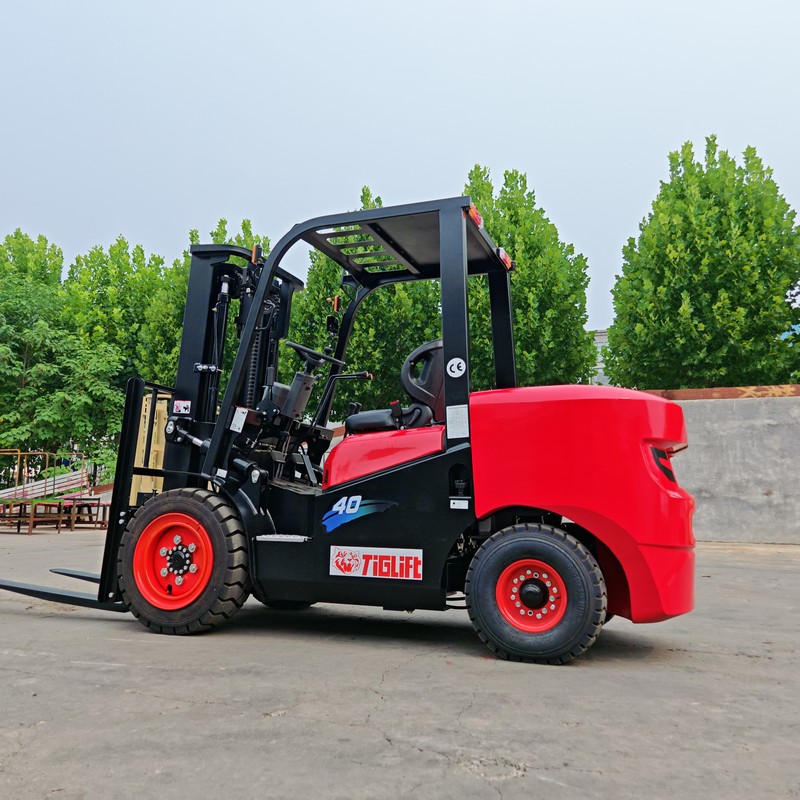

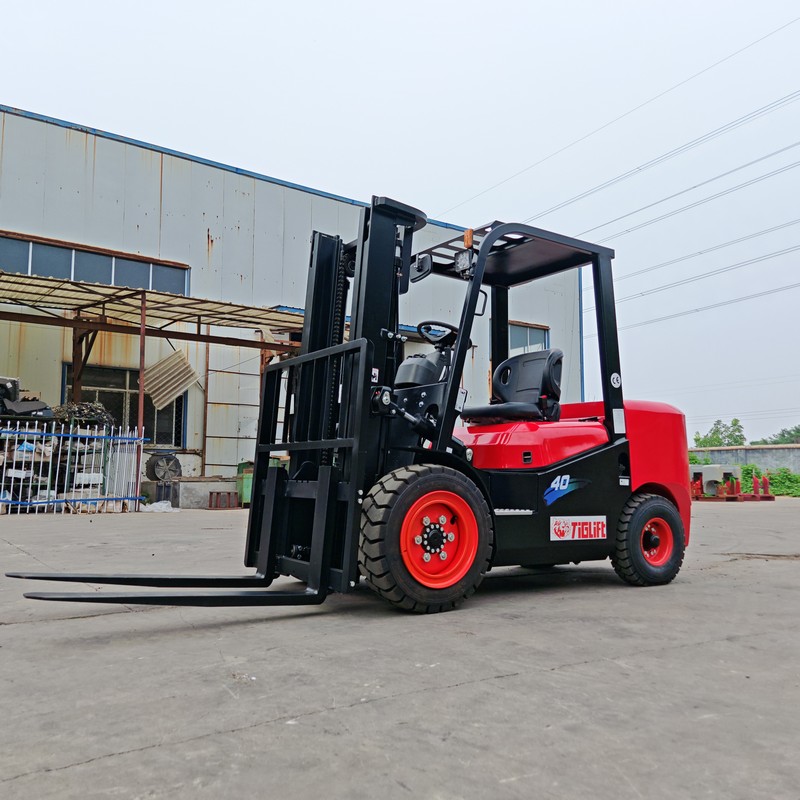

4 Ton Forklift
High-pressure common rail diesel engine, with 20% improved combustion efficiency;
Super strong endurance, suitable for long-time operation;
No battery replacement cost, more cost-effective for long-term use;
Dust-resistant environment, suitable for mining and building materials industries.
The reliability of diesel forklifts stems from mature technology - the engine adopts a high-pressure common rail fuel system, with 20% improved combustion efficiency and 30% lower failure rate than old-fashioned diesel engines; key components (such as crankshafts and connecting rods) have undergone strengthening treatment, with anti-fatigue life exceeding 10,000 hours; the entire vehicle's steel structure has undergone anti-rust treatment, ensuring no rust in humid environments for 5 years.
Product Parameter
TECHNICAL SPECIFICATIONS | |||||
Performance | Model | CPC40 | CPCD40 | ||
Rated Capacity | kg | 4000 | 4000 | ||
Load Center | mm | 500 | 500 | ||
Power Type | Diesel | Diesel | |||
Max. Lifting Speed (No-Load / Full-Load) | mm/s | 470∕420 | 470∕420 | ||
Max. Driving Speed (Full-Load / No-Load) | km/h | 18∕20 | 18∕20 | ||
Max. Towing Capacity | kN | 16.5∕11.5 | 16.5∕11.5 | ||
Gradeability (Full-Load / No-Load) | % | 15∕20 | 15∕20 | ||
Lifting Height | (H1) | mm | 3000 | 3000 | |
Free Lift Height | mm | 80 | 80 | ||
Mast Tilting Angle (Forward-Backward) | （°） | 6∕12 | 6∕12 | ||
Min. Turning Radius | mm | 2540 | 2540 | ||
Min.Right Angle Aisle Width | mm | 2050 | 2050 | ||
Min. Ground Clearance | mm | 135 | 135 | ||
Dimensions | Overall Length (Including Fork) | (A) | mm | 4170 | 4170 |
Overall Width | (B) | mm | 1230 | 1230 | |
Overall Height (Mast Lowered) | (H) | mm | 2130 | 2130 | |
Overall Height (Mast Extended) | (H2) | mm | 4270 | 4270 | |
Overall Height to Overhead | (H3) | mm | 2130 | 2130 | |
Front Overhang | (A1) | mm | 465 | 465 | |
Wheelbase | (A2) | mm | 1735 | 1735 | |
Front Tread | (B1) | mm | 1000 | 1000 | |
Rear Tread | (B2) | mm | 970 | 970 | |
Tire | Front Wheel | mm | 2.50-15 | 2.50-15 | |
Rear Wheel | mm | 6.50-10 | 6.50-10 | ||
Fork | Fork Width | (B3) | mm | 122 | 122 |
Fork Thickness | (H4) | mm | 50 | 50 | |
Backrest Height | mm | 1225 | 1225 | ||
Fork Length | (A3) | mm | 1220 | 1220 | |
Engine | Engine Model | C490BPG | C490BPG | ||
Rated Power | kW | 40 | 40 | ||
Rotate Speed at Rate Power | rpm | 2650 | 2650 | ||
Max. Torque | Nm | 162 | 162 | ||
Rotation Speed at Max. Torque | rpm | 1800～1900 | 1800～1900 | ||
Type of Power Shift | Mechanical | Hydraulic | |||
Self-Weight | kg | 4600 | 4600 | ||
Optional
1. Engine：
•Standard: Xinchai, Quanchai
•Optional: Isuzu (Japan), Mitsubishi (Japan), Nissan (Japan), YANMAR(Japan), Kohler (USA), Commins (USA)
2. Mast：
•Standard: 2-stages 3000mm
•Optional: 2-stages and 3-stages full free 4500mm-7500mm mast
3. Fork：
•Standard 1220mm fork
•Optional 1370mm, 1520mm, 1670mm and 1820mm forks;
4. Pneumatic tire and solid tire both available
5. All kinds of forklift attachments available
Why TIGLIFT Diesel Forklift？
Diesel Forklifts: Flexibility for Frequent Relocation Projects
For construction projects requiring frequent relocation (such as road maintenance and temporary warehouses), diesel forklifts stand out with remarkable flexibility:
No need for external power supply, enabling operation anywhere it goes.
Convenient refueling, which can be done via temporary on-site oil tanks.
Compact structure, suitable for narrow construction passages.
Optional small tires to adapt to soft-base roads.
Efficient Handling in Logistics Parks
In logistics parks, diesel forklifts excel in efficient handling:
Strong cruising ability, ensuring continuous operation.
Refueling takes only 5 minutes, 10 times faster than charging.
No battery management costs, resulting in long-term savings.
Wide-visibility gantries, enhancing operational safety.
Delivery Photos
Quality Assurance for Export Products
For all exported products, we provide a quality guarantee period of at least 12 months starting from the date of customer receipt (extended to 24 months for specially customized products through negotiation).
Within the Warranty Period: If product malfunctions occur due to production defects, material issues, or substandard craftsmanship, we will offer free repair, replacement, or full refund services (customers are required to provide fault certificates and original purchase documents).
Beyond the Warranty Period: We still provide lifelong technical support and prioritize handling repair requests at cost price.
