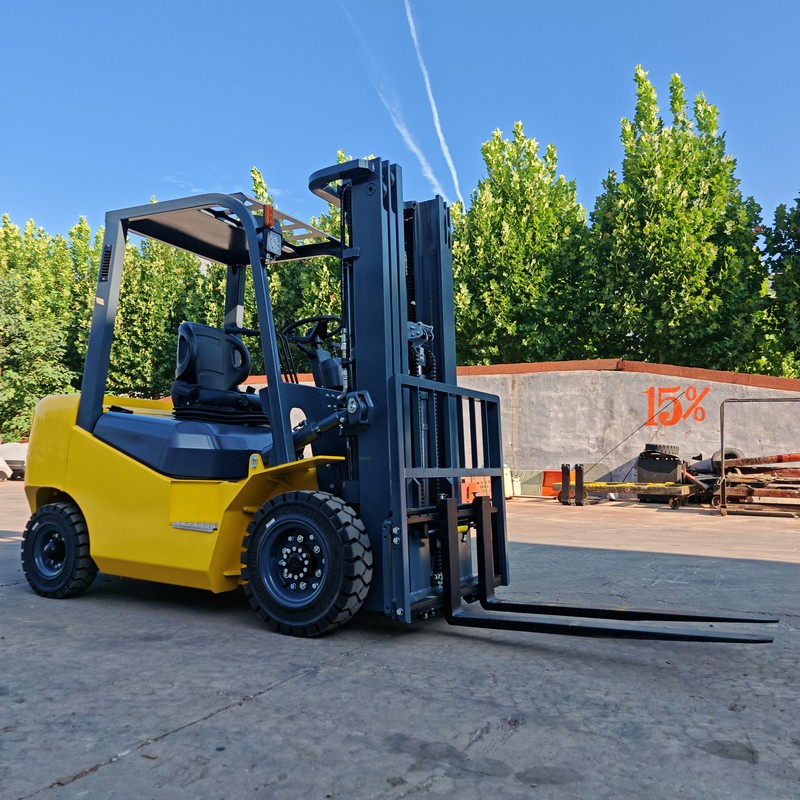

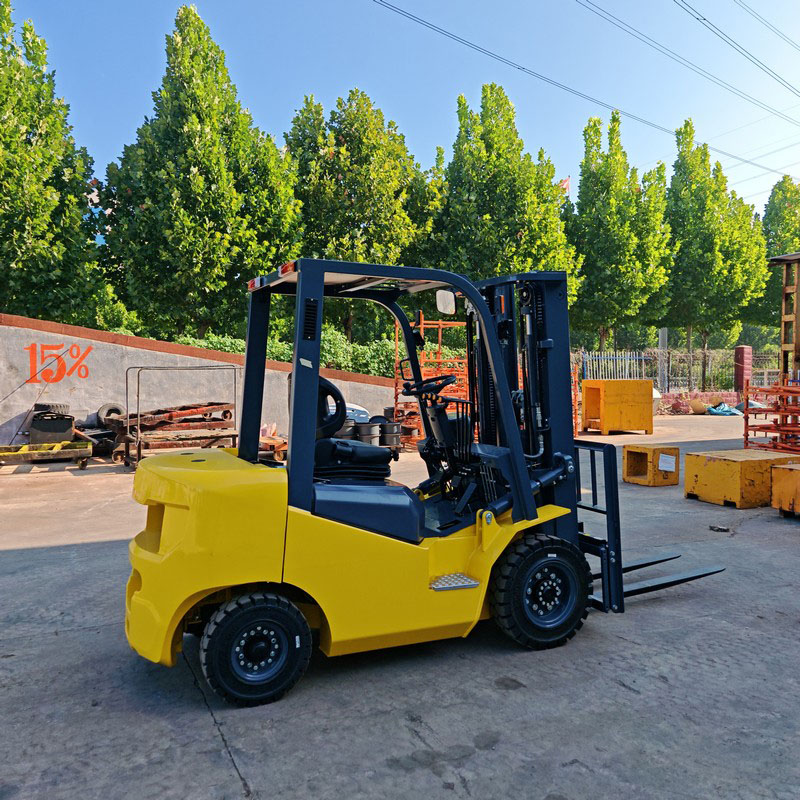

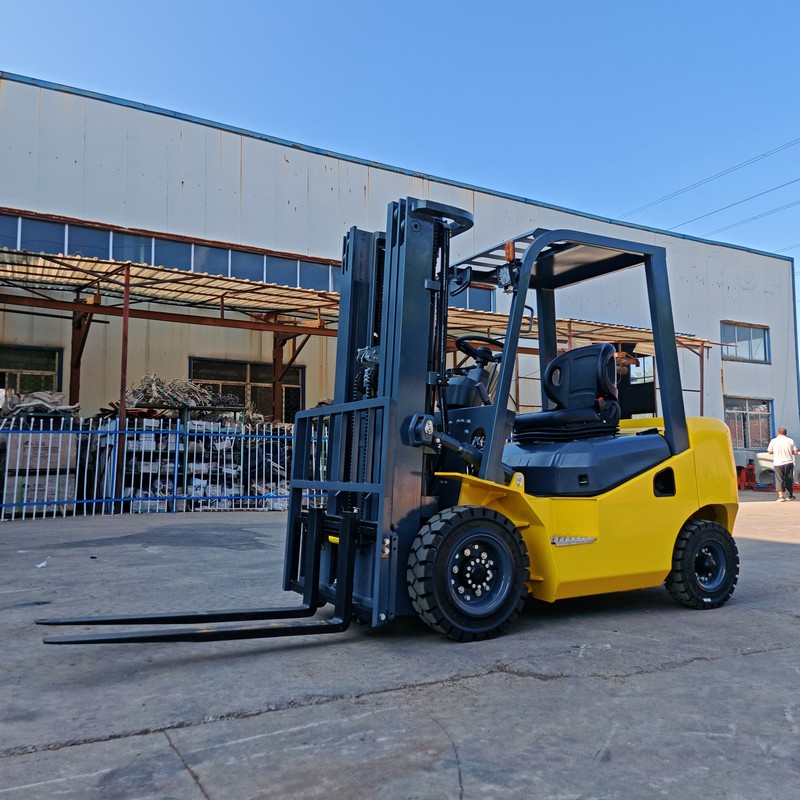

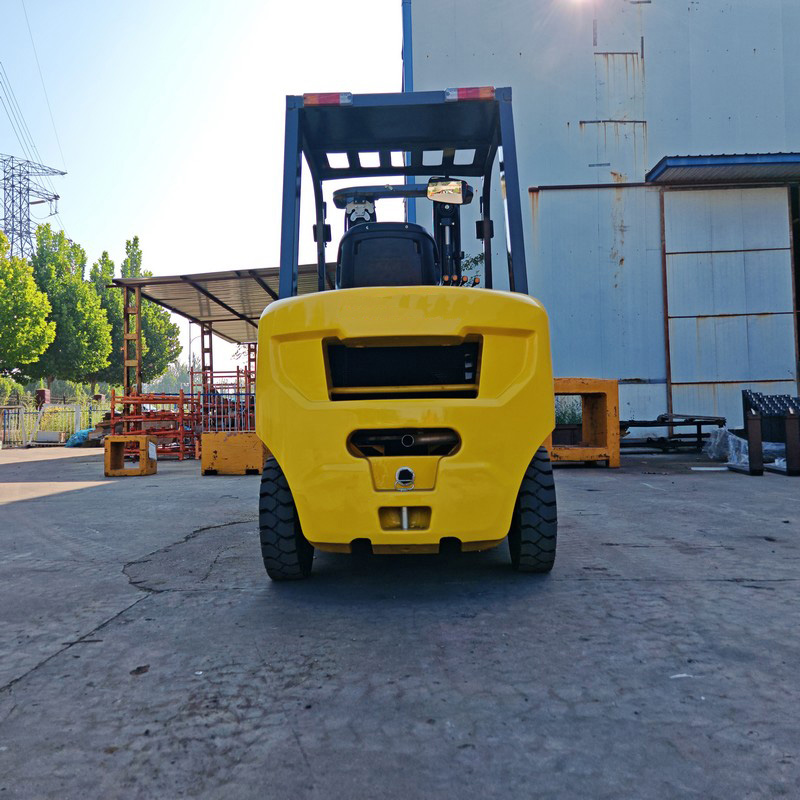

Forklift 2.5 Ton

1. Strong Power & Stable Loading: The diesel engine delivers high torque at low speeds, enabling a full-load climbing capacity of ≥15%. It efficiently handles tasks like pallet handling and stacking.

2. Long Endurance & No Limitations: A single refueling supports 8-12 hours of operation. No reliance on fixed power sources makes it suitable for outdoor, remote, or multi-shift operations.

3. Excellent Environmental Adaptability: Easy to start at low temperatures, with dustproof and waterproof design (two-stage air filter). It operates stably even in dusty or humid workshops.

4. Low Long-Term Costs: Diesel has high energy density; the forklift features simple maintenance and a long service life of 8-10 years.

5. Flexible Operation: Compact body with a small turning radius allows flexible steering in narrow aisles, balancing loading capacity and maneuverability.

Contact Now E-Mail Telephone WhatsApp
Product Details

The 2.5-ton diesel forklift is positioned as a "general-purpose mainstay model," balancing load capacity, efficiency, and environmental adaptability.

Main Parameter

2.5-ton diesel forklift

Performance

Model



CPC25

CPCD25

Rated Capacity


kg

2500

2500

Load Center


mm

500

500

Power Type



Diesel

Diesel

Max. Lifting Speed (No-Load / Full-Load)


mm/s

400

400

Max. Driving Speed (Full-Load / No-Load)


km/h

17∕19

17∕19

Max. Towing Capacity (Full-Load / No-Load)


kN

15∕10

15∕10

Gradeability (Full-Load / No-Load)


%

15∕20

15∕20

Lifting Height

(H1)

mm

3000

3000

Free Lift Height


mm

60

60

Mast Tilting Angle (Forward-Backward)


(°)

6∕12

6∕12

Min. Turning Radius


mm

2450

2450

Min.Right Angle Aisle Width


mm

2050

2050

Min. Ground Clearance


mm

110

110

Dimensions

Overall Length (Including Fork)

(A)

mm

3820

3820

Overall Width

(B)

mm

1160

1160

Overall Height (Mast Lowered)

(H)

mm

2095

2095

Overall Height (Mast Extended)

(H2)

mm

4080

4080

Overall Height to Overhead

(H3)

mm

2095

2095

Front Overhang

(A1)

mm

451

451

Wheelbase

(A2)

mm

1640

1640

Front Tread

(B1)

mm

970

970

Rear Tread

(B2)

mm

970

970

Tire

Front Wheel


mm

7.00-12

7.00-12

Rear Wheel


mm

6.00-9

6.00-9

Fork

Fork Width

(B3)

mm

122

122

Fork Thickness

(H4)

mm

40

40

Backrest Height


mm

1000

1000

Fork Length

(A3)

mm

1070

1070

Engine

Engine Model



C490BPG

C490BPG

Rated Power


Kw

40

40

Rotate Speed at Rate Power


rpm

2650

2650

Max. Torque


Nm

162

162

Rotation Speed at Max. Torque


rpm

1800~1900

1800~1900


Type of Power Shift



Mechanical

Hydraulic


Curb Weight


kg

3170

3170

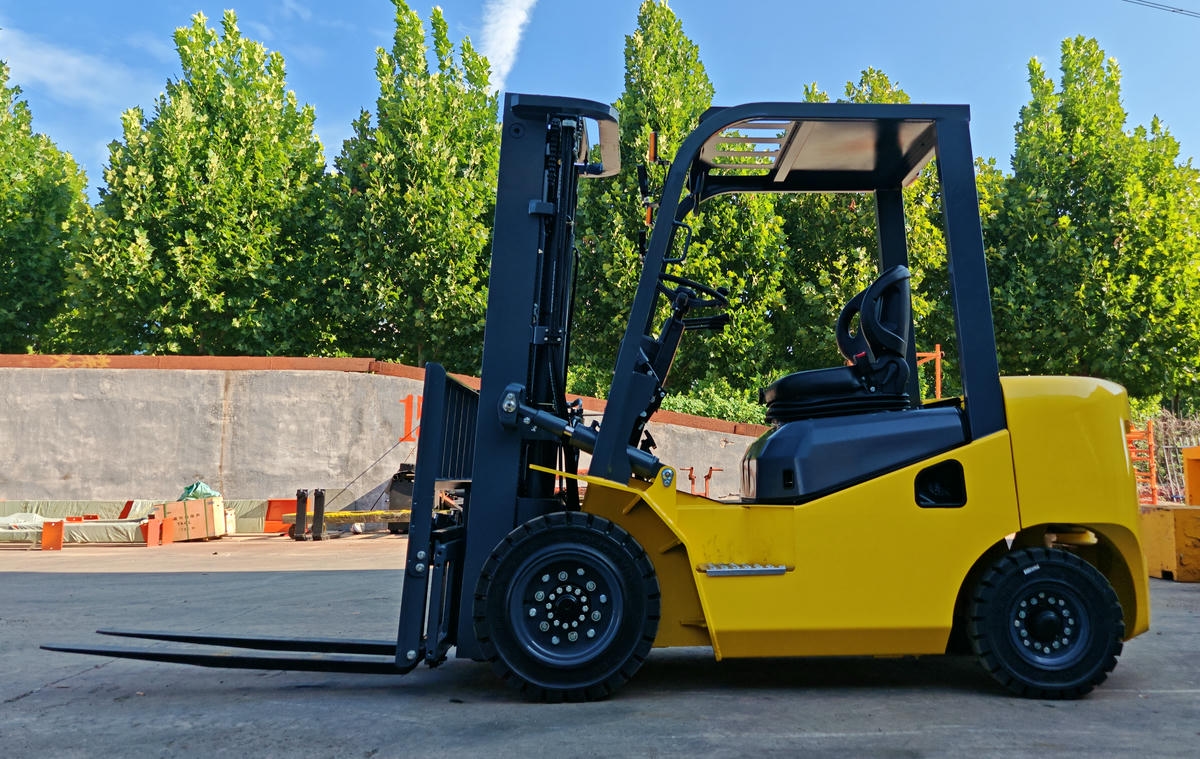

 2.5-ton diesel forklift

Its advantages are mainly reflected in the following aspects:

1. Powerful Power for Heavy Loads and Complex Working Conditions

The high-torque characteristic of the diesel engine (especially in the low-speed range) enables it to easily handle the rated load of 2.5 tons. Equipped with a robust hydraulic system, it can efficiently complete tasks such as pallet handling, stacking, and short-distance transportation. Even under full load, it maintains stable acceleration and climbing capability (typical climbing grade ≥ 15%), making it suitable for high-frequency operation scenarios like warehouses, ports, and factory workshops.

2. Long Endurance without Fixed Power Supply Restrictions

Unlike electric forklifts that rely on charging piles or battery swap stations, diesel forklifts only need to be refueled to operate. A single refueling can support 8-12 hours of operation (depending on work intensity), eliminating the need for frequent shutdowns for energy replenishment. This feature makes it irreplaceable in outdoor operations (such as port yards, open areas of logistics centers), remote areas, or scenarios with weak power infrastructure.

3. Strong Environmental Adaptability for Low-Temperature/Dusty Environments

The diesel engine outperforms electric forklifts in low-temperature starting performance (it can start quickly with a preheating device even in -20℃ environments) and has higher resistance to dusty, humid, and other harsh conditions. For example, in dusty workshops like building material factories and steel mills, the sealed design and air filtration system (such as a two-stage air filter) of diesel forklifts can effectively reduce the intrusion of impurities and extend the engine's service life.

4. Better Comprehensive Cost-Effectiveness (for Long-Term Use)

Mature maintenance system, strong universality of spare parts, resulting in higher maintenance convenience and lower maintenance costs;

Longer service life, with a typical life cycle of 8-10 years.

5. High Operational Flexibility

The 2.5-ton model has a moderate body size, allowing flexible steering in narrow aisles while carrying large cargo. It balances the needs of "load capacity" and "mobility," making it a "general choice" for the warehouses of most enterprises.

2.5-ton diesel forklift

Applicable Scenarios

With its load capacity and size, the 2.5-ton diesel forklift serves as an "all-rounder" in general warehouse logistics, mainly applied in:

Third-party logistics warehouses: Pallet handling, cargo stacking (3-5 layers), and short-distance transfer;

Manufacturing factories: Material turnover in raw material warehouses and finished product warehouses, as well as loading and unloading materials for production lines;

Ports/freight stations: Cargo loading and unloading in container yards and open storage yards (requiring optional wide-view masts or anti-corrosion configurations);

Building material/chemical enterprises: Operations in dusty and humid environments (requiring enhanced air filters and sealed designs).


Summary

Relying on its powerful power, long endurance, wide adaptability, and reasonable long-term costs, the 2.5-ton diesel forklift has become a "classic model" in industrial vehicles. For enterprises that need to balance load capacity, efficiency, and diversity of operation scenarios (especially outdoor or multi-shift operation scenarios), it is a reliable choice to improve logistics efficiency.
