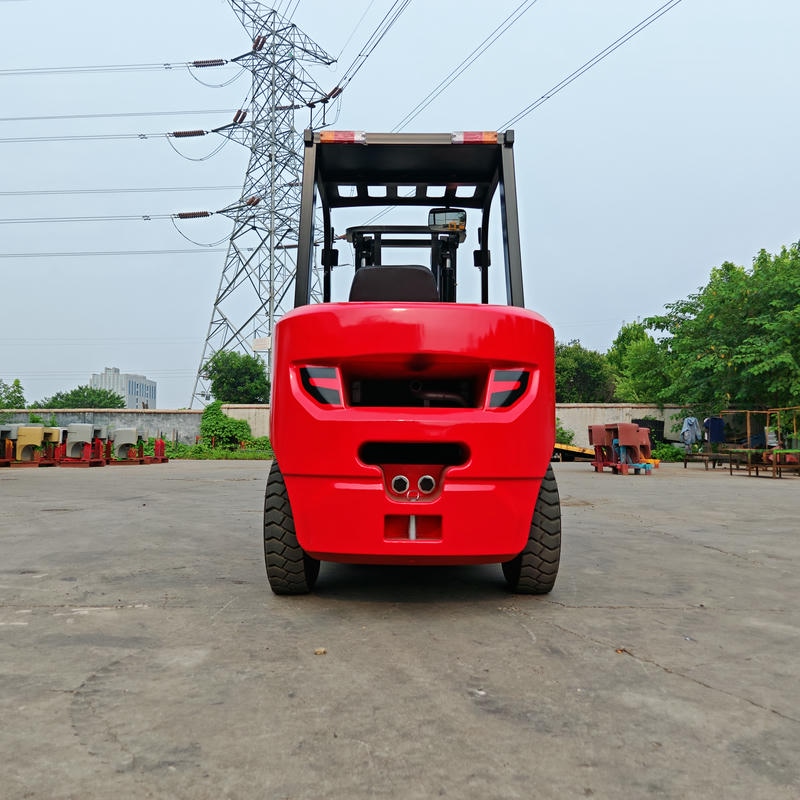

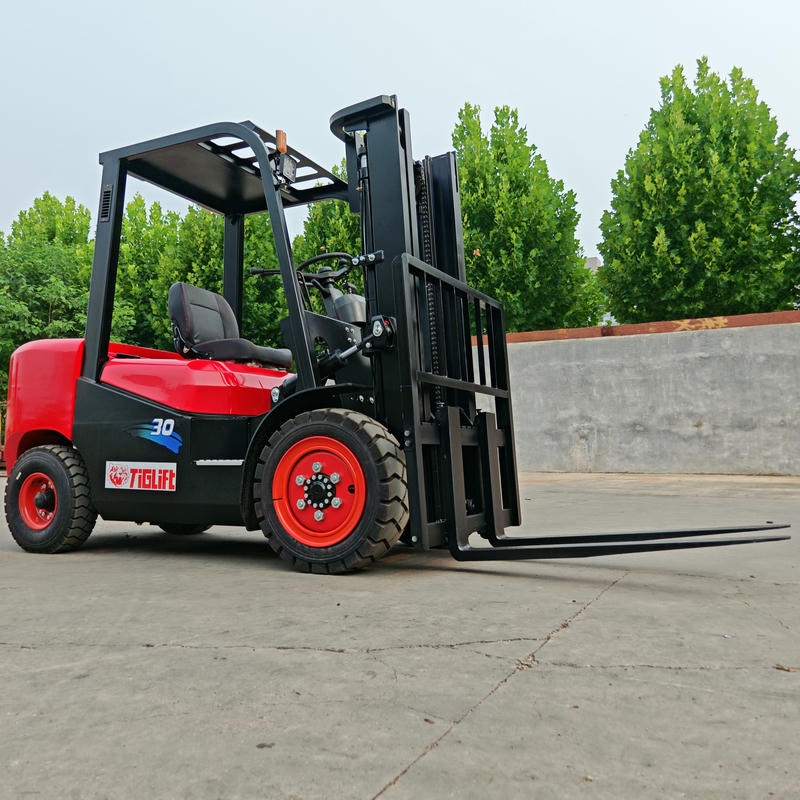

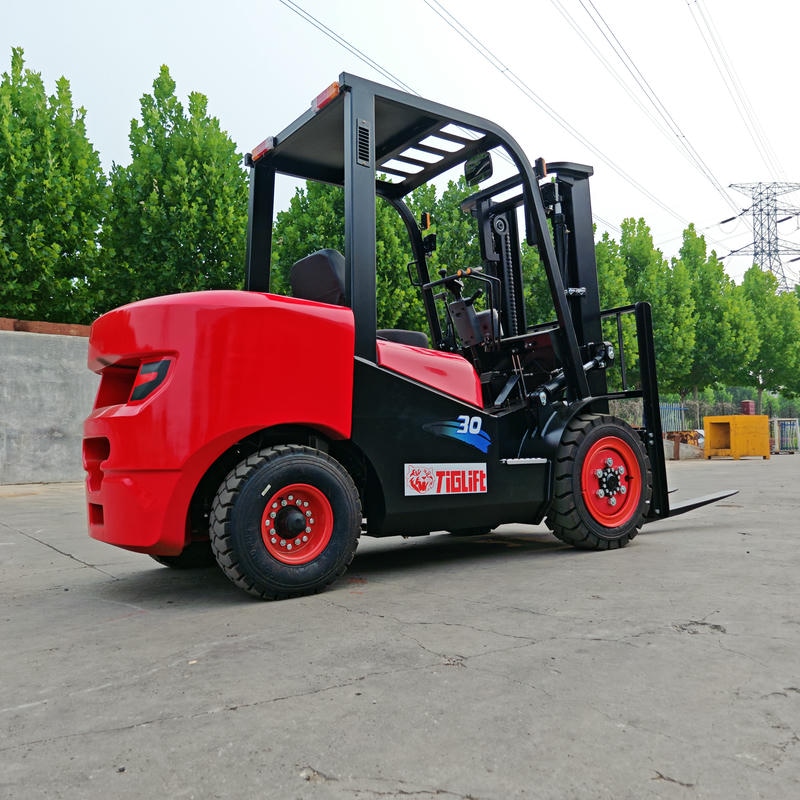

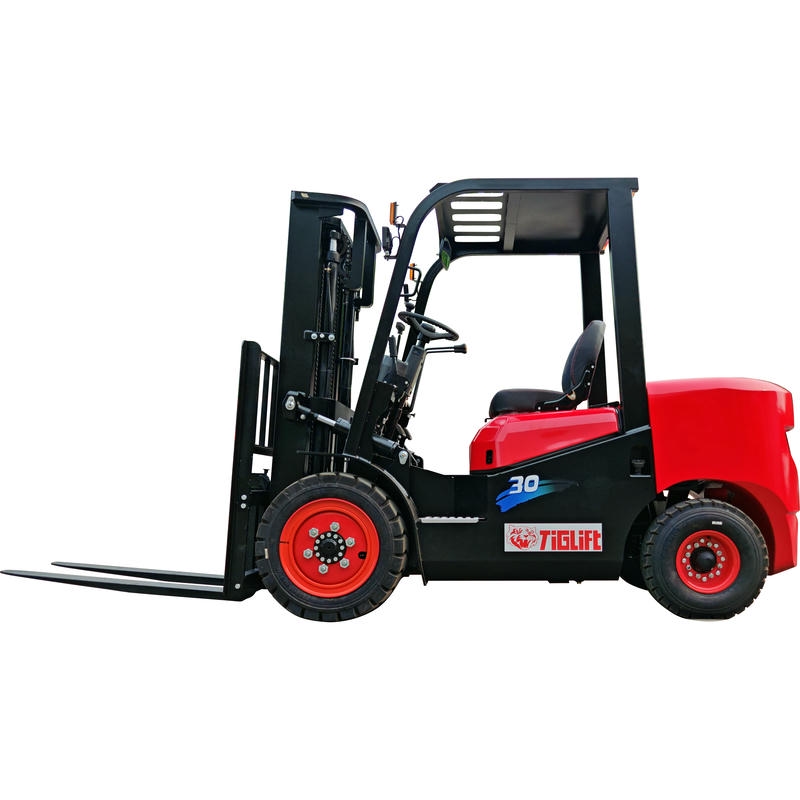

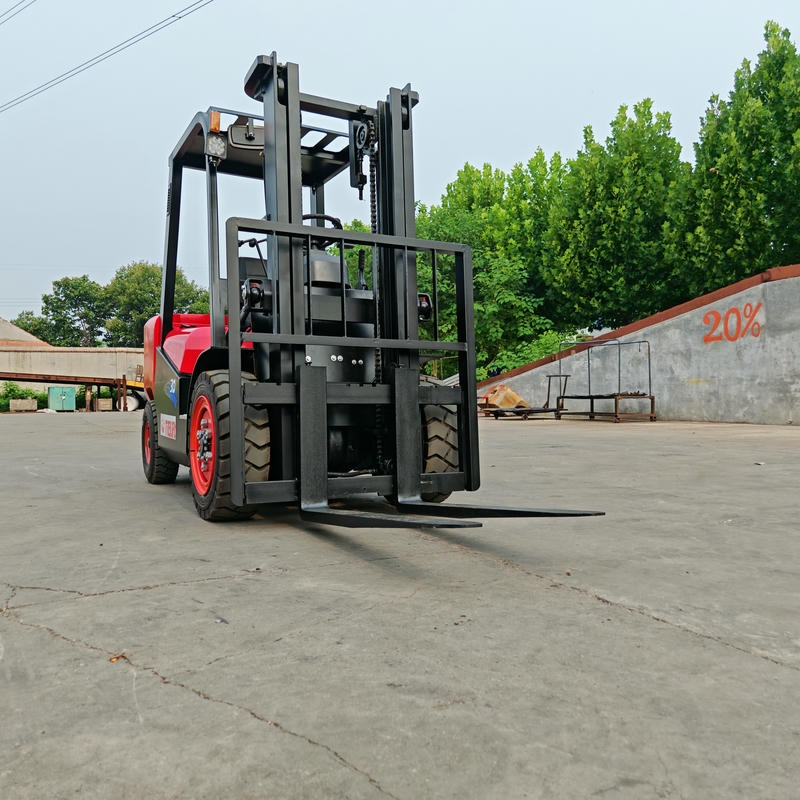

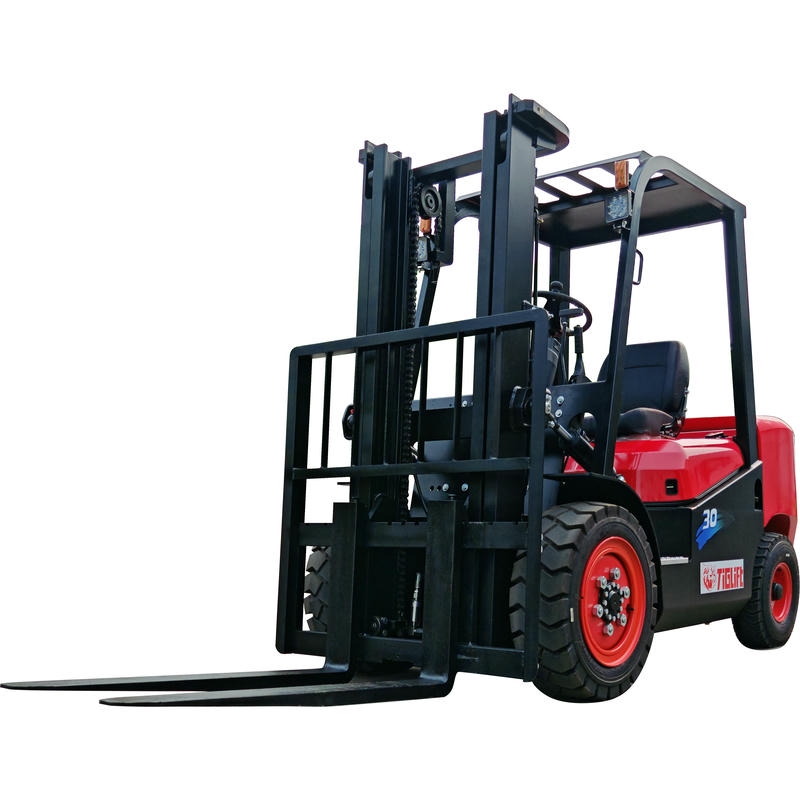

3 Ton Forklift
Diesel forklifts feature low operating costs, saving 40% in fuel expenses compared to electric ones;
No battery scrapping costs, making them more cost-effective in the long run;
Refueling is quick, which improves work efficiency;
Excellent high-temperature resistance, suitable for various working conditions.
The safety of diesel forklifts is reflected in multiple designs: they come standard with ROPS (Roll-Over Protective Structure) and FOPS (Falling Object Protective Structure) to cope with the risks of rollover and falling objects from high altitudes; anti-slip tires increase grip by 40% on rainy days and oily ground; reversing buzzers and rearview mirrors reduce the probability of collisions; the wide-visibility mast reduces blind spots, ensuring more precise lifting and lowering of heavy loads.
Product Parameter
TECHNICAL SPECIFICATIONS | |||||
Performance | Model | CPC30 | CPCD30 | ||
Rated Capacity | kg | 3000 | 3000 | ||
Load Center | mm | 500 | 500 | ||
Power Type | Diesel | Diesel | |||
Max. Lifting Speed (No-Load / Full-Load) | mm/s | 450∕440 | 450∕440 | ||
Max. Driving Speed (Full-Load / No-Load) | km/h | 18∕20 | 18∕20 | ||
Max. Towing Capacity | kN | 15.5∕10.5 | 15.5∕10.5 | ||
Gradeability (Full-Load / No-Load) | % | 15∕20 | 15∕20 | ||
Lifting Height | (H1) | mm | 3000 | 3000 | |
Free Lift Height | mm | 80 | 80 | ||
Mast Tilting Angle (Forward-Backward) | （°） | 6∕12 | 6∕12 | ||
Min. Turning Radius | mm | 2530 | 2530 | ||
Min.Right Angle Aisle Width | mm | 2050 | 2050 | ||
Min. Ground Clearance | mm | 135 | 135 | ||
Dimensions | Overall Length (Including Fork) | (A) | mm | 4170 | 4170 |
Overall Width | (B) | mm | 1230 | 1230 | |
Overall Height (Mast Lowered) | (H) | mm | 2110 | 2110 | |
Overall Height (Mast Extended) | (H2) | mm | 4270 | 4270 | |
Overall Height to Overhead | (H3) | mm | 2105 | 2105 | |
Front Overhang | (A1) | mm | 465 | 465 | |
Wheelbase | (A2) | mm | 1760 | 1760 | |
Front Tread | (B1) | mm | 1000 | 1000 | |
Rear Tread | (B2) | mm | 970 | 970 | |
Tire | Front Wheel | mm | 28*9-15 | 28*9-15 | |
Rear Wheel | mm | 6.50-10 | 6.50-10 | ||
Fork | Fork Width | (B3) | mm | 122 | 122 |
Fork Thickness | (H4) | mm | 45 | 45 | |
Backrest Height | mm | 1225 | 1225 | ||
Fork Length | (A3) | mm | 1220 | 1220 | |
Engine | Engine Model | C490BPG | C490BPG | ||
Rated Power | kW | 40 | 40 | ||
Rotate Speed at Rate Power | rpm | 2650 | 2650 | ||
Max. Torque | Nm | 162 | 162 | ||
Rotation Speed at Max. Torque | rpm | 1800～1900 | 1800～1900 | ||
Type of Power Shift | Mechanical | Hydraulic | |||
Self-Weight | kg | 4100 | 4100 | ||
Optional
1. Engine：
•Standard: Xinchai, Quanchai
•Optional: Isuzu (Japan), Mitsubishi (Japan), Nissan (Japan), YANMAR(Japan), Kohler (USA), Commins (USA)
2. Mast：
•Standard: 2-stages 3000mm
•Optional: 2-stages and 3-stages full free 4500mm-7500mm mast
3. Fork：
•Standard 1220mm fork
•Optional 1370mm, 1520mm, 1670mm and 1820mm forks;
4. Pneumatic tire and solid tire both available
5. All kinds of forklift attachments available
Why TIGLIFT Diesel Forklift？
Product Advantages (Designed for Building Materials Markets):
Tailored for building materials markets (for mixed handling of tiles, wood, and steel), it features forks with quickly adjustable width (to fit pallets of different specifications) and a side-shift function (for precise alignment with goods). The power system is adapted to frequent starts and stops (e.g., short-distance handling of multiple batches of goods) with economical fuel consumption (the handling cost per ton is 15% lower than that of peers). The cab has an unobstructed design, allowing operators to clearly observe goods and the surrounding environment. Tires can be optionally inflatable (for comfort) or solid (puncture-proof) to meet the needs of indoor (concrete floors) and outdoor (gravel roads) use. Maintenance is convenient, as filters and oil filler ports are centrally arranged, requiring only 10 minutes for daily inspections.
Factory Strength:
With 20 years of focus on manufacturing forklifts for building materials handling, the factory is equipped with a building materials simulation test line (loading tiles/steel to test stability). The wear resistance of the fork steel reaches 1.5 times the industry standard. The R&D team collaborates with merchants in building materials markets to optimize functions (such as adding anti-slip buckle interfaces for goods).
Delivery Photos
International Shipping:
For full container shipments, building materials handling accessories (such as side shifters and anti-slip mats) are individually packaged to prevent scratches, and a "quick commissioning guide" is provided upon arrival at the port. To meet the transportation needs of building materials markets in Southeast Asia, an upgraded moisture-proof packaging solution (with inner waterproof film) is offered.
After Service
Warranty: 2-year warranty period.
Manuals: Multi-language operation manuals are available.
Accessory Supply: Common accessories (such as side shifters and anti-slip mats) are stocked in the parts warehouse, with delivery to building materials market warehouses within 10 working days.
Remote Assistance: The remote team can guide merchants via video to complete basic maintenance (e.g., cleaning the forks).
