Skid Steer Loader: A Comprehensive Introduction

Skid Steer Loader: A Comprehensive Introduction

A skid steer loader is a versatile piece of small construction machinery. In 1960, Melroe Company of the United States (now the Bobcat brand) first implemented a four-wheel drive configuration on its M400 model, marking the birth of the modern skid steer loader. Skid steer loaders feature all-wheel drive and achieve steering through the differential speed of the drive wheels on both sides. They are capable of zero-radius turning, which allows them to navigate narrow passages and perform engineering operations in extremely confined spaces.

I. Classification

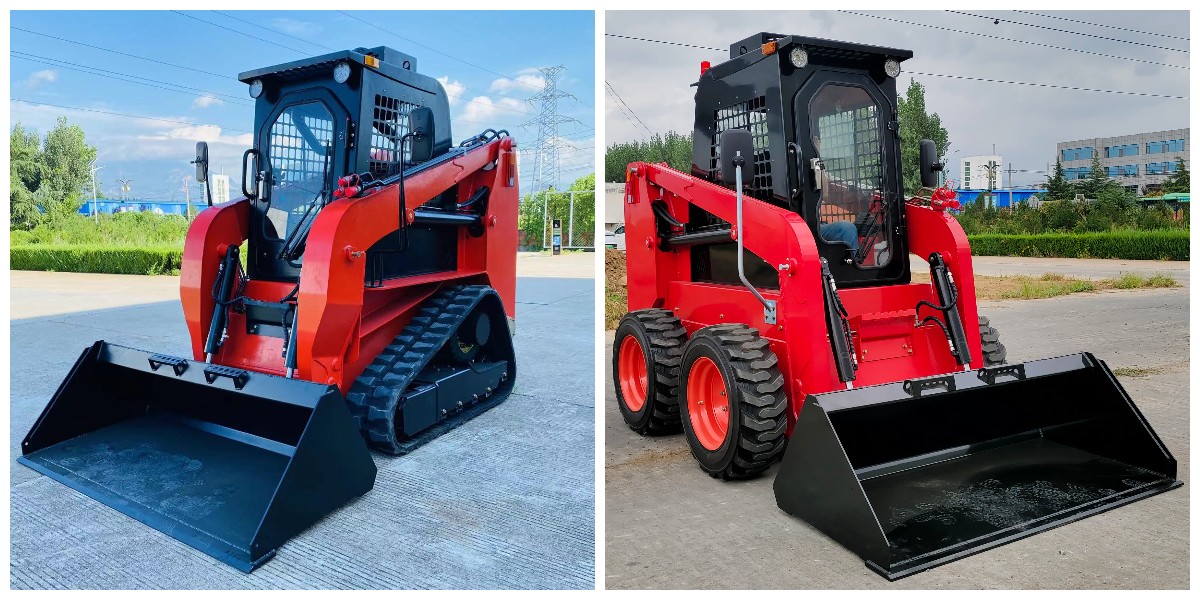

Skid-steer loaders can be categorized into wheeled and tracked types based on their travel mode. Wheeled skid-steer loaders are characterized by faster travel speeds and easier maneuverability for relocation, making them suitable for operations on relatively flat surfaces, such as auxiliary tasks in highway engineering. Tracked skid-steer loaders, however, offer superior ground contact and pass ability, giving them an edge when working in complex terrains like soft ground or rugged mountain paths.

Ⅱ. Key Functions and Advantages

1.Versatility: The greatest advantage of a skid-steer loader lies in its versatility. By replacing different attachments, it can perform a variety of tasks, which significantly improves the equipment's utilization efficiency and reduces the cost for enterprises to purchase multiple types of specialized machinery.

2. Maneuverability: Owing to its features of four-wheel drive and differential steering, it exhibits exceptional mobility in narrow spaces and complex terrains. For example, during the renovation of old urban buildings, it can conduct construction operations in the narrow corridors between buildings.

3. Simple Operation: The control system is typically straightforward and intuitive. Operators can control the skid-steer loader’s movement and the actions of its work attachments through control devices such as levers.

Ⅲ.Common Attachments for Skid Steer Loaders

Skid steer loaders can perform a wide range of engineering operations by being paired with different attachments. Below is an introduction to the commonly used attachments for skid steer loaders:

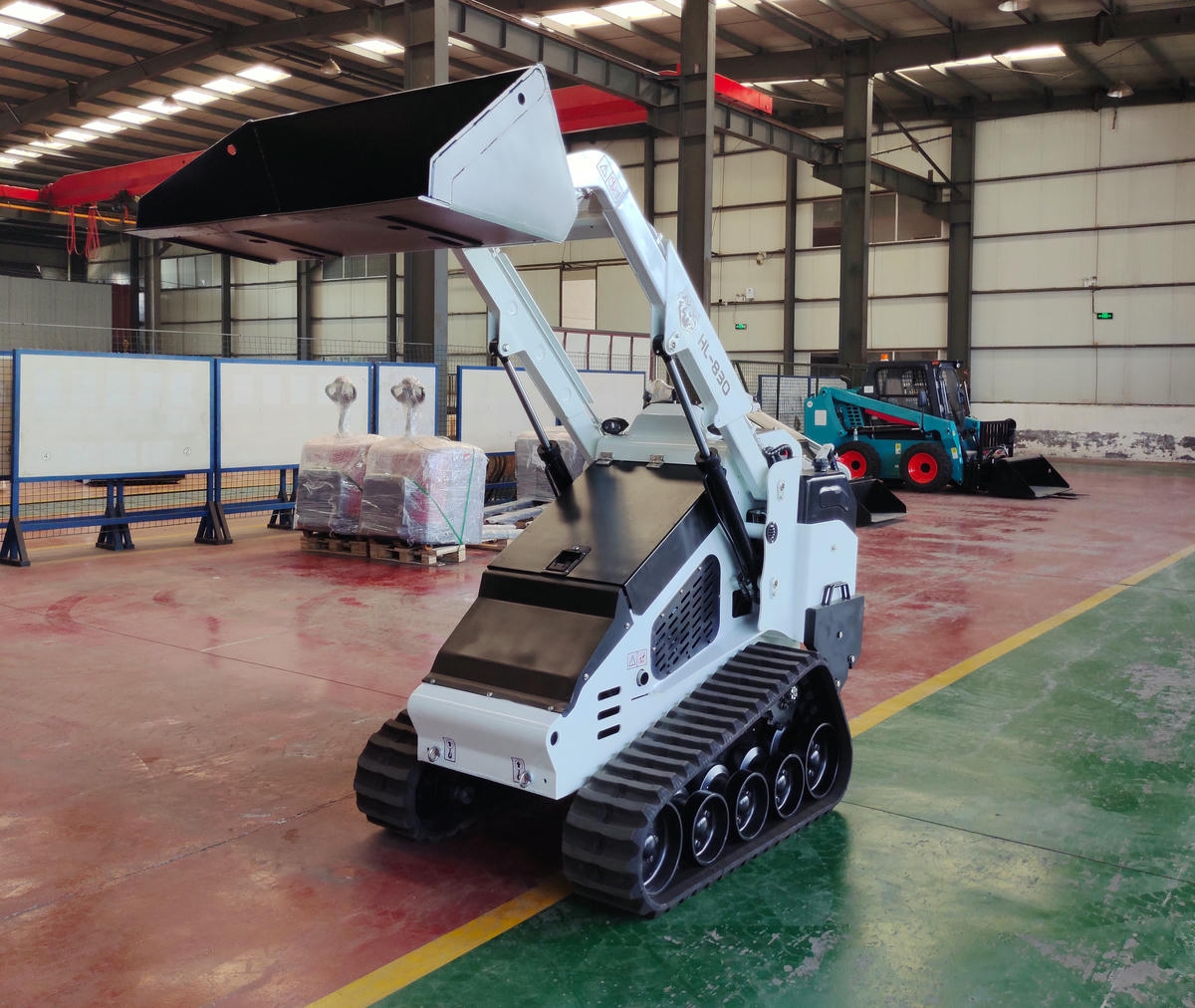

1. Bucket

Structure: Typically composed of a bucket body, bucket teeth, side plates, and other components. The bucket body is the main part for holding materials, the bucket teeth are used for excavating and grabbing materials, and the side plates prevent materials from spilling.

Application Scenarios: In construction projects, it is used to transport construction materials such as bricks, sand, and soil; in the agricultural field, it can be used to load grains, fertilizers, etc.

Advantages: It has a simple structure, is sturdy and durable, and is one of the most common attachments for skid steer loaders, capable of meeting the loading needs of various materials.

2. Breaker

Structure: Mainly consists of a cylinder block, piston, drill rod, and other parts. Driven by the hydraulic system, the piston moves to generate impact force on the drill rod.

Application Scenarios: In demolition operations, such as breaking concrete blocks and the foundations of old buildings; it can also be used for breaking rocks in mineral mining.

Advantages: It can efficiently break hard objects, greatly improving work efficiency.

3. Log Grapple

Structure: Usually made up of two or more openable and closable grapple claws, whose opening and closing actions are controlled by hydraulic cylinders.

Application Scenarios: In forestry, it is used to grab wood; in wood processing plants, it can be used to transport logs, etc.

Advantages: Specifically designed for long strip-shaped materials like wood, it provides stable grabbing and prevents slipping.

4. Snow Shovel

Structure: Generally, has a large shovel body with a relatively sharp bottom, which can easily cut into snow.

Application Scenarios: Used for snow removal on roads in winter, applicable to urban streets, highways, and farm roads.

Advantages: It can quickly and effectively clear snow, ensuring smooth traffic.

5. Sweeper

Structure: Mostly composed of a sweeping brush, a transmission device, and other components. Sweeping brushes of different materials can be selected according to different sweeping requirements.

Application Scenarios: Used for cleaning work in places such as squares, parking lots, and workshops.

Advantages: It can clean up dust, debris, and other substances, keeping the working environment tidy.

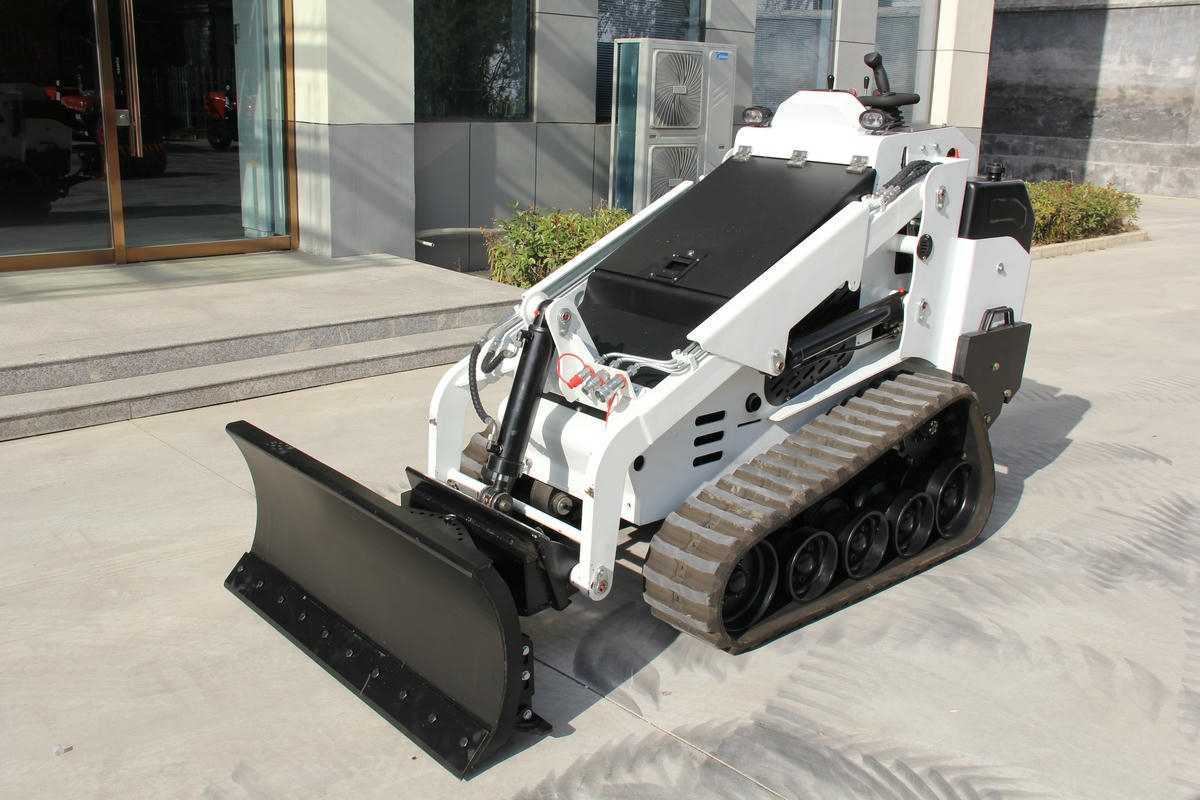

6. Snow Pusher

Structure: Similar to a snow shovel, but its shape is more suitable for pushing snow to one side.

Application Scenarios: Used for pushing snow in small areas such as courtyards and residential communities.

Advantages: It is flexible to operate and can push snow into regular shapes, facilitating subsequent handling.

7. Aerial Work Platform

Structure: Composed of a lifting device, a working platform, guardrails, and other parts, which can lift personnel and tools to a certain height.

Application Scenarios: Used in aerial work scenarios such as building exterior wall maintenance, street lamp maintenance, and tree pruning.

Advantages: It provides a safe and stable aerial work platform, enhancing the safety and convenience of operations.

8. Furrow Opener

Structure: The common plowshare-type furrow opener is composed of a plowshare, a bracket, and other components.

Application Scenarios: In agriculture, it is used for land reclamation and furrow digging; in landscape gardening, it can be used for digging planting holes, etc.

Advantages: It can dig furrows efficiently, ensuring that the depth and width of the furrows meet the requirements.

9. Clamp

Structure: Consists of two or more clamping jaws, a hydraulic control system, and other parts. The clamping jaws can be adjusted according to the shape of the object being clamped.

Application Scenarios: Used for transporting irregularly shaped objects, such as metal components and stone materials in construction waste.

Advantages: It can firmly clamp objects of various shapes, facilitating transportation.

When selecting attachments for a skid steer loader, comprehensive consideration should be given to the actual work requirements, working environment, and the type of skid steer loader (wheeled or tracked) to fully leverage the versatility of the skid steer loader.

Ⅳ. Application Scenarios

1. Operations in Confined Spaces: Performing tasks in narrow areas such as urban infrastructure sites, roads, construction sites, factory workshops, warehouses, docks, ship decks, and even ship cabins. With a small minimum turning radius, it can operate flexibly in these tight spaces.

2. Operations on Uneven Terrain: Equipped with four-wheel drive without an inter-wheel differential, combined with a diesel turbocharged engine, high-performance full-size tires, and an ultra-short wheelbase design, it boasts strong off-road capability, making it suitable for operations on rough and uneven ground.

3. Diverse Engineering Tasks: Capable of quickly replacing or attaching different work attachments to perform various tasks, including shoveling and transporting, stacking, hoisting, excavating, drilling, crushing, grabbing, pushing and shoveling, loosening soil, digging trenches, road sweeping, and road compaction.

4. Logistical Support and Completion Work: Used for logistical support, site cleanup, and project completion tasks for large construction machinery, such as clearing leftover debris like tiles from construction sites.

5. Other Applications: It can serve as a mobile pump station to power hydraulic tools (e.g., handheld hydraulic pickaxes). It is also directly applicable to road snow removal and cleaning operations. When paired with snow and ice removal accessories, it can efficiently clear large areas of snow and ice.

Skid steer loaders can play a great role in multiple fields and are excellent helpers.
