What is a Mini Excavator?

A mini excavator, also commonly referred to as a "compact excavator", is a type of small construction machinery with an operating weight typically ranging from 1 to 8 tons. Its core features include a small size, high maneuverability, versatility, and easy transportation, making it highly suitable for working in space-constrained environments where large equipment cannot access.

The key difference between mini excavators and large excavators lies not only in size and weight but also in their design philosophy: large excavators prioritize maximum digging force and efficiency, while mini excavators strike a balance between power, size, and versatility to achieve optimal site adaptability and cost-effectiveness.

Classification of Mini Excavators

Mini excavators can be classified based on multiple dimensions, with the following being the mainstream classification methods:

1. Classification by Operating Weight

This is the most commonly used and intuitive classification method, which directly determines the size and capability of the excavator.

•Micro Excavators (1-3 tons): Such as 1.5-ton, 1.8-ton, and 2.5-ton models. They are the smallest in size and offer extremely high maneuverability, suitable for extremely narrow spaces like garden landscaping, indoor demolition, and vegetable greenhouses.

•Small Excavators (3-6 tons): Such as 3.5-ton, 5-ton, and 6-ton models. These are the most mainstream models in the market, balancing maneuverability and operational efficiency. They are widely used in municipal engineering, rural construction, pipeline excavation, and other scenarios.

•Compact Excavators (6-8 tons): Such as 7-ton and 8-ton models. They have stronger capabilities and better stability, and are often used in small earthworks, building foundation excavation, and other occasions that require higher digging force and loading capacity.

2. Classification by Travel Mode

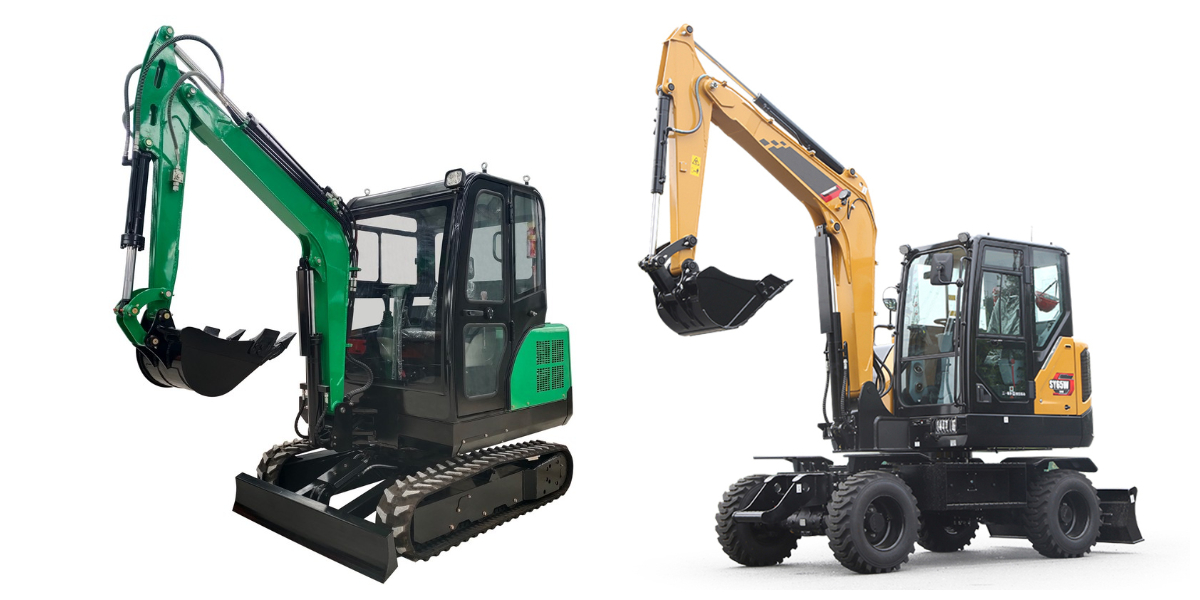

•Crawler-Type Mini Excavators:

Advantages: Small ground pressure, low risk of sinking, strong climbing ability, and better pass ability and stability on harsh ground conditions such as muddy, soft, or uneven surfaces.

This is the absolute mainstream choice, as most mini excavators are of the crawler type.

•Wheel-Type Mini Excavators:

Advantages: Excellent mobility, high travel speed (up to 20-40 km/h), can independently and quickly transfer between different construction sites, and does not damage paved roads.

Application Scenarios: Urban municipal maintenance, highway maintenance, and other operations that require frequent short-distance movement on hardened roads.

3. Classification by Power Source

•Fuel-Powered (Diesel):

Advantages: Strong power, long battery life, wide applicability to working conditions, mature technology, and convenient maintenance. It is currently the absolute dominant type in the market.

•Electric-Powered (Lithium-Ion Battery/Lead-Acid Battery):

Advantages: Zero emissions and low noise (<75 decibels), making it very suitable for scenarios with strict requirements on environmental protection and noise, such as indoor decoration, tunnel construction, and areas around libraries and hospitals.

•Hybrid-Powered:

It combines the advantages of diesel engines and electric motors, improving fuel economy and reducing emissions through optimized energy recovery and utilization. However, due to its complex technology and high cost, it is rarely used in mini excavators at present.

4. Classification by Functional Use

•General-Purpose: Equipped with a standard backhoe bucket, it is used for general earth digging, leveling, and loading operations.

•Special-Purpose: Specific functions are achieved by replacing front-end attachments. This is not an independent category but reflects the "versatility" of mini excavators.

Common attachments include:

Breaker/Hydraulic Hammer: Used for breaking concrete, rocks, frozen soil, etc.

Grapple/Claw: Used for handling materials such as wood, stone, and scrap metal.

Auger: Used for drilling holes in the ground.

Ditch Cleaning Bucket: Used for cleaning ditches and trenches, with a narrower and deeper shape.

Plate Compactor: Used for compacting soil after backfilling.

Core Features and Application Scenarios

1. Unmatched Flexibility and Pass ability

This is the most prominent advantage of mini excavators.

•Compact Size: With a narrow body (can be less than 1 meter wide) and low height (can be under 2.5 meters tall), mini excavators can easily access narrow spaces that are out of reach for large equipment, such as courtyards, indoor areas, warehouses, vegetable greenhouses, and narrow streets.

•Zero-Tail or Short-Tail Swing: During swing operations, the rear part of the machine does not extend beyond the track range or only extends slightly. This enables wall-adjacent operations and 360° safe swinging, significantly improving safety and convenience when working in confined spaces (e.g., near wall corners, inside enclosures, or between obstacles).

•Multiple Travel Modes: Crawler-type mini excavators have low ground pressure, so they are less likely to sink on muddy, soft, or uneven ground, and their pass ability is far superior to wheeled equipment.

2. Outstanding Versatility and Adaptability

A single main machine can be transformed into an "all-rounder" with a "quick coupler".

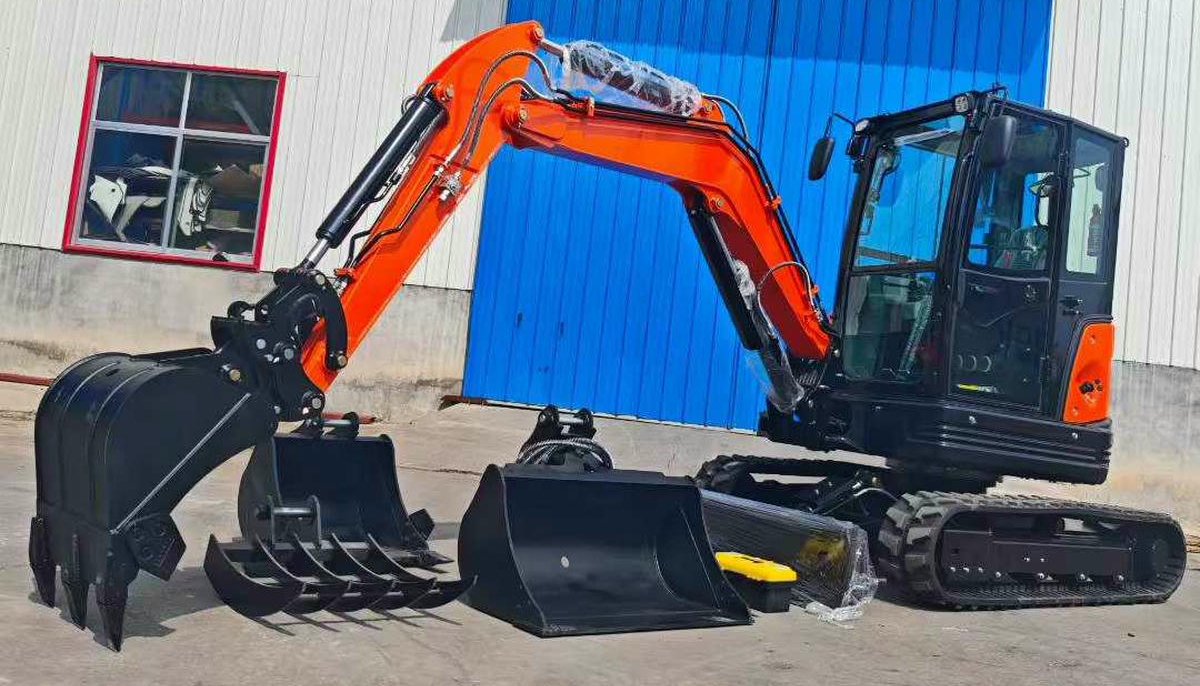

•Rapid Attachment Replacement: In addition to the standard bucket, it can be quickly switched to attachments such as a breaker (for concrete demolition), hydraulic shear (for metal dismantling), grapple (for handling wood/stone), auger (for piling and drilling), ditch cleaning bucket (for cleaning ditches), and plate compactor (for backfill compaction).

•Multi-Purpose with One Machine: This means users only need to invest in one piece of equipment to handle various tasks such as earthwork, demolition, material handling, drilling, and leveling, saving a significant amount of equipment purchase and rental costs.

3. High Economy and Cost-Effectiveness

•Low Purchase Cost: The price is much lower than that of medium and large excavators, with a low investment threshold, making it affordable for individuals and small construction teams.

•Low Operating Costs: It has low fuel consumption and relatively lower maintenance costs (e.g., for filter replacement and hydraulic oil changes).

•Low Transfer and Transportation Costs: Smaller models can be directly transported by pickup trucks or light trailers, while larger models only require medium-sized flatbed trucks for transportation. There is no need for large trailers or special transportation procedures, ensuring flexible transfer with extremely low costs.

•High Return on Investment (ROI): Due to its wide range of applications and high attendance rate, it can quickly generate profits for the owner.

4. Easy Operation and High Work Efficiency

•Easy to Operate: It usually adopts hydraulic pilot control, with very light operation levers and sensitive response. Even new operators can quickly get started after short-term training.

•High Work Efficiency: Under suitable working conditions (e.g., small earthworks and trench excavation), it has a short operation cycle, coordinated movements, and extremely high efficiency, which can significantly shorten the construction period.

•Easy for Technological Upgrades: Many new models are equipped with Bluetooth music, USB charging, and even GPS remote monitoring and management systems, facilitating owners to manage fleets and calculate costs.

5. Environmental Friendliness and Strong Adaptability

•Low Noise: Compared with large equipment, its engine noise is lower, causing less disturbance to surrounding residents. It is suitable for construction near residential areas, schools, and hospitals.

•Low Damage: It causes minimal rolling and damage to the ground, making it particularly suitable for construction on hardened roads, lawns, gardens, etc., with low later repair costs.

•Diverse Power Options: In addition to traditional diesel engines, there are also electric options that achieve zero emissions and extremely low noise, perfectly suitable for scenarios with strict environmental requirements such as tunnels, indoor spaces, and confined areas.

6. Wide Range of Application Scenarios

The above advantages together give it an almost "versatile" range of applications:

•Municipal Engineering: Pipeline laying, cable trench excavation, road repair, and landscape greening.

•Rural Construction: Homestead leveling, farmland water conservancy construction, soil turning in vegetable greenhouses, and cleaning of livestock sheds.

•Construction Sites: Small foundation excavation, indoor demolition, construction waste cleaning, and material handling.

•Landscape Gardening: Tree pit digging, landscape creation, and stone placement.

•Emergency Rescue and Disaster Relief: Performing cleaning and rescue tasks in narrow ruins.

•Rental Market: Due to its flexibility and multi-functionality, it is one of the most popular models among equipment rental companies.

In summary, a mini excavator is a type of compact construction machinery with flexibility and versatility as its core advantages. The selection of a specific type of mini excavator needs to be determined comprehensively based on your specific working scenarios (space size, ground conditions), operational requirements (digging force, functions), environmental regulations (emissions, noise), and budget.
