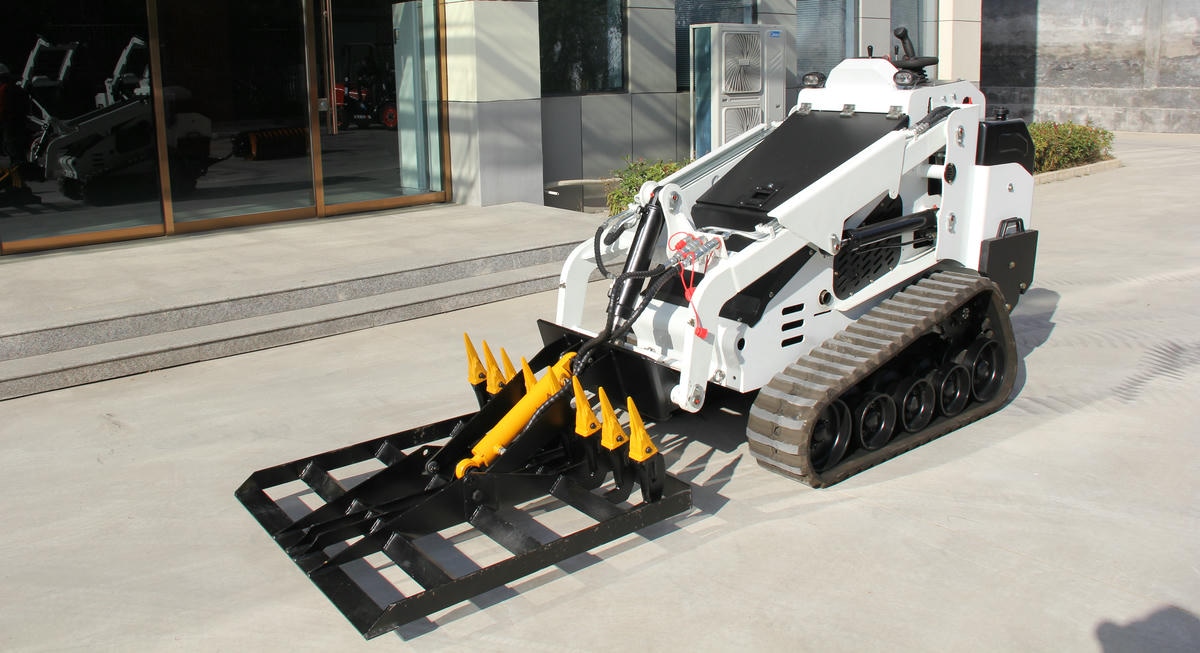

Grader

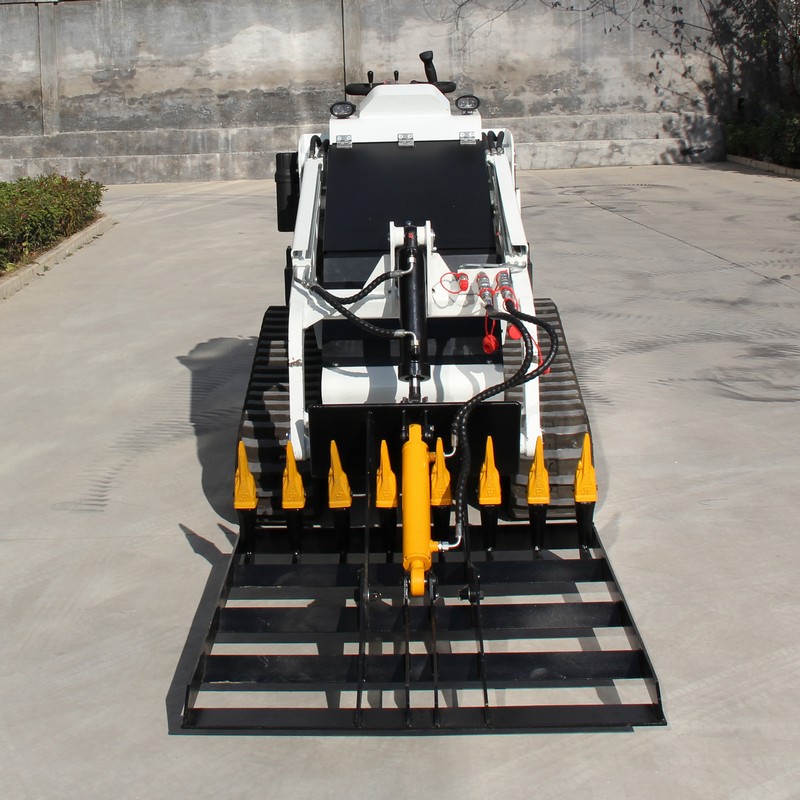

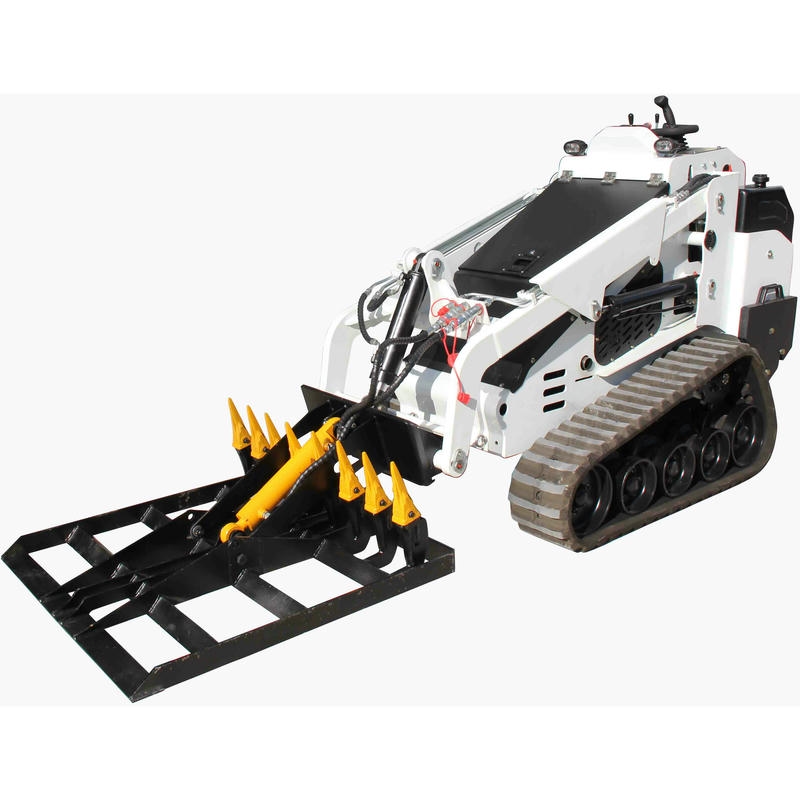

The skid-steer loader attachment land leveler is a specialized leveling tool designed for skid-steer loaders. It is used to scrape and level loose soil, sand, gravel, and other surfaces, suitable for farmland, construction sites, road bases, and similar scenarios. It efficiently replaces manual leveling or large land levelers, significantly improving grading efficiency and precision.

Structural Components

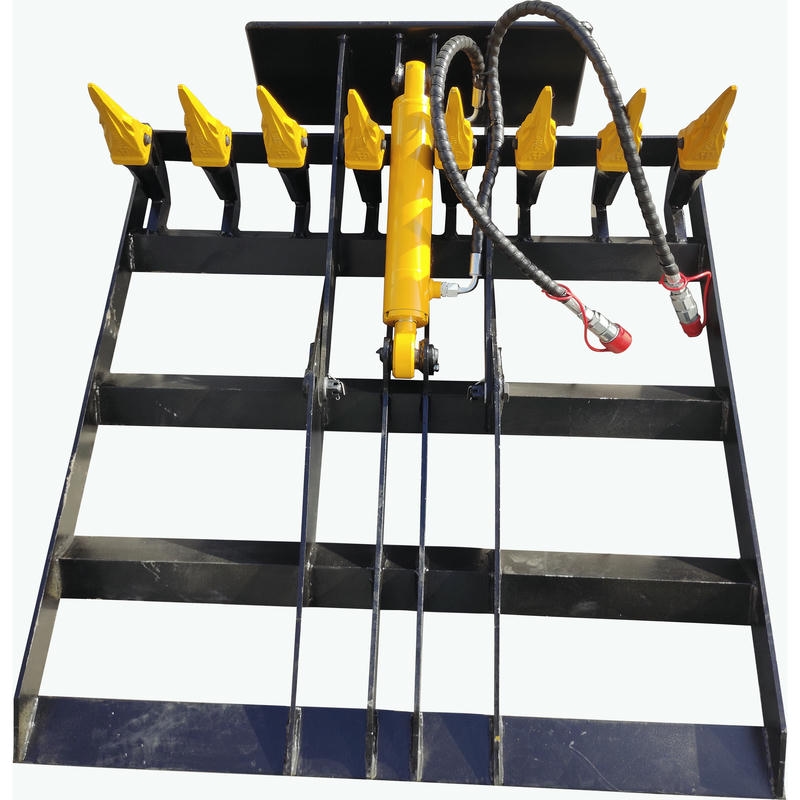

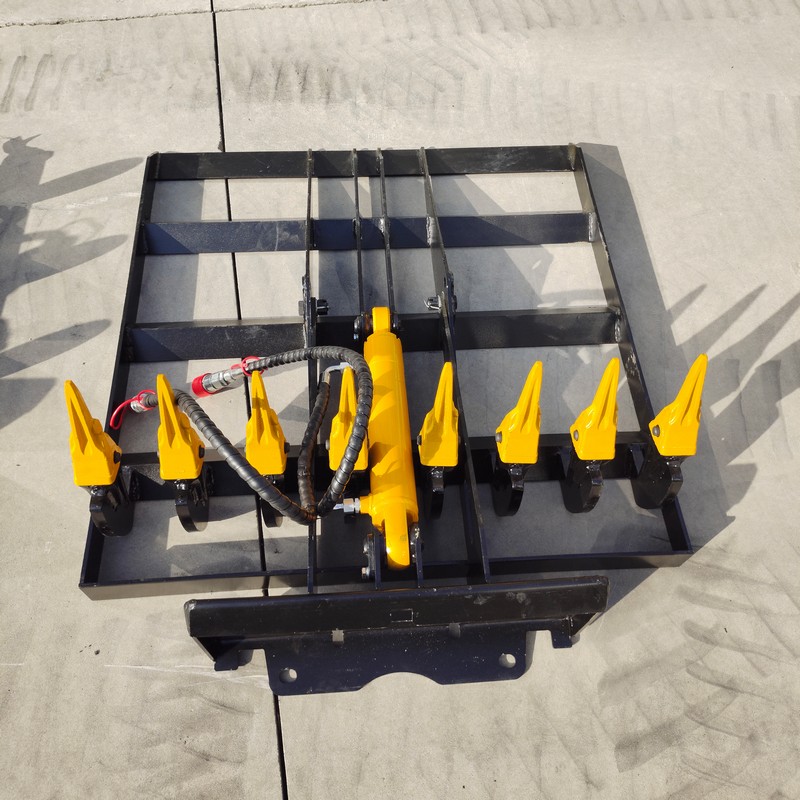

Key parts include:

• Blade: A high-strength steel rectangular or curved plate (with cutting edge), 1.5–2.5 meters wide, featuring adjustable angle (to control scraping direction) and height (to adjust scraping depth).

• Adjustment Mechanism: Hydraulic cylinders control the blade’s vertical movement (0–150mm) and tilt angle (forward/backward for scraping), with some models supporting lateral fine-tuning for slope grading (±5°–10°).

• Connection Frame: Mounts the land leveler to the front of the skid-steer loader, linking the hydraulic system to transmit power.

• Protective Components: Wear-resistant side plates (to prevent soil splash) and a base guard (to reduce wear), with some models including rollers for additional support.

• Hydraulic System: Powered by the skid-steer loader to drive vertical and angular adjustments.

Working Principle

During operation, the operator controls the blade via the control handle: adjusts height to remove raised soil, tweaks angle to redistribute and level material; moves the loader forward/backward at a steady pace to progressively flatten the surface; for slopes (e.g., drainage ditches), fine-tunes lateral angles.

Core Features

• Efficient Leveling: Single-pass width of 1.5–2.5 meters, outperforming manual methods with significantly faster large-area grading.

• Precise Control: Adjustable height/angle (±5mm accuracy) to control scraping depth (5–150mm) and slope gradients (1%–3%).

• Strong Adaptability: Wear-resistant blade suitable for loose soil, sand, gravel, and light rocky surfaces.

• Simple Operation: Controlled via the loader’s handle—no specialized training required; quick-install design for easy removal.

• Reliable Safety: Protective features guard against splash damage and wear; hydraulic overload protection prevents equipment damage.

Typical Application Scenarios

• Farmland: Leveling cropland, orchards, or tea fields; constructing drainage slopes.

• Construction Sites: Base leveling for buildings, warehouses, parking lots, or event spaces.

• Roads: Grading rural road or temporary path subbases.

• Mines: Rough leveling of excavated areas or waste dumps.

• Logistics Zones: Smoothing loading/unloading area surfaces.

The land leveler delivers mechanized leveling efficiency, making it a versatile attachment for grading tasks across multiple industries.
