Skid Loaders for Sale

The precise operation capability of skid steer loaders:

Pilot hydraulic control enables delicate operation;

Angle sensors assist in precise work;

Adjustable hydraulic flow controls action speed;

High-rigidity structure ensures accurate positioning;

Intelligent mode achieves millimeter-level precision.

Contact Now E-Mail Telephone WhatsApp

Product Details

The humanized design of this skid steer loader:

Suspended seats reduce vibration;

multi-functional joysticks integrate controls;

the display screen is intuitive and easy to read;

storage spaces are reasonably arranged;

air-conditioned cabs enhance comfort.

Product Parameter

SPECIFICATIONS AT50
	Performance Parameters	Unit (Metric)	Unit(inch)
Dimensions	Operating Height	3660mm	144 in
	Max Hinge Pin Height	2370mm	93 in
	Height To Top	2349mm	92.5 in
	Overall Length With Std.Bucket	3150mm	124 in
	Overall Length Without Attachment	2170mm	85.4 in
	Wheelbase	1230mm	48.4 in
	Overall Width	1422mm	56 in
	Mini Ground Clearance	230mm	9 in
	Angle Of Departure	18.5°	18.5°
	Bucket Capacity	0.4CBM	105.67 gal
	Rated Loading Capacity	700kgs	1543 lb
	Machine Weight	2700kgs	5952 lb
Hydraulic system	Working System Pressure	22Mpa	3191psi
	Working System Flow Rate	80L/min	21.13 gpm
	riving System Pressure	25Mpa	3626 psi
	Driving System Flow Rate	95L/min	25.1 gpm
Engine	Engine Model	XINCHAI490(State II)
	No. Of Cylinders	4 Cylinder	4 Cylinder
	Net Power	42kw	56.32 hp
	Note: Optional Engine: Korean LS(EPA)-42.5kw/1.9L

Product Advantages

Designed specifically for agricultural cooperatives (e.g., farmland arrangement and agricultural machinery handling), this equipment offers flexible functionality tailored to agricultural needs:

Versatile Attachments: Supports quick replacement of attachments such as rippers (to break compacted soil), feed buckets (for loading forage), and fruit tree branch trimmers (for orchard maintenance), adapting to diverse farming tasks.

Rugged Terrain Adaptability: The power system thrives in complex outdoor environments (e.g., farmland mud, gravel roads in cooperative yards). Equipped with four-wheel drive and large-size tires (anti-slip and anti-trap), it boasts strong passability.

Operator Protection: The cab features an optional windproof and rainproof cover, shielding operators from sun, rain, and harsh weather.

User-Friendly Operation: With clear handle logic, ordinary agricultural machine operators can master it after simple training, reducing skill barriers.

Low Maintenance Costs: Filters and oil changes are easy to perform, and daily inspections take only 10 minutes, minimizing downtime.

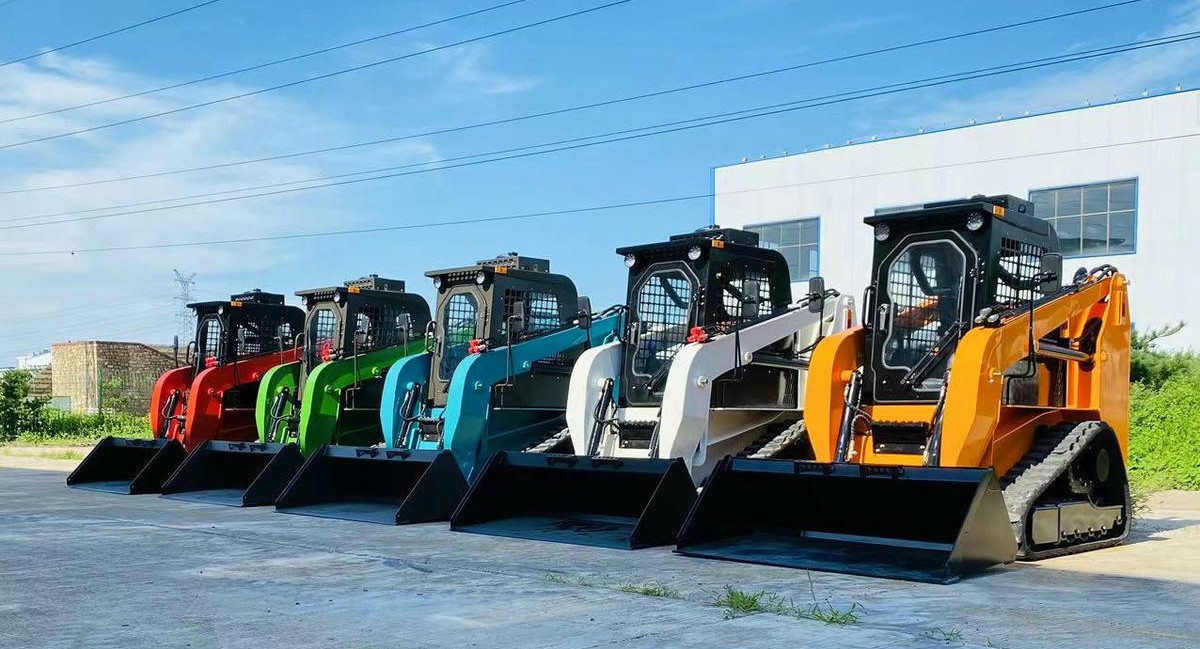

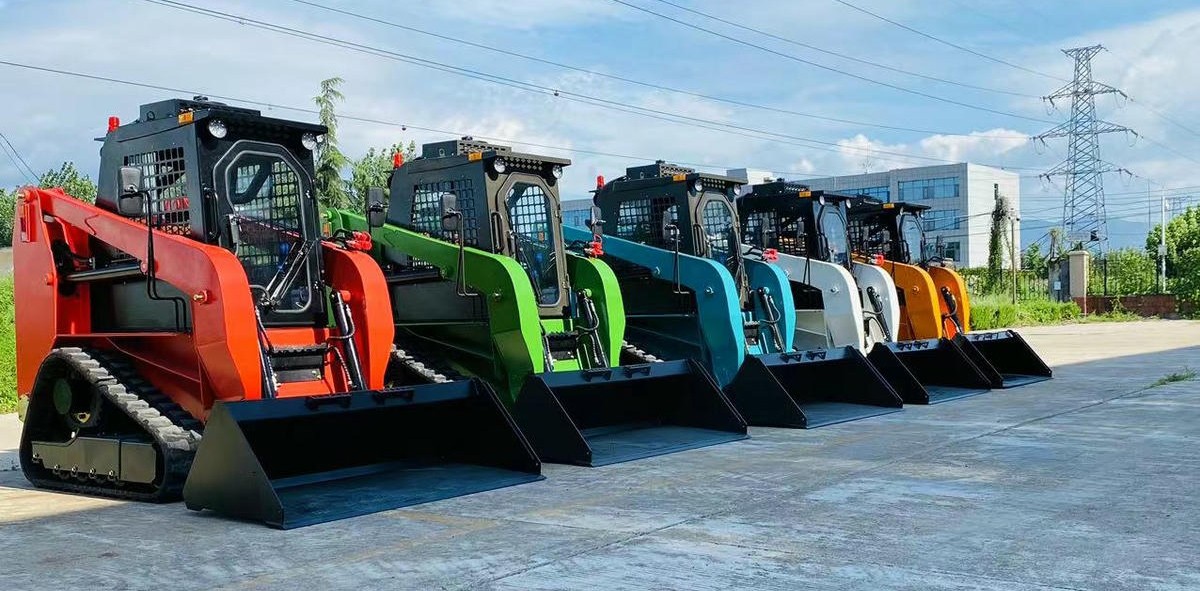

Tracked Skid Steer Loader

Strength of the Manufacturing Plant

With 20 years of focus on agricultural machinery manufacturing, the plant offers:

An agricultural scenario simulation test site (simulating farmland mud and yard gravel roads) to validate equipment performance. Frame and attachment connection parts undergo corrosion protection treatment exceeding industry standards.

A quality inspection process including "agricultural extreme testing" (6 hours of continuous mud operation + agricultural machinery handling simulation) to ensure durability.

A R&D team collaborating with agricultural cooperatives to optimize attachment interfaces (e.g., universal quick-change devices) for seamless operation.

Compliance with international agricultural equipment safety certifications (e.g., US ASABE standards), ensuring global applicability.

International Shipping Services

For full container shipments, agricultural attachments (e.g., rippers, feed buckets) are packed separately with marked assembly sequences. Upon arrival at the port, an "Agricultural Quick Commissioning Guide" (including attachment replacement and operation instructions) is provided.

To meet transportation needs of Southeast Asian agricultural cooperatives, a moisture-proof packaging upgrade (with inner waterproof film) is available to protect equipment from humid climates.

International After-Sales Service

Warranty: 2-year warranty (universal for agricultural scenarios).

Documentation: Provides simplified operation manuals for easy reference.

Spare Parts: Common attachments (e.g., rippers, trimmers) are stocked in parts warehouses for timely supply.

Remote Support: A remote team can guide operators via video to complete basic maintenance (e.g., cleaning air filters), ensuring continuous operation during busy farming seasons.
