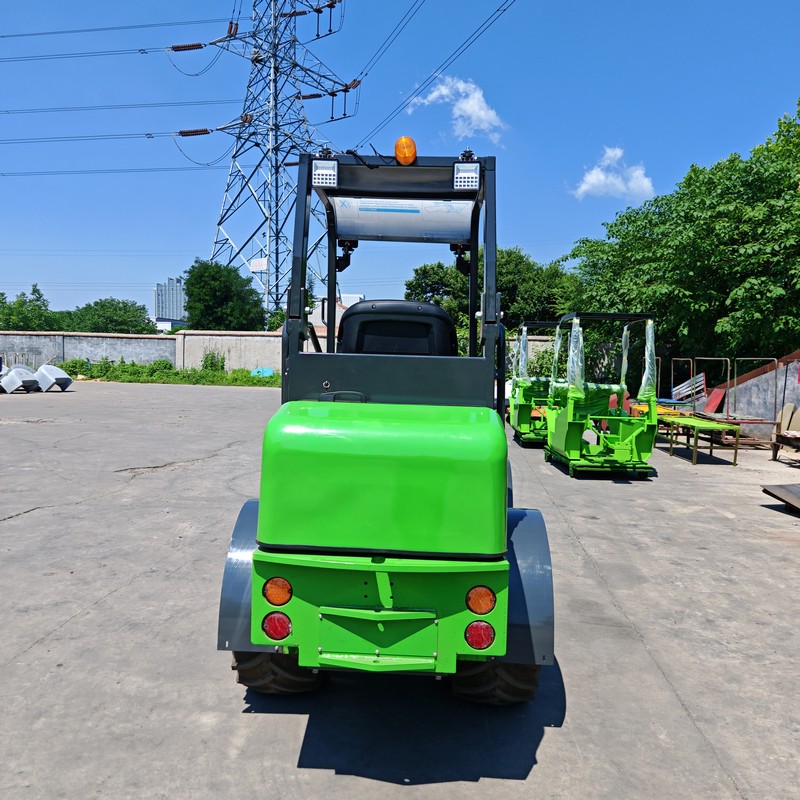

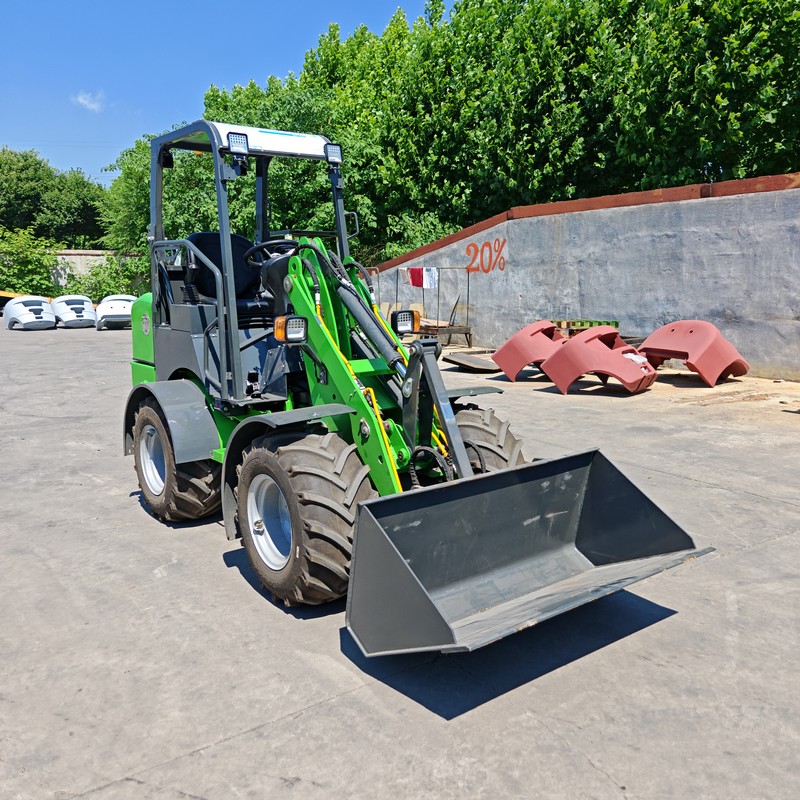

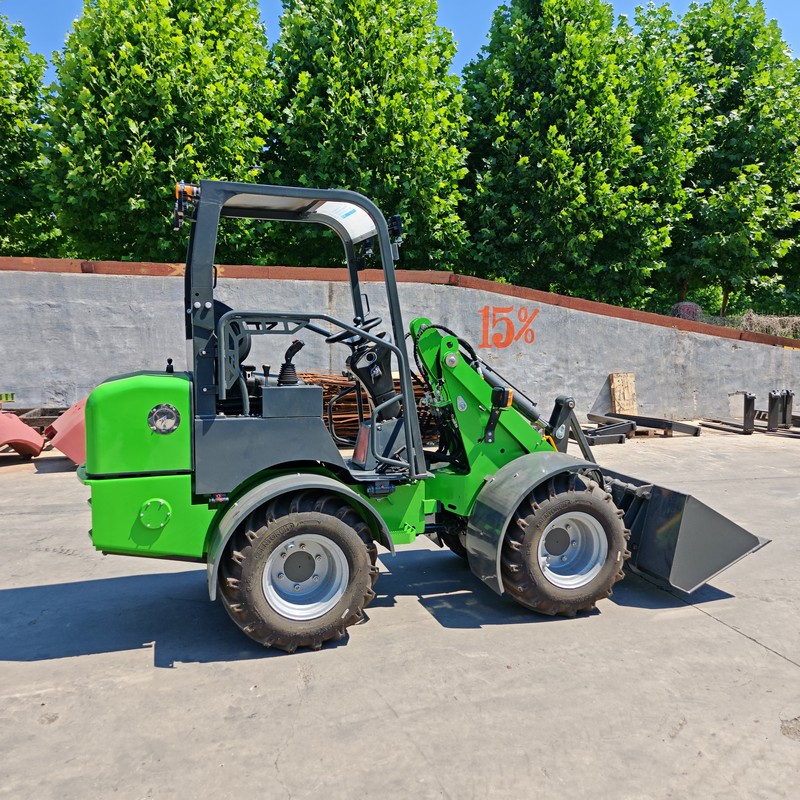

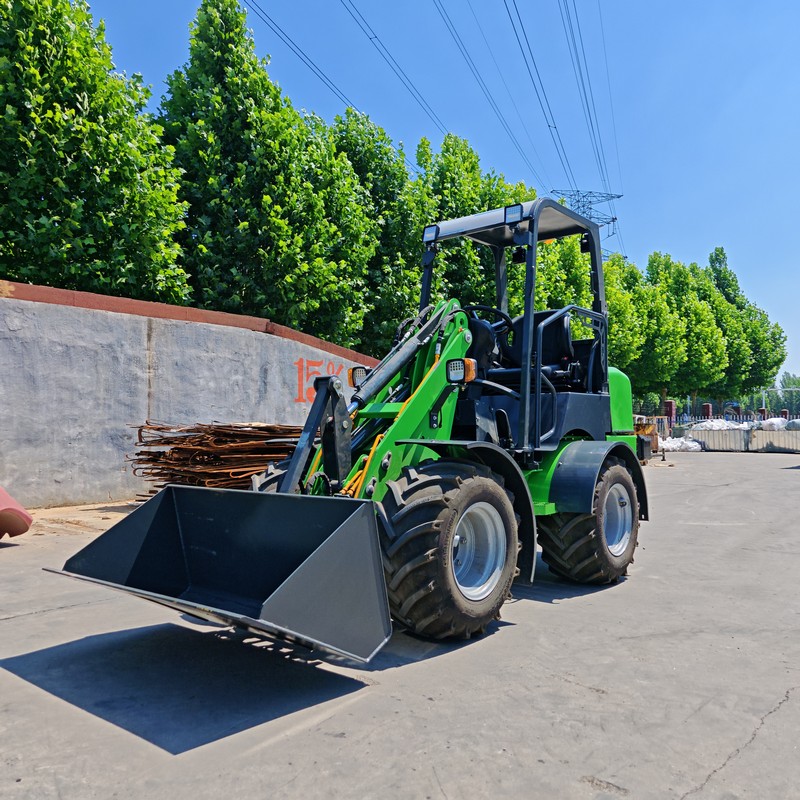

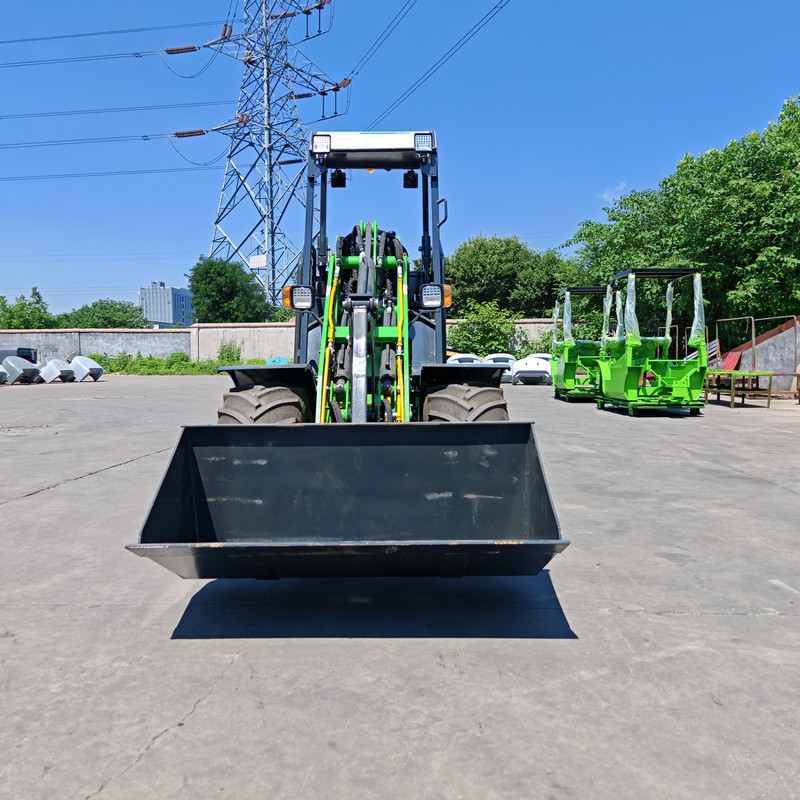

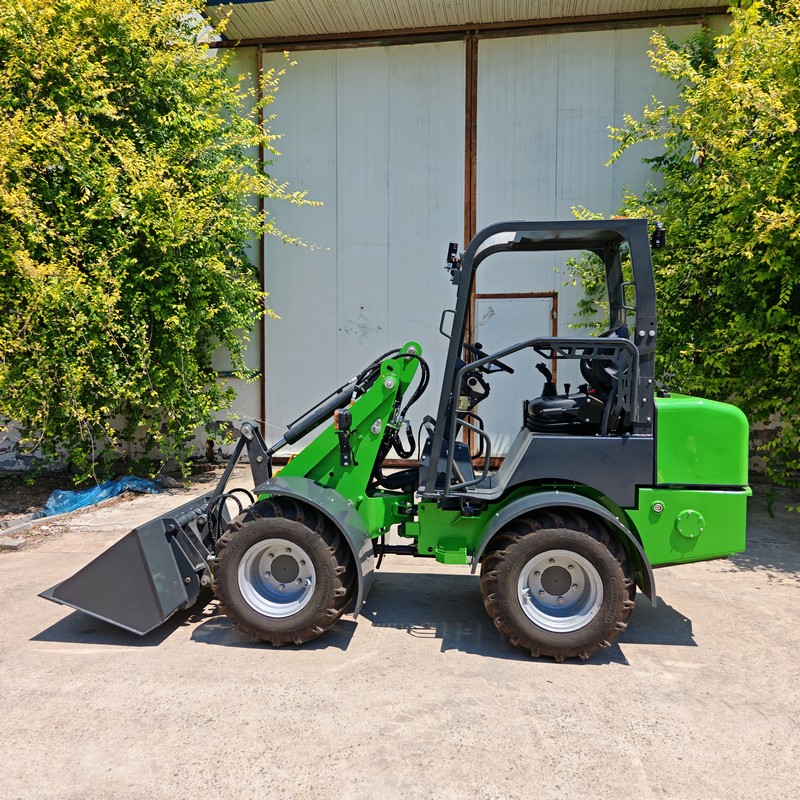

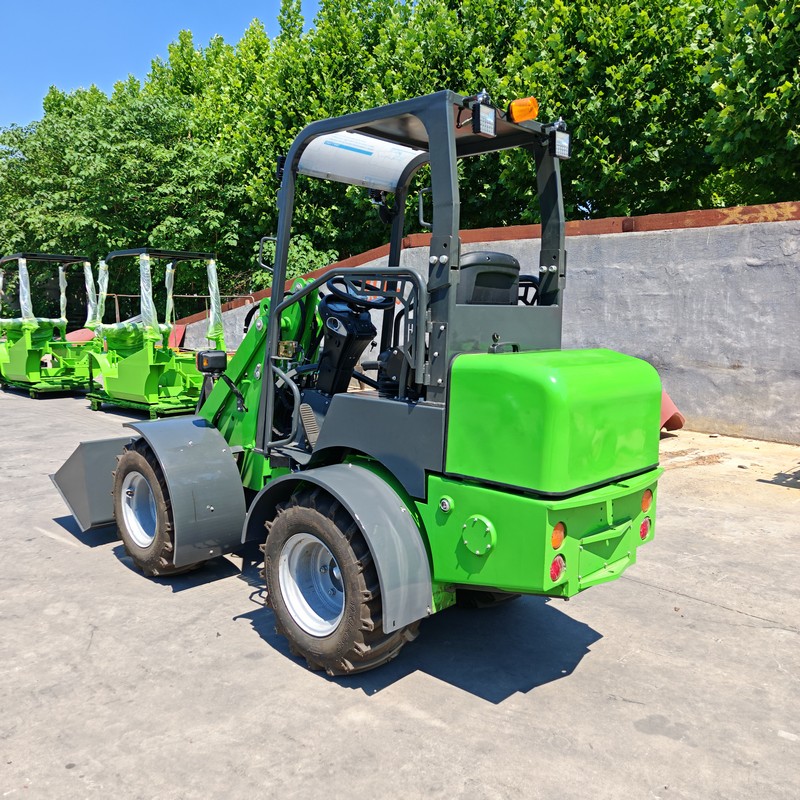

Mini Electric Loader

• Zero emission & ultra-low noise, ideal for indoor/residential sites

• Compact design with small turning radius, suitable for tight spaces

• Low operation & maintenance cost, no diesel, oil or exhaust components

• Quick-hitch for fast attachment change

• Smooth hydraulics, reliable lifting and loading

• User-friendly control panel, easy to operate

• Durable lithium battery for all-day operation

• CE certified, compliant with EU safety standards

WhatsApp Contact Now E-Mail

Product Details

Our Electric MINI loader is a battery-powered compact workhorse built for material handling in tight spaces. It delivers steady hydraulic lifting power without diesel fumes or loud engine noise, making it ideal for green construction, farms, warehouses, landscaping and indoor renovation projects.With a small turning radius and sturdy chassis, it easily navigates narrow aisles, gateways and crowded job sites. Compared with diesel loaders, it cuts fuel expenses and daily upkeep work; no engine oil, filter or exhaust service required. The ergonomic control layout ensures smooth, precise operation for operators of all skill levels.

It supports a wide range of interchangeable attachments including standard bucket, fork, snow blade and grab, turning one machine into multi-purpose equipment. Built with reliable battery packs, it offers long continuous working time for daytime shifts. CE compliant, safe and durable for long-term commercial and rental use.

Electric MINI loader

COMPACT ELECTRIC WHEEL LOADER TECHNICAL SPECIFICATION
DIMENSIONS	Model		HL1160D
	Total Length	A	3820 mm	150.4 in
	Total Length Without Bucket	B	3090 mm	121.7 in
	Front Overhang	C	500 mm	19.7 in
	Wheel Base	D	1500 mm	59.1 in
	Rear Overhang	E	1090 mm	42.9 in
	Seat Height	F	1290 mm	50.8 in
	Height to Lifting Cylinder Hinge Pin	G	1610 mm	63.4 in
	Height With Overhead Guard	H	2250 mm	88.6 in
	Overall Operating Height	J	3310 mm	130.3 in
	Height to Bucket Hinge Pin	K	2800 mm	110.2 in
	Load-Over Height	L	2610 mm	102.8 in
	Dumping Height	M	2200 mm	86.6 in
	Dumping Reach	N	380 mm	15 in
	Digging Depth	O	100 mm	3.9 in
	Min.Ground Clearance	P	240 mm	9.4 in
	Total Width	Q	1300 mm	51.2 in
	Tread Width	R	920 mm	36.2 in
	Max.Radius	S	2640 mm	103.9 in
	Outer Edge Radius	T	2300 mm	90.6 in
	Inner Radius	U	1475 mm	58.1 in
	Articulation Angle	W	52°	52°
	Rollback Angle at Max.Lift Height	X	52°	52°
	Dumping Angle at Max.Lift Height	Y	35°	35°
	Rollback Bucket Angle on Ground	Z	46°	46°
WEIGHTS	Curb Weight (With Bucket，Hydraulic Oil)		2220 kg	4894 lb
	Rated Load (Wheel Loader Body Straight)		850 kg	1874 lb
	Rated Load (Wheel Loader Body Bent)		550 kg	1213 lb
	Tipping Weight		1100 kg	2425 lb
HYDRAULIC SYSTEM	Working System Flow Rate		40 L/min	8.8 gpm(UK)
	Working System Pressure		160 bar	2321 psi
	Boom Lifting Time		3.4s	3.4s
	Function of Levelling Automatically		Yes
CAPACITY & SPEED	Hydraulic Oil Tank Capacity		28 L	6.2 gal(UK)
	Bucket Capacity		0.26 m³	57.19 gal(UK)
	Speed		15 km/h	9.3 mph
BRAKE & TYRE	Brake		Drum Brake
BRAKE & TYRE	Tyre		35x15.5-15
ELECTRIC MOTORS	Traveling Motor Power		18kW	24.1 hp
ELECTRIC MOTORS	Hydraulic Pump Motor Power		18kW	24.1 hp
BATTERY	Battery Type		Lithium Iron Phosphate Battery
	Capacity		76.8V 280AH
	Battery Operating Temperature Range		-20℃-55℃
	Working Time		5h-6h
CHARGER	Charger Model		80V 130A
	Weight		17kg	37.5 lb
	Charging Time (76.8V280Ah Battery)		2h-2.5h

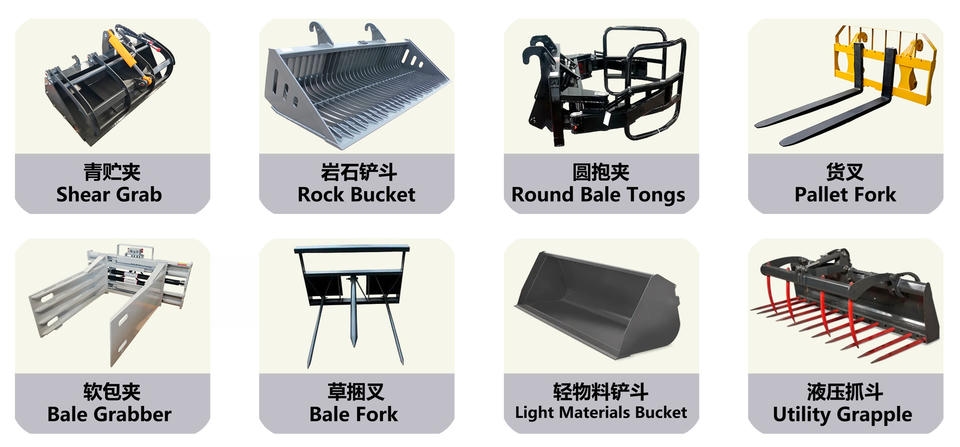

Attachments

Packaging & Shipping

Electric MINI loader

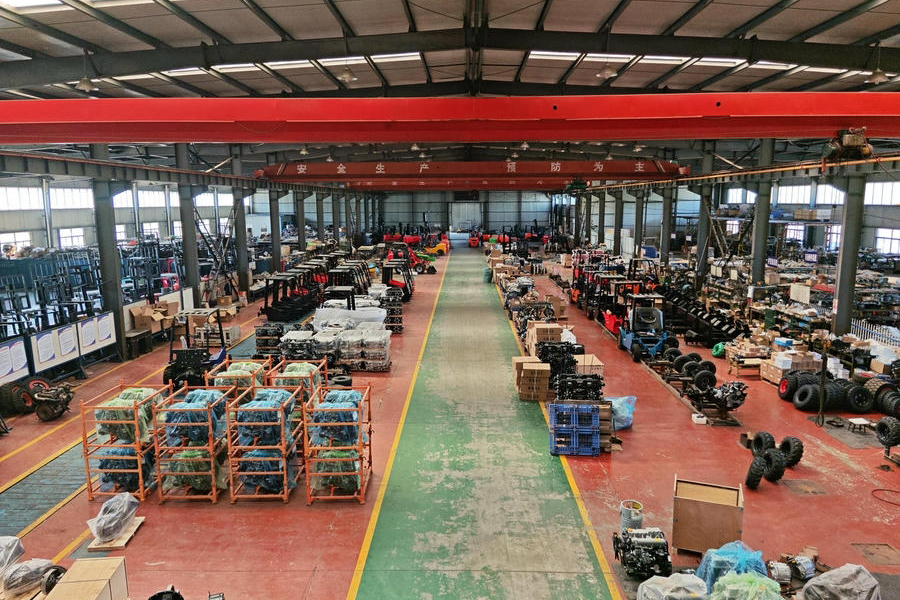

About Factory

With over 20 years of experience in engineering machinery design and manufacturing, our company is equipped with a complete set of processing facilities. We specialize in a wide range of products, including diesel forklifts, electric forklifts, LPG forklifts, mini loaders, skid steer loaders, and loader attachments. Our equipment is widely applied in warehousing & logistics, municipal engineering, agriculture, animal husbandry, breeding farms, and landscaping infrastructure projects. We also provide integrated solutions for customized equipment development. Having exported to numerous countries and served thousands of clients, we warmly welcome you to visit our factory for business cooperation.

FAQ

Q1: Where can this electric mini loader be used?

A: It fits landscaping, farm work, warehouse handling, indoor renovation, greenhouse operation and narrow construction sites.

Q2: How long does the battery last on a full charge?

A: Continuous working time depends on working load, generally up to 4–6 hours under normal operation.

Q3: What attachments are compatible?

A: Standard bucket, pallet fork, snow blade, log grab and more customized attachments are optional.

Q4: Is it hard to maintain?

A: Much easier than diesel loaders. No engine maintenance; only regular inspection of battery, hydraulic lines and tires.

Q5: Do you support custom colors or logos?

A: Yes, we accept OEM customizations for machine color and brand logo.
