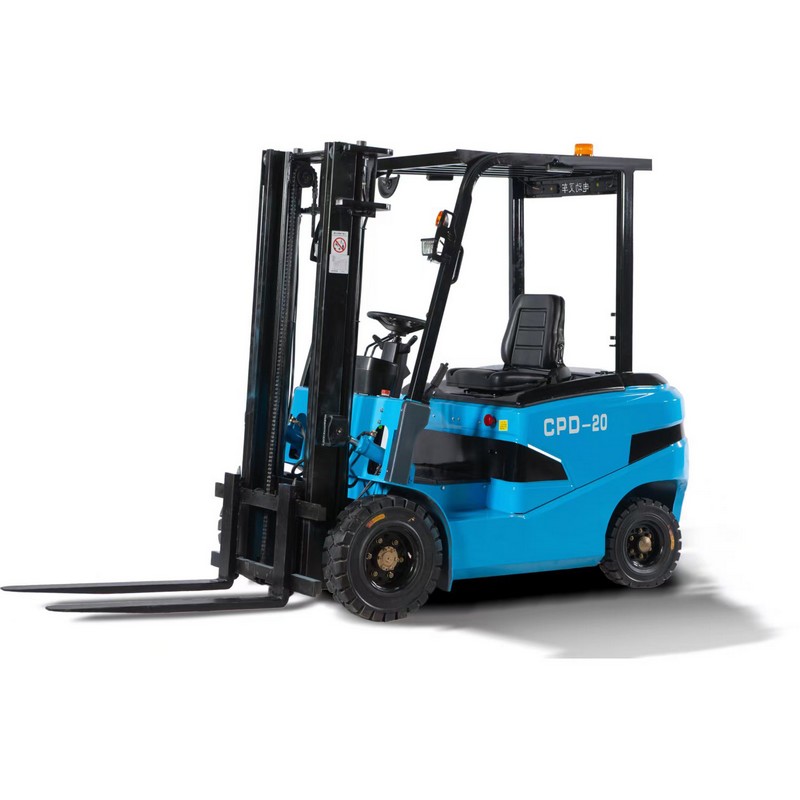

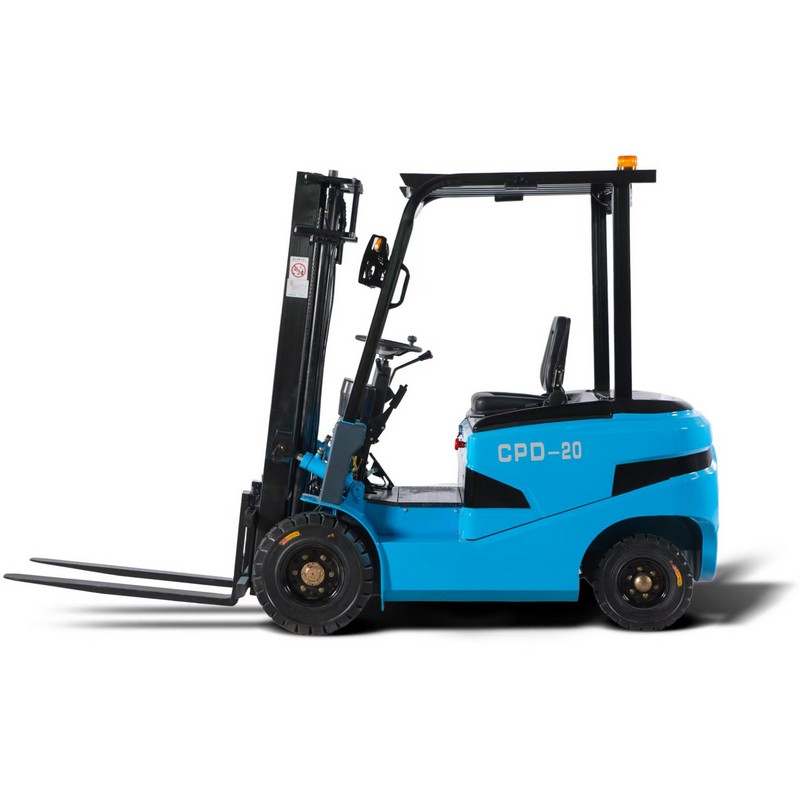

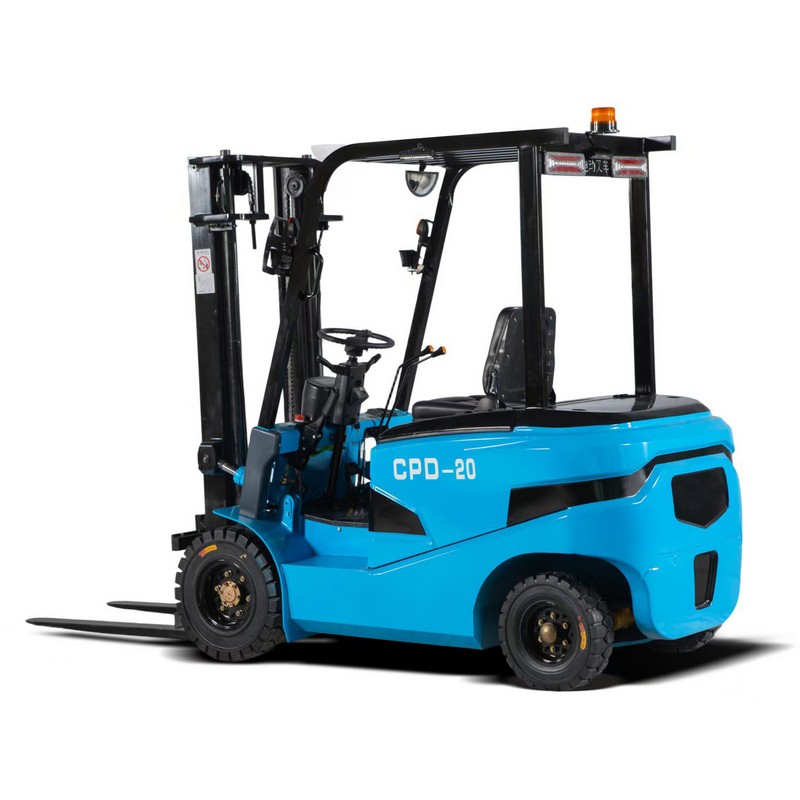

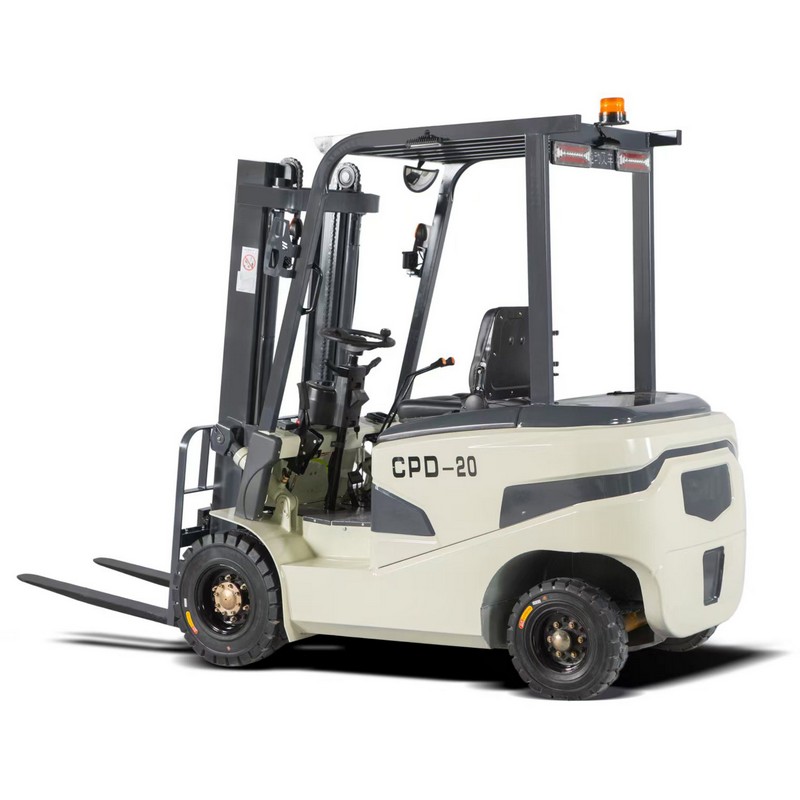

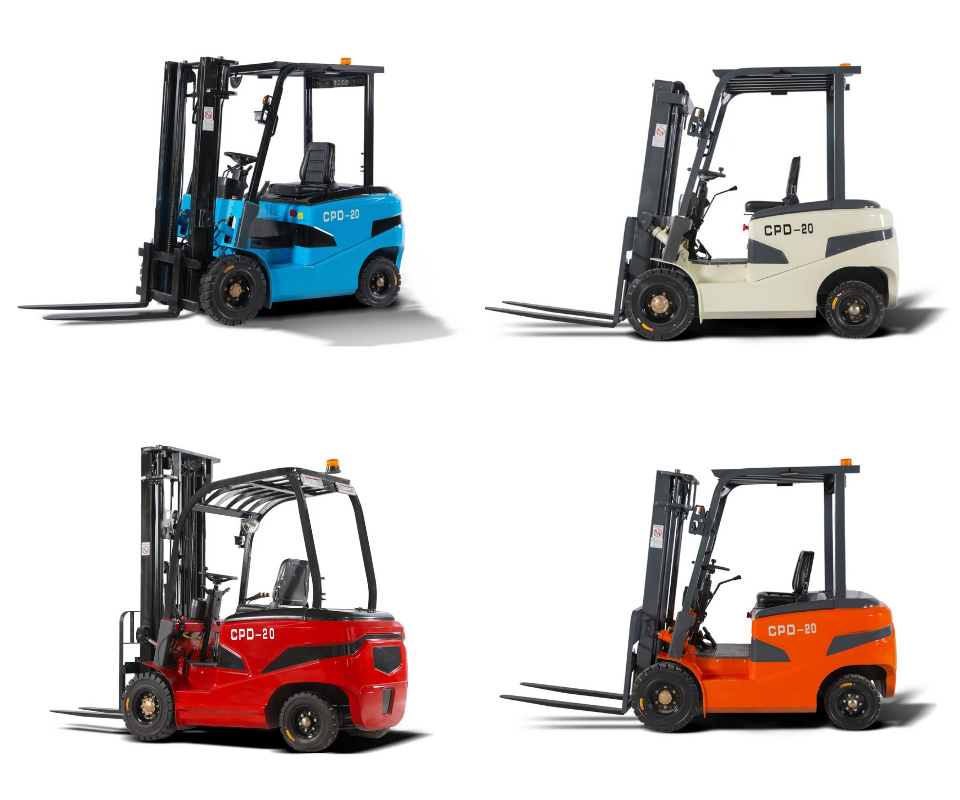

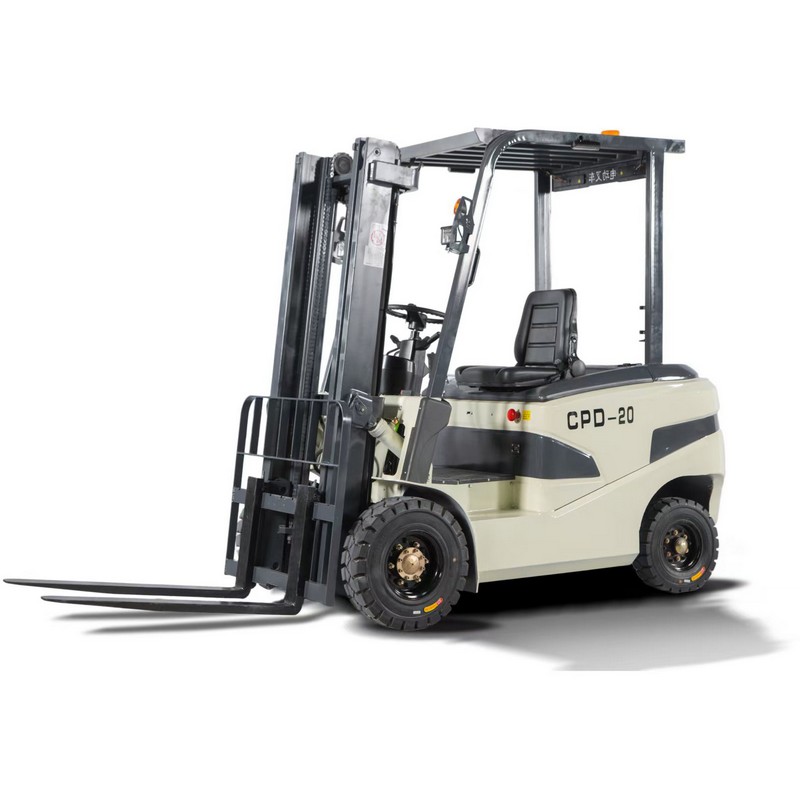

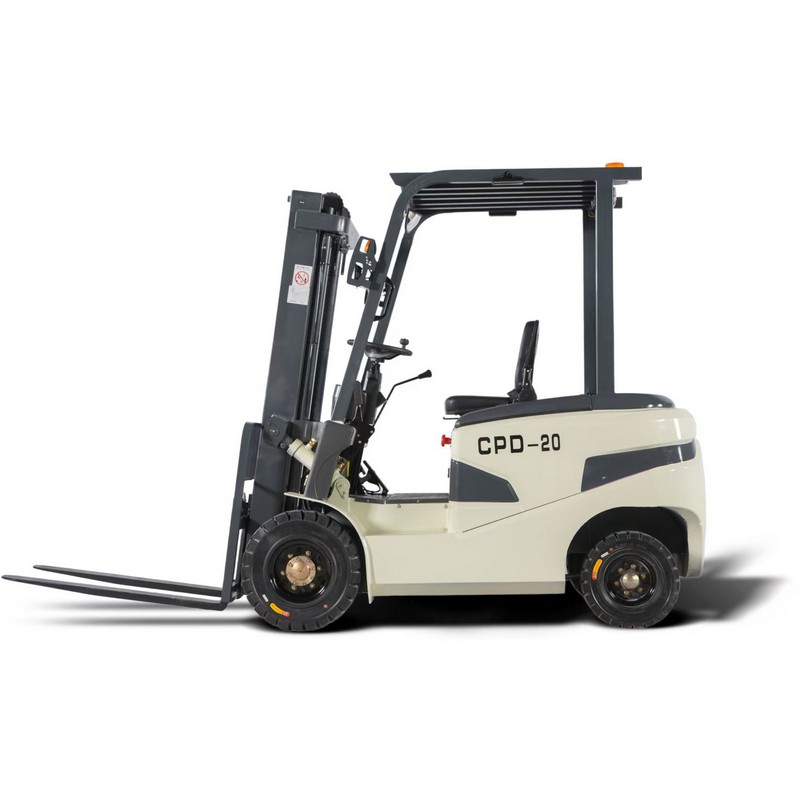

Mini Electric Forklift
• Zero emissions, whisper quiet — run it indoors, in cold storage, or food-grade facilities with no exhaust, no fumes, and no hearing protection.
• Lower total cost — electricity beats diesel per shift, while fewer fluids and no engine mean maintenance costs drop sharply.
• Instant torque, precise handling — smooth acceleration and regenerative braking give finer control for tight racking and delicate loads.
• Compact footprint, big reach — slim turning radius and clear sightlines make narrow aisles and high racks equally easy to master.
Warehouses run on uptime, and our Electric Forklift is built to deliver it — shift after shift, without the noise, fumes, or fuel bills of an ICE truck. The high-efficiency AC drive motor delivers full torque the moment you touch the pedal, so acceleration is instant and grade climbing stays strong even at rated capacity. Whether you're loading outbound trailers, stacking pallets three rows high, or moving fragile goods across a finished-floor facility, the response is smooth, predictable, and easy on the load.
Operator comfort is where the day is won or lost. The spacious, suspended cab (or open ROPS platform on smaller models) pairs a fully adjustable seat with a low-effort, ergonomic control layout — fingertip lift/tilt, a clear multifunction display, and excellent visibility through the mast and around every corner. Fatigue drops, accuracy rises, and new operators are productive by the end of their first shift.
Power comes from a liquid-cooled lithium-ion pack engineered for high-cycle, multi-shift work. A full charge covers a standard 8-hour shift under typical use, and opportunity charging during breaks means you can top up without ever waiting for a full cycle. Regenerative braking recovers energy on every descent and slowdown, quietly stretching your range. When it's time to swap, fast-charge and battery-swap options keep trucks moving instead of parked.
Built to last, the frame uses a reinforced, corrosion-resistant chassis and a sealed drivetrain that shrugs off dust, humidity, and washdowns. There's no engine to overhaul, no oil changes, no DPF to baby — just daily walkaround checks and a machine that holds its resale value. Add fleet telemetry (battery health, fault codes, usage by operator) and you've got a forklift that doesn't just move pallets, but moves your whole operation toward lower carbon and higher margins.
| Technical Specifications | Forklift Truck Type | Electric Counterbalanced 4-Wheel Forklift Truck | Electric Counterbalanced 3-Wheel Forklift Truck | |||||||
| Model | CPD10 | CPD15 | CPD20 | CPD25 | CPD30 | CPD35 | CPD50 | CPDS15 | CPDS20 | |
| Rated Capacity | 1000kg | 1500kg | 2000kg | 2500kg | 3000kg | 3500kg | 5000kg | 1500kg | 2000kg | |
| Length(without forks) | 1800mm | 2200mm | 2100mm | 2530mm | 2600mm | 2750mm | 3180mm | 2050mm | 2220mm | |
| Length(with forks) | 2870mm | 3270mm | 3170mm | 3600mm | 3670mm | 3820mm | 4250mm | 3120mm | 3290mm | |
| Width | 1030mm | 1200mm | 1040mm | 1050mm | 1220mm | 1250mm | 1220mm | 1100mm | 1200mm | |
| Height | 1900mm | 2120mm | 2100mm | 2150mm | 2150mm | 2150mm | 2200mm | 2100mm | 2100mm | |
| Operating Weight / Service Weight | 1800kg | 2500kg | 2800kg | 3300kg | 4000kg | 4500kg | 6000kg | 2300kg | 2800kg | |
| Lift Height | 3m | 3m | 3m | 3m | 3m | 3m | 3m | 3m | 3m | |
| Fork Length(customizable) | 1070mm Extra-Thick Forged Forks | |||||||||
| Gradeability / Max. Gradeability | 20° | |||||||||
| Chassis Material | Reinforced One-Piece Stamped Chassis | |||||||||
| Steering Type | Hydraulic Power Steering | |||||||||
| Mast Carriage / Fork Carriage | Reinforced Carriage Guard | |||||||||
| Lift Cylinder | Dual Lift Cylinders with Enhanced Sealing | |||||||||
| Electrical System | Drive Motor(brushless variable-frequency AC motor) | 3000W | 4000W | 4000W | 5000W | 7500W | 13000W | 16600W | 4000W | 5000W |
| Hydraulic Lift Motor(brushless AC motor) | 3000W | 3000W | 4000W | 5000W | 7500W | 13000W | 15000W | 4000W | 5000W | |
| Controller | High-Power Anti-Rollaway Controller | |||||||||
| Battery | Battery Available as Optional, Configured to Customer Requirements | |||||||||
| Voltage | 60V | |||||||||
| Charging Time | 5-6h | |||||||||
| Lights & Signals | Headlight, left/right turn signals, brake light, running light, instrument panel, electric horn, etc. | |||||||||
| Chassis System | Drive Axle | Fully Floating Integrated Heavy-Duty Low-Speed Drive Axle | ||||||||
| Tires | Solid Wear-Resistant Tires (Front & Rear) | |||||||||
| Steering Axle | Heavy-Duty Forklift-Specific Rear Axle / Steering Axle | |||||||||
| Brake System | Mechanical Parking Brake + Hydraulic Service Brake | |||||||||
| Other Configurations | Custom Body & Mast | Custom Body Dimensions and Lift Height Available to Customer Requirements | ||||||||
| Counterweight | Counterweight Filled with Selected High-Density Alloy Iron Shot | |||||||||
| Standard Accessories | Supplied accessories: onboard charger, fire extinguisher, protective cover, combination lock, seat-activated cut-off switch, LCD instrument panel, parking-brake cut-off switch, explosion-proof valve, solenoid valve, side marker lights, etc. | |||||||||
FAQ
Q: How long does a charge last?
A: Typically a full 8-hour shift under normal warehouse duty; heavy, continuous lifting or ramp work will shorten that. Opportunity charging at breaks extends daily runtime.
Q: Can I fast-charge without hurting the battery?
A: Yes — the pack is designed for opportunity and fast charging, with a smart BMS that manages temperature and cell balance for a long cycle life.
Q: Is it strong enough for outdoor loading docks and ramps?
A: Absolutely. AC drive torque handles grades confidently, and the solid, pneumatic, or cushion tire options let you spec the truck for dock, yard, or indoor-only use.
Q: What capacity and lift height options are available?
A: Common configurations run 1.5–3.5 t with mast options from 3 m to 7 m+ (duplex/triplex/full free lift). Tell us your racking height and we'll spec it exactly.
Q: How does maintenance compare with a diesel or LPG truck?
A: Drastically simpler — no engine oil, filters, spark plugs, or emissions gear. Budget roughly 50–70% less on scheduled maintenance over the life of the truck.
Q: Will it work in cold storage?
A: Yes. The battery and thermal system are rated for low-temperature operation, and with no exhaust it's safe and clean in refrigerated environments.
