LP Gas Forklift
LPG forklifts produce no black smoke during combustion, meeting environmental protection requirements; Their engines are durable with low maintenance costs;
They are suitable for outdoor warehousing and not restricted by temperature;
Fuel refueling is flexible and can be replenished at any time.
LPG forklifts are suitable for multi-shift operations, as fuel replacement does not affect production; they adapt to low-temperature environments and can still operate at -20℃; they are suitable for warehousing and logistics with convenient fuel replenishment; maintenance is simple, reducing downtime.

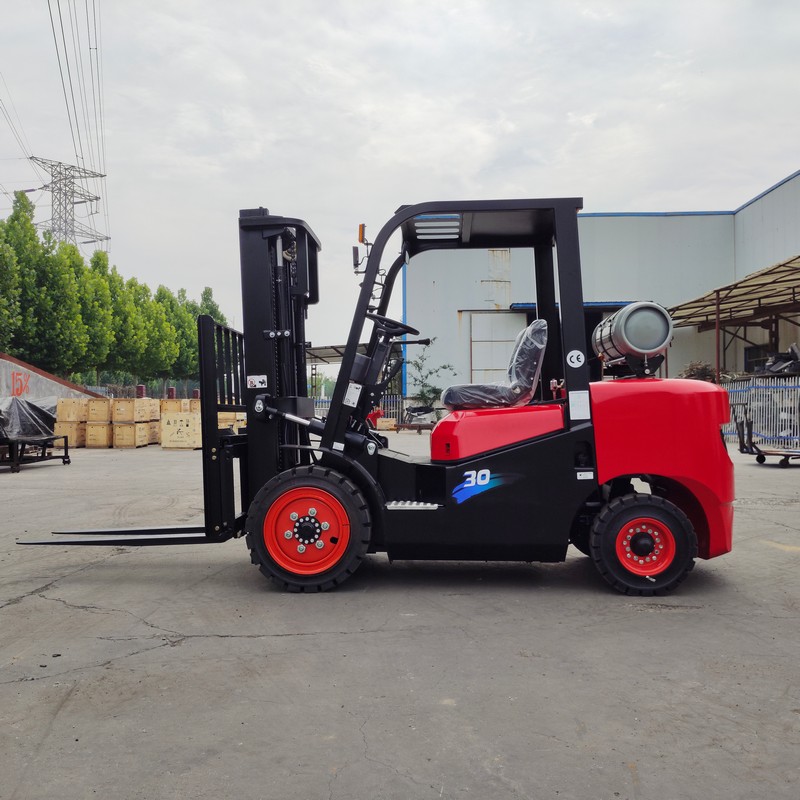

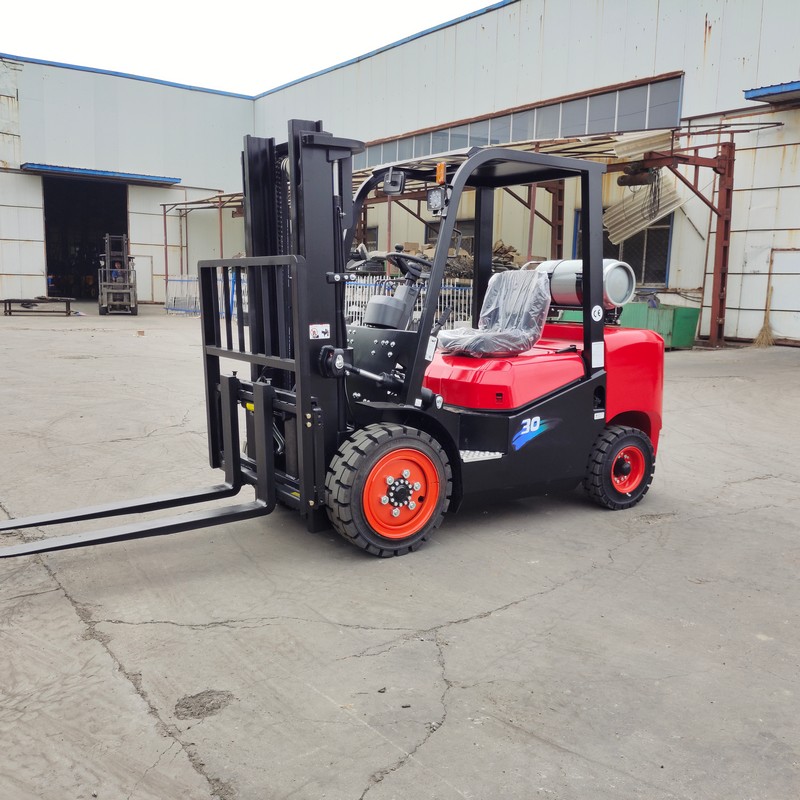

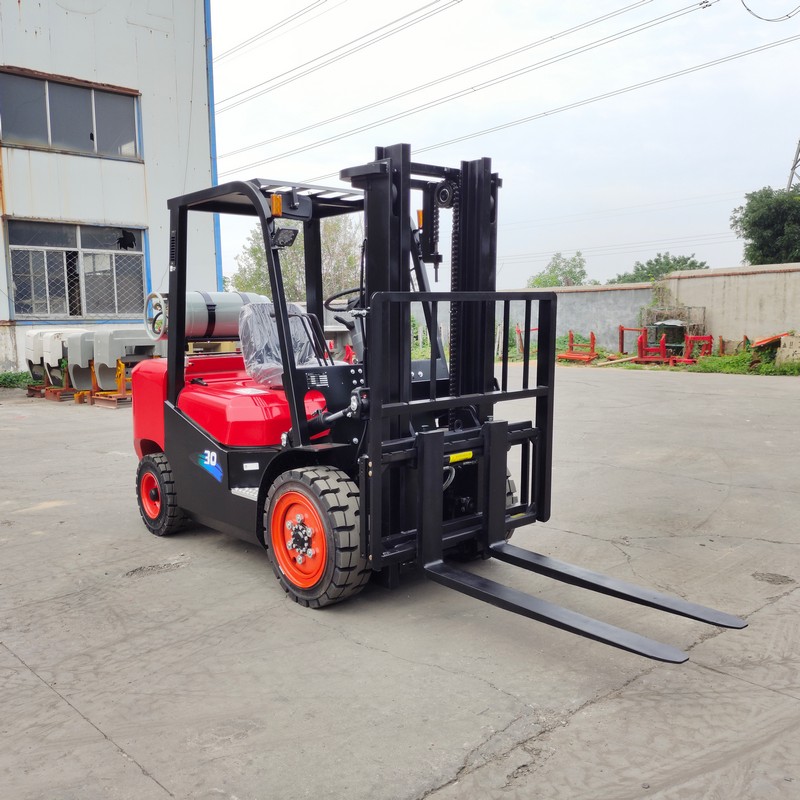

This LPG forklift focuses on high-load handling scenarios, making it ideal for environments requiring frequent heavy lifting such as building materials markets and port transit areas. With stable power and low maintenance costs, it stands as a reliable choice for industrial operations.
Product Parameter
TECHNICAL SPECIFICATIONS | ||||
Performance | Model | CPC30∕CPCD30 | ||
Rated Capacity | kg | 3000 | ||
Load Center | mm | 500 | ||
Power Type | Diesel | |||
Max. Lifting Speed (No-Load / Full-Load) | mm/s | 450∕440 | ||
Max. Driving Speed (Full-Load / No-Load) | km/h | 18∕20 | ||
Max. Towing Capacity | kN | 15.5∕10.5 | ||
Gradeability (Full-Load / No-Load) | % | 15∕20 | ||
Lifting Height | (H1) | mm | 3000 | |
Free Lift Height | mm | 80 | ||
Mast Tilting Angle (Forward-Backward) | （°） | 6∕12 | ||
Min. Turning Radius | mm | 2530 | ||
Min.Right Angle Aisle Width | mm | 2050 | ||
Min. Ground Clearance | mm | 135 | ||

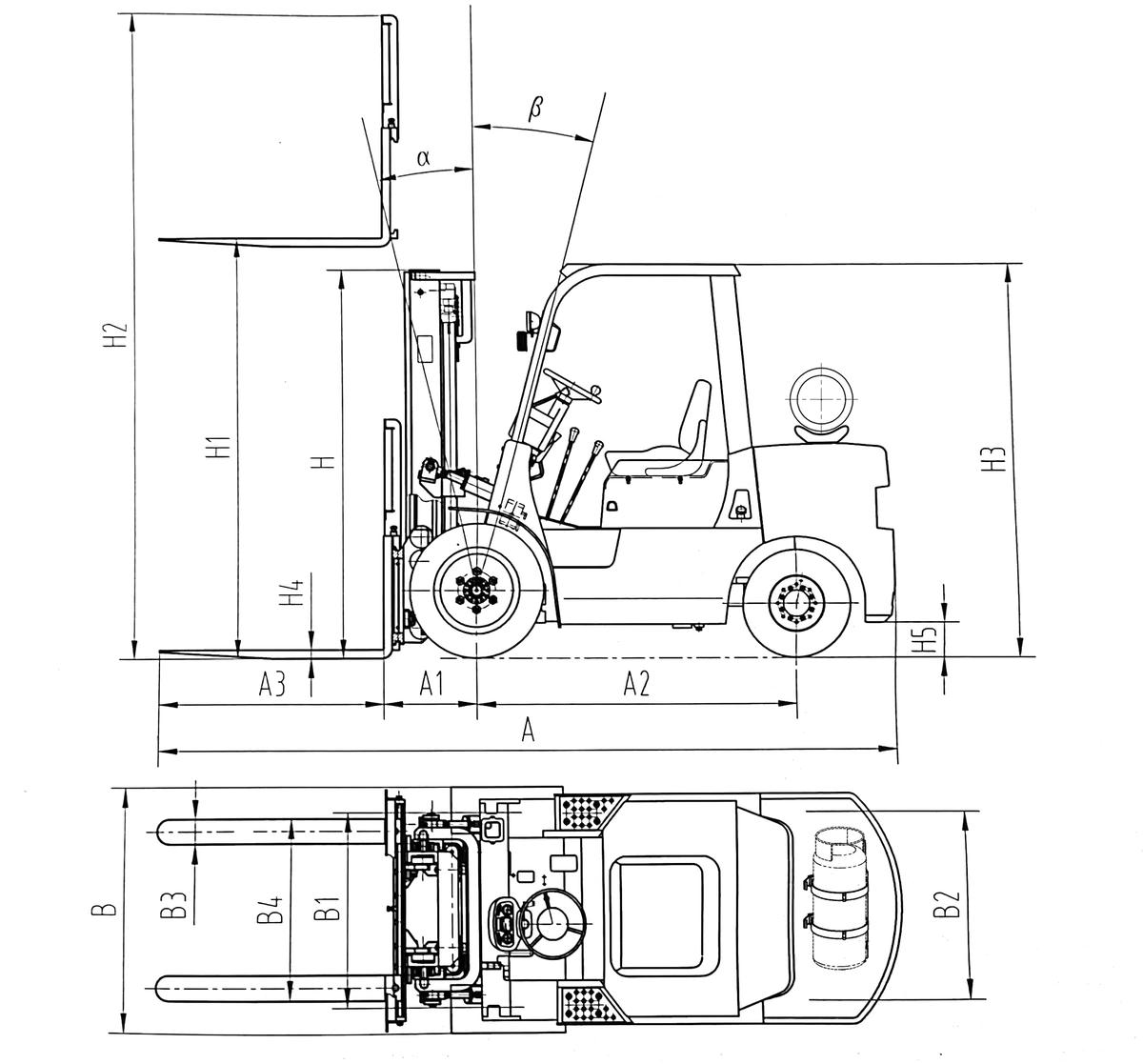

Dimensions | Overall Length (Including Fork) | (A) | mm | 4170 |
Overall Width | (B) | mm | 1230 | |
Overall Height (Mast Lowered) | (H) | mm | 2110 | |
Overall Height (Mast Extended) | (H2) | mm | 4270 | |
Overall Height to Overhead | (H3) | mm | 2105 | |
Front Overhang | (A1) | mm | 465 | |
Wheelbase | (A2) | mm | 1760 | |
Front Tread | (B1) | mm | 1000 | |
Rear Tread | (B2) | mm | 970 | |
Tire | Front Wheel | mm | 28*9-15 | |
Rear Wheel | mm | 6.50-10 | ||
Fork | Fork Width | (B3) | mm | 122 |
Fork Thickness | (H4) | mm | 45 | |
Backrest Height | mm | 1225 | ||
Fork Length | (A3) | mm | 1220 | |
Type of Power Shift | Mechanical∕Hydraulic | |||
Optional LPG Engine | Engine Model | Nissan K25 | ||
Rated Power | kW | 37.4 | ||
Rotate Speed at Rate Power | rpm | 2300 | ||
Max. Torque | Nm | 176.5 | ||
Rotation Speed at Max. Torque | rpm | 1600 | ||
Optional LPG Engine | Engine Model | Guangqing | ||
Rated Power | kW | 39 | ||
Rotate Speed at Rate Power | rpm | 2800 | ||
Max. Torque | Nm | 156 | ||
Rotation Speed at Max. Torque | rpm | 1800 | ||
Optional
1. Engine：
•Standard: Guangqing
•Optional: Nissan (Japan)
2. Mast：
•Standard: 2-stages 3000mm
•Optional: 2-stages and 3-stages full free 4500mm-7500mm mast
3. Fork：
•Standard 1220mm fork
•Optional 1370mm, 1520mm, 1670mm and 1820mm forks;
4. Pneumatic tire and solid tire both available
5. All kinds of forklift attachments available
Why TIGLIFT LPG Forklift？

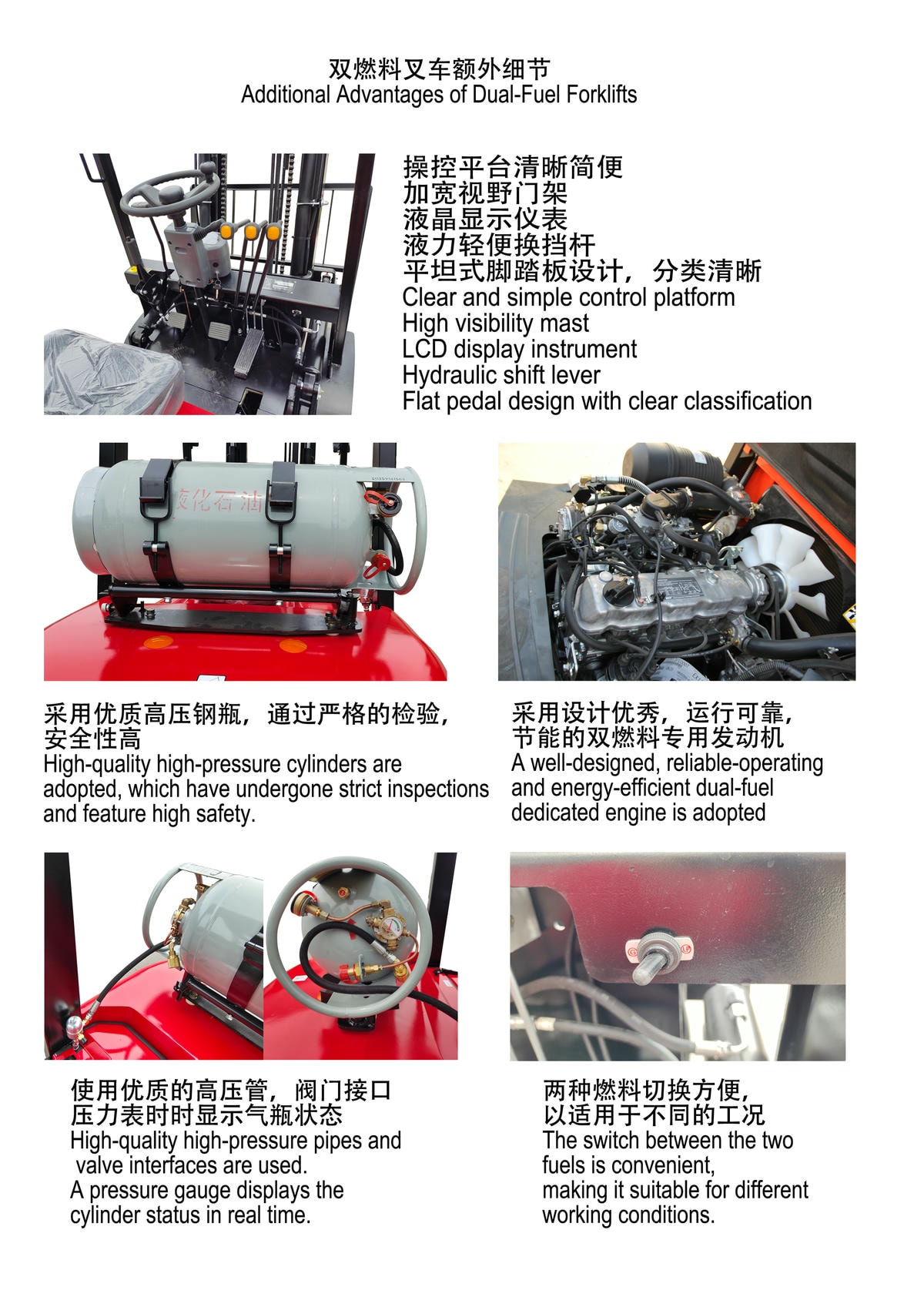

Product Advantages
Optimized Power Performance: The power system is fine-tuned to maintain stable climbing even under full load (maximum climbing angle ≥20°), suitable for operations on complex terrains.

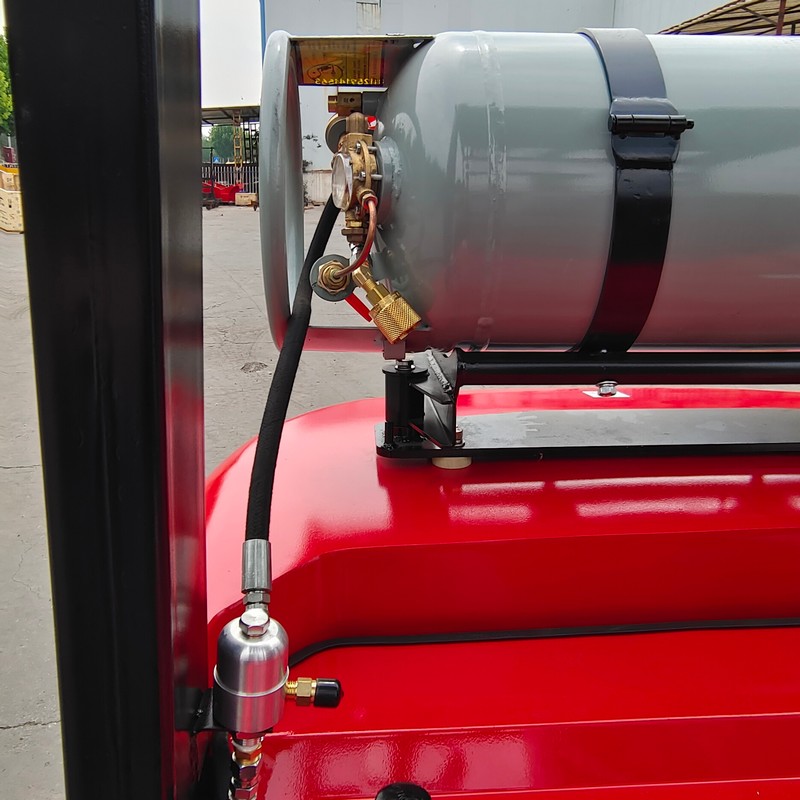

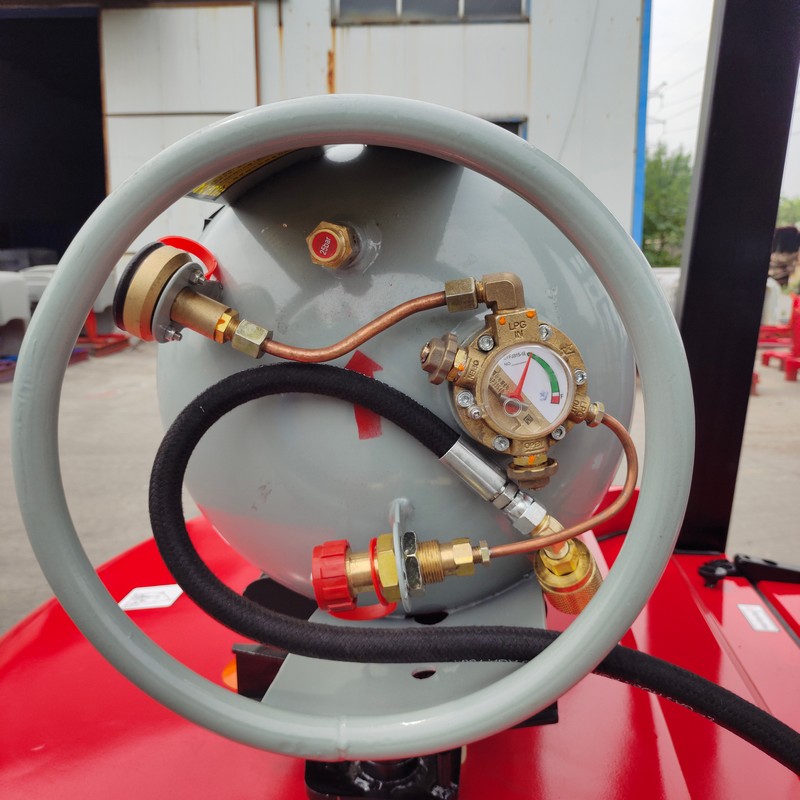

Durable Gas Tank: Made of high-strength steel, the gas tank has passed pressure resistance and seismic tests.
Versatile Fork Compatibility: Forks can be quickly replaced (compatible with standard, wide-leg, and multi-directional forks) to adapt to different pallet specifications.
Stable Design: The overall center of gravity is reasonably positioned, preventing rollover during full-load driving and enhancing operational stability.
Strength of the Manufacturing Plant
With over 20 years of forklift manufacturing experience, the plant is one of the largest material handling equipment production bases in the region. Critical processes (such as frame welding and hydraulic system assembly) implement a "one person, one post" responsibility system. It has obtained ISO 9001 quality management system certification and EU CE certification, with products exported to more than 60 countries worldwide.

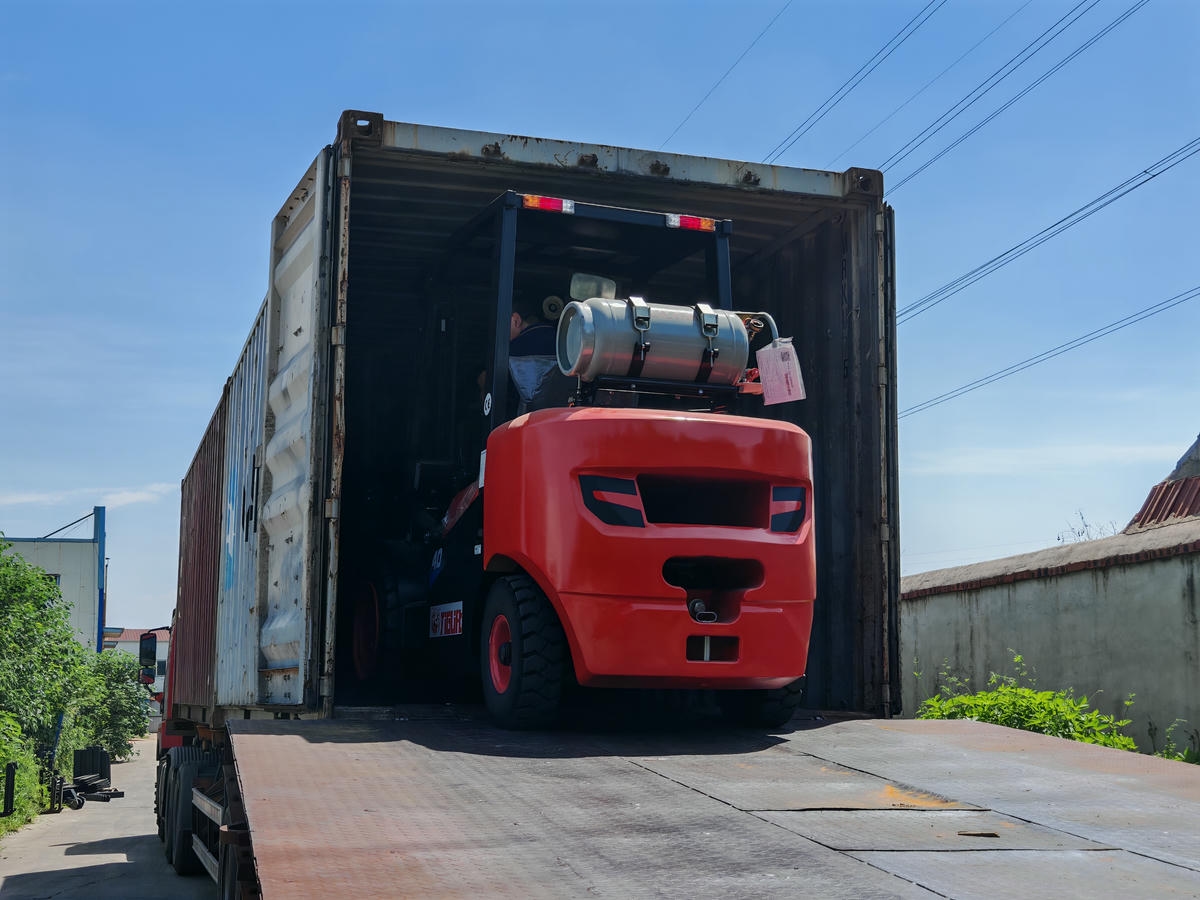

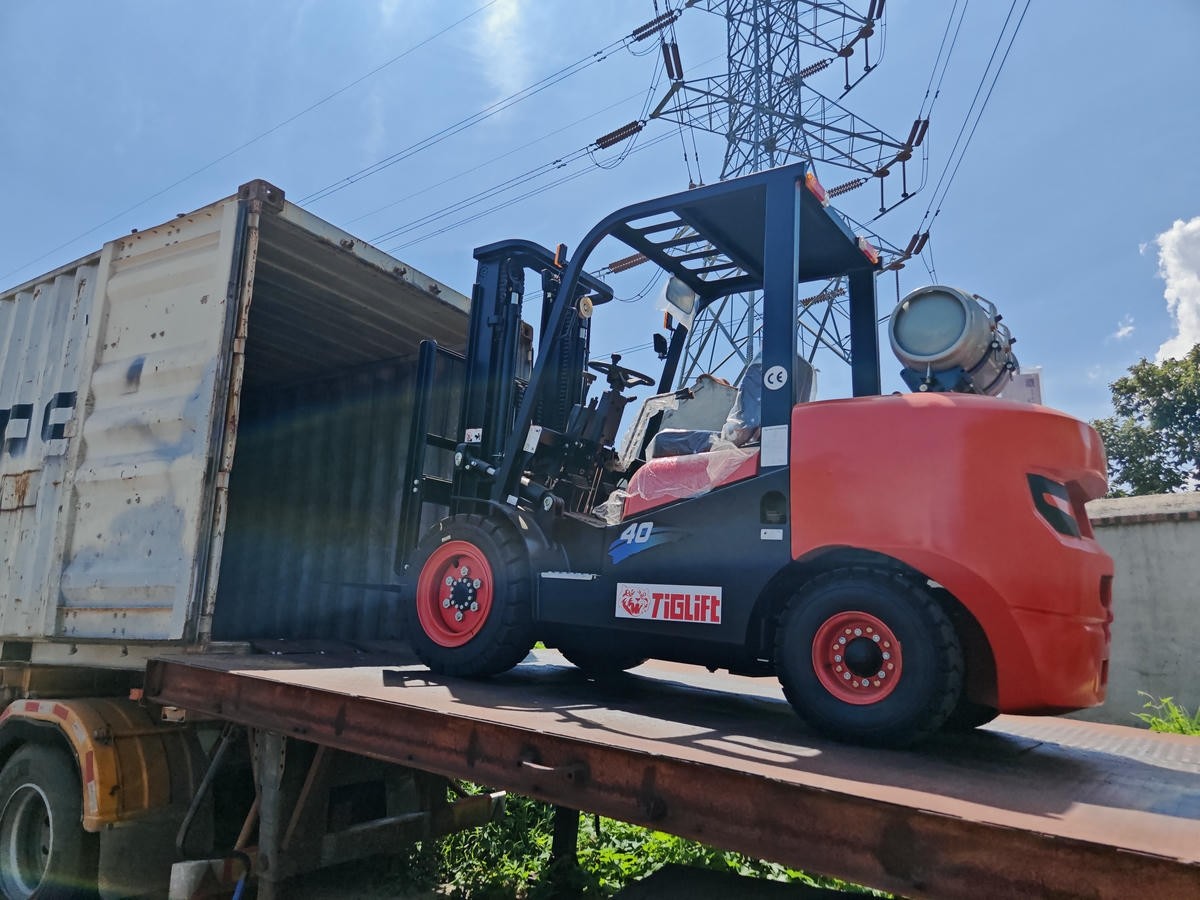

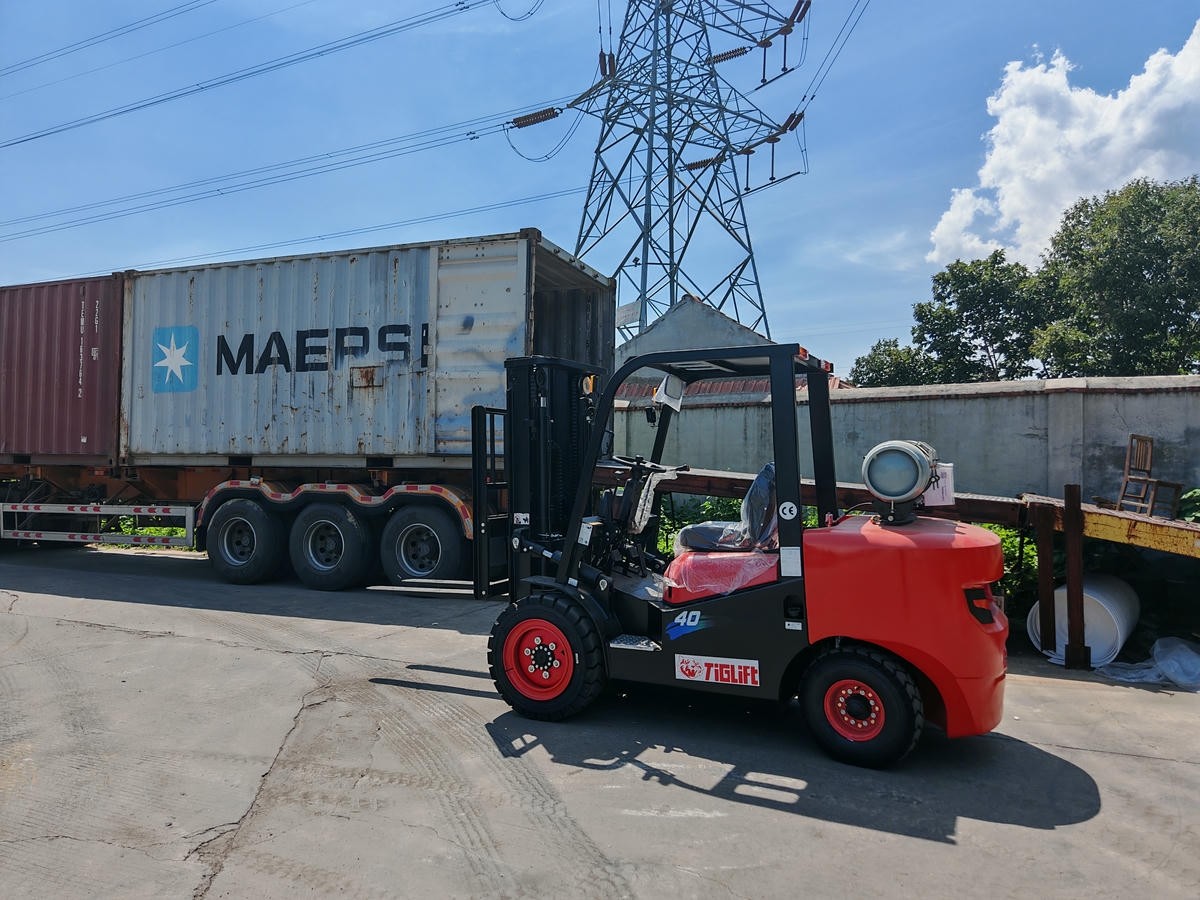

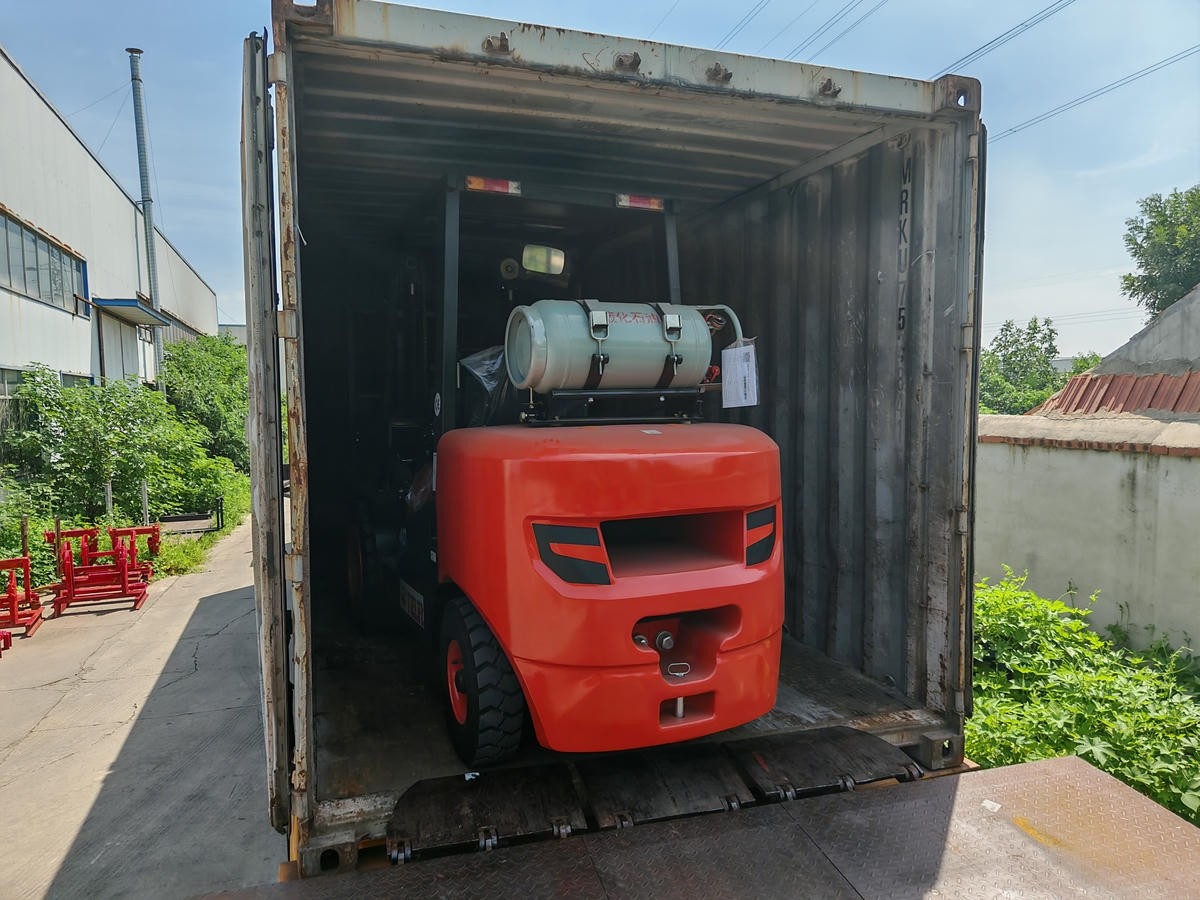

Delivery Photos
Shipping Services
Long-term partnerships with major international logistics giants enable diverse transportation solutions, including sea freight (supporting FOB, CIF, DDP, and other trade terms), land transport (for neighboring markets), and railway transport.
Customized packaging for large orders (e.g., layered fixation of forks, independent packaging of gas tanks) prevents collision damage during transportation.
Provides photos and videos of goods for confirmation before shipment to ensure accurate delivery.
Complete customs clearance documents (including CE certificates, certificates of origin, and test reports) are provided to assist customers in completing import procedures quickly.
After-Sales Service
Offers operation manuals and video installation guides for easy onboarding.
Urgent spare parts are shipped via cooperative air logistics with priority.
Regularly sends maintenance reminders to overseas customers (e.g., gas tank inspection cycles, filter replacement recommendations) and enhances customers’ independent maintenance capabilities through online training.
