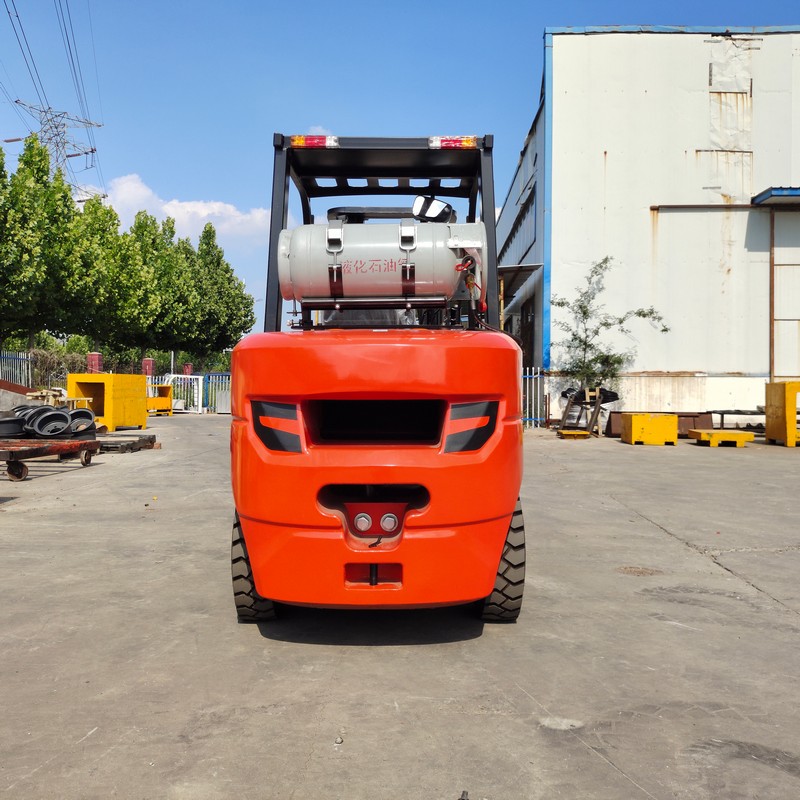

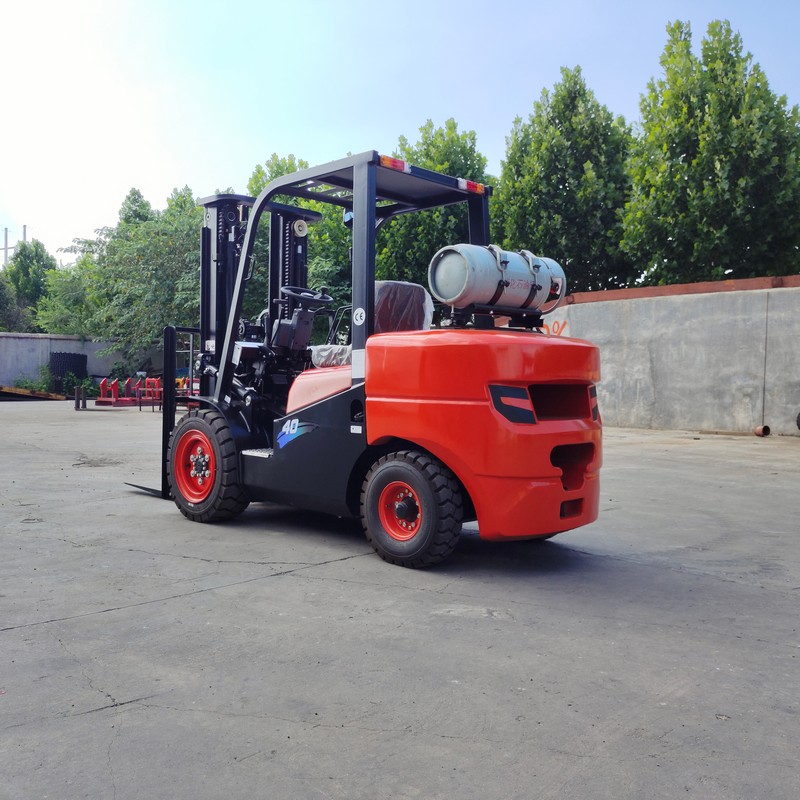

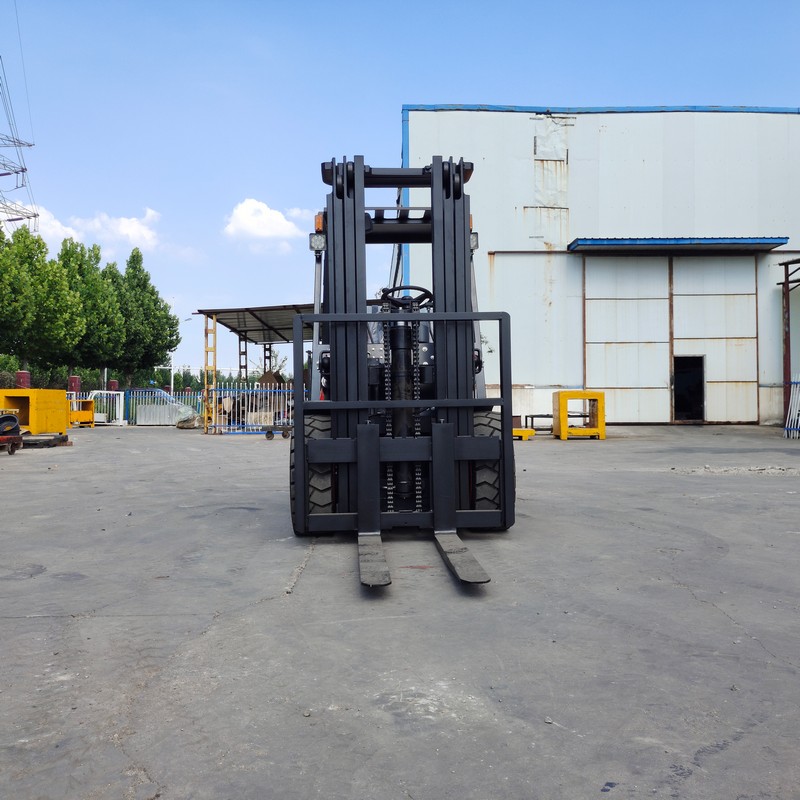

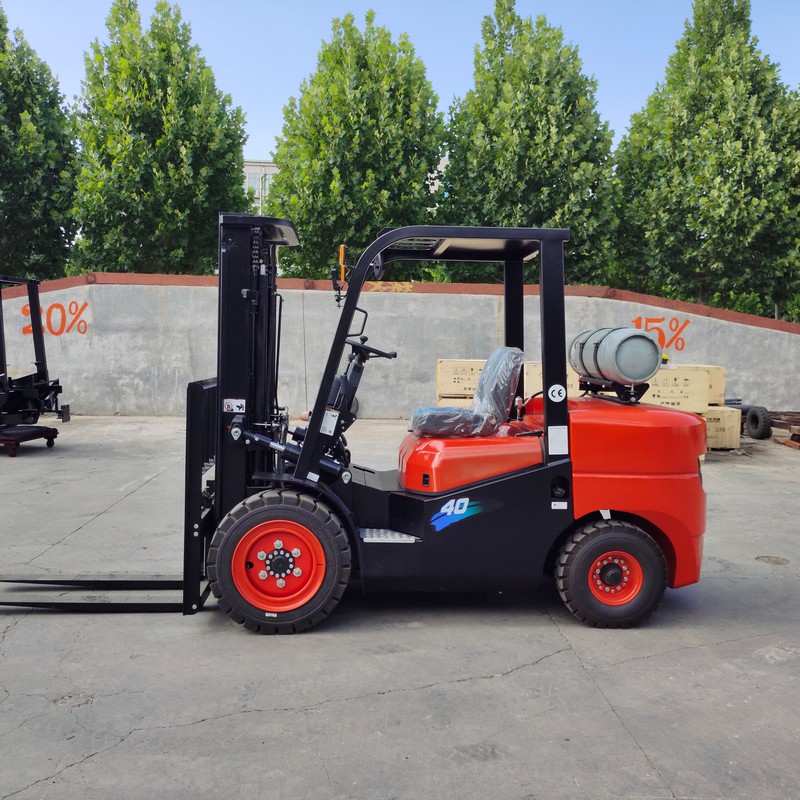

LPG Forklift Truck
LPG Forklift reducing exhaust pollution; the engine has high torque, making heavy-load handling easier;
Fuel storage is safe with no leakage risk;
It is suitable for long-distance transportation and has better endurance than electric forklifts.
LPG forklifts feature low fuel costs, saving 20% compared to diesel; they have low maintenance expenses and no need to replace batteries; they are suitable for long-term use with a high residual value rate; fuel refueling is fast, improving equipment utilization.
This LPG forklift, centered on "economic efficiency," is specifically designed for small and medium-sized enterprises and the warehouse rental industry. It combines low operational costs with high reliability, helping customers reduce comprehensive logistics and handling expenses.
Product Parameter
TECHNICAL SPECIFICATIONS | ||||
Performance | Model | CPC40∕CPCD40 | ||
Rated Capacity | kg | 4000 | ||
Load Center | mm | 500 | ||
Power Type | Diesel | |||
Max. Lifting Speed (No-Load / Full-Load) | mm/s | 470∕420 | ||
Max. Driving Speed (Full-Load / No-Load) | km/h | 18∕20 | ||
Max. Towing Capacity | kN | 16.5∕11.5 | ||
Gradeability (Full-Load / No-Load) | % | 15∕20 | ||
Lifting Height | (H1) | mm | 3000 | |
Free Lift Height | mm | 80 | ||
Mast Tilting Angle (Forward-Backward) | (°) | 6∕12 | ||
Min. Turning Radius | mm | 2540 | ||
Min.Right Angle Aisle Width | mm | 2050 | ||
Min. Ground Clearance | mm | 135 | ||
Dimensions | Overall Length (Including Fork) | (A) | mm | 4170 |
Overall Width | (B) | mm | 1230 | |
Overall Height (Mast Lowered) | (H) | mm | 2130 | |
Overall Height (Mast Extended) | (H2) | mm | 4270 | |
Overall Height to Overhead | (H3) | mm | 2130 | |
Front Overhang | (A1) | mm | 465 | |
Wheelbase | (A2) | mm | 1735 | |
Front Tread | (B1) | mm | 1000 | |
Rear Tread | (B2) | mm | 970 | |
Tire | Front Wheel | mm | 2.50-15 | |
Rear Wheel | mm | 6.50-10 | ||
Fork | Fork Width | (B3) | mm | 122 |
Fork Thickness | (H4) | mm | 50 | |
Backrest Height | mm | 1225 | ||
Fork Length | (A3) | mm | 1220 | |
Type of Power Shift | Mechanical∕Hydraulic | |||
Optional LPG Engine | Engine Model | Nissan K25 | ||
Rated Power | kW | 37.4 | ||
Rotate Speed at Rate Power | rpm | 2300 | ||
Max. Torque | Nm | 176.5 | ||
Rotation Speed at Max. Torque | rpm | 1600 | ||
Optional LPG Engine | Engine Model | Guangqing | ||
Rated Power | kW | 39 | ||
Rotate Speed at Rate Power | rpm | 2800 | ||
Max. Torque | Nm | 156 | ||
Rotation Speed at Max. Torque | rpm | 1800 |
Optional
1. Engine:
•Standard: Guangqing
•Optional: Nissan (Japan)
2. Mast:
•Standard: 2-stages 3000mm
•Optional: 2-stages and 3-stages full free 4500mm-7500mm mast
3. Fork:
•Standard 1220mm fork
•Optional 1370mm, 1520mm, 1670mm and 1820mm forks;
4. Pneumatic tire and solid tire both available
5. All kinds of forklift attachments available
Why TIGLIFT LPG Forklift?
Product Advantages
Cost-Effective Fuel: LPG fuel costs are lower than diesel or gasoline, and no additional exhaust treatment devices are required, resulting in significant long-term economic benefits.
Reduced Maintenance: The maintenance cycle is long, requiring only regular replacement of filters and lubricating oil, thus minimizing downtime.
User-Friendly Operation: The interface is simple and intuitive (the instrument panel displays remaining gas volume and fault codes), allowing new operators to get started after short-term training.
Durable Design: The body is coated with anti-corrosion materials, adapting to harsh environments such as humidity and dust.
Strength of the Manufacturing Plant
With over 20 years of focus on small and medium-tonnage forklift production, the plant owns independent intellectual property rights in power matching technology, ensuring maximum LPG combustion efficiency. It is equipped with a professional quality inspection team; each forklift must pass three verifications—"load testing, braking testing, and air tightness testing"—after final assembly. Raw material procurement is strictly screened (e.g., first-tier brand steel is used, and imported oil-resistant materials are adopted for seals), ensuring product quality from the source.
Delivery Photos
International Shipping Services
Supports "door-to-door" full logistics services (factory → port → customer warehouse), offering two options: sea freight LCL (suitable for small-batch orders) and full container shipping (suitable for bulk purchases).
Vulnerable components (such as gas tank interfaces and hoses) are individually packaged with warning labels.
Confirms destination port policies with customers before shipment (e.g., import restrictions on LPG equipment) and prepares compliance documents in advance.
Provides a cargo tracking system, allowing customers to check the transportation status in real-time.
International After-Sales Service
Establishes overseas customer files, recording the delivery time, usage scenarios, and maintenance records of each forklift.
Offers free repairs for non-human-damaged faults within the warranty period.
Maintains transparent pricing for spare parts, ensuring customers can obtain cost-effective maintenance support.
