Electric Forklift Truck
Lithium battery forklifts are simple to maintain, requiring only daily cleaning and inspection;
They have no complex transmission systems like those in diesel engines;
The motor has a simple structure and a low failure rate;
The battery usually comes with a 3-5 year warranty, ensuring more peace of mind during use.
Lithium battery forklifts meet the requirements of green factories; they emit no PM2.5, improving air quality; their low-noise characteristic ensures that night operations do not disturb residents; there are no risks associated with fuel transportation and storage, making safety management simpler.
Product Parameter
TECHNICAL SPECIFICATIONS | |||
Model | CPD30 | ||
Rated Capacity | kg | 3000 | |
Load Center | mm | 500 | |
Power Type | Lithium Battery | ||
Driving Type | Ride-on Type | ||
Wheelbase | (A2) | mm | 1760 |
Front Tread | (B1) | mm | 1000 |
Rear Tread | (B2) | mm | 970 |
Front Overhang | (A1) | mm | 465 |
Mast Tilting Angle (Forward-Backward) | ° | 6∕12 | |
Max. Lifting Height | (H1) | mm | 3000 |
Free Lift Height | mm | 80 | |
Overall Height (Mast Lowered) | (H) | mm | 2110 |
Overall Height (Mast Extended) | (H2) | mm | 4270 |
Overall Height to Overhead | (H3) | mm | 2105 |
Overall Length (Including Fork) | (A) | mm | 4060 |
Overall Width | (B) | mm | 1230 |
Min. Ground Clearance | mm | 135 | |
Min. Turning Radius | mm | 2530 | |
Fork Dimensions (L×W×T) | mm | 122*45*1220 | |
Max. Driving Speed (No-Load) | km/h | 14 | |
Max. Driving Speed (Full-Load) | km/h | 13 | |
Max. Lifting Speed (Full-Load / No-Load) | mm/s | 270∕300 | |
Gradeability (Full-Load / No-Load) | % | 15∕20 | |
Tire Type (Front/Rear) | Pneumatic Tire | ||
Tire Size (Front/Rear) | 28*9-15-14PR/6.50-10-10PR | ||
Drive Motor Power (S2-60min) | kW | 14 | |
Lifting Motor Power (S3-15%) | kW | 16 | |
Drive Motor Type | AC | ||
Lifting Motor Type | AC | ||
Hydraulic System Pressure | MPa | 18 | |
Battery (Voltage/Capacity) | V/Ah | 76.8V/205Ah | |
Self-Weight | kg | 4100 | |
Optional
1. Mast：
•Standard: 2-stages 3000mm
•Optional: 2-stages and 3-stages full free 4500mm-7500mm mast
2. Fork：
•Standard 1220mm fork
•Optional 1370mm, 1520mm, 1670mm and 1820mm forks;
3. Pneumatic tire and solid tire both available
4. All kinds of forklift attachments available
Why TIGLIFT Electric Forklift？
Product Advantages
Designed for construction sites (e.g., handling building materials and moving equipment), this electric forklift offers robust performance tailored to rugged environments:
Power & Terrain Adaptability: Strong power to handle 1-3 tons of cargo, with excellent performance on uneven surfaces (such as gravel and sand). Equipped with four-wheel drive and large off-road tires (optional studded tires), it achieves a 25% climbing capacity.
Versatile Attachments: Forks can be quickly replaced with flat brackets (for building materials), log clamps (for raw wood), and other accessories to meet diverse construction needs.
Operator Protection: The cab features splash guards and reinforced glass, shielding operators from cement dust and debris.
Battery Performance: Long battery life (4-6 hours of operation on a full charge) and fast-charging function (80% charge in 1 hour) minimize downtime.
Strength of the Manufacturing Plant
With 20 years of focus on engineering electric forklift manufacturing, the plant excels in:
Forks and frame welding strength reaching 1.5 times the industry standard, ensuring durability under heavy loads.
A R&D team collaborating with construction enterprises to optimize power matching, with low-speed torque increased by 15% for better performance in tough conditions.
Compliance with international construction equipment safety certifications, guaranteeing reliability on job sites.
Shipping
For full container shipments, off-road tires and accessories are individually secured to prevent collision deformation during transportation. Upon arrival at the port, a "Quick Commissioning Guide" (including tire pressure adjustment instructions) is provided.
To meet transportation needs of construction sites in Southeast Asia, Africa, etc., a completely knocked-down (CKD) solution is available, allowing local partner factories to complete assembly quickly.

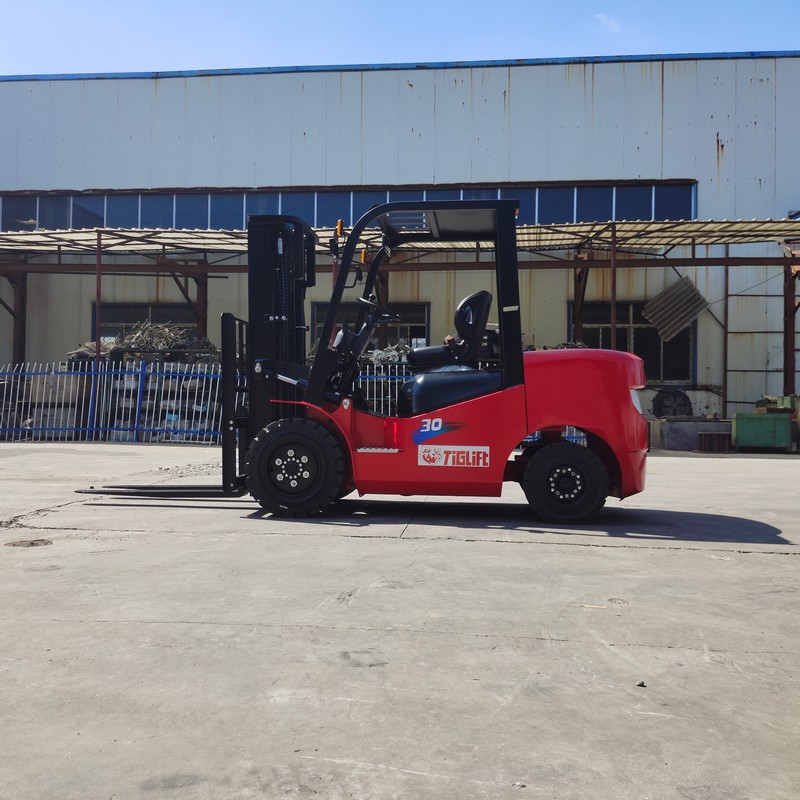

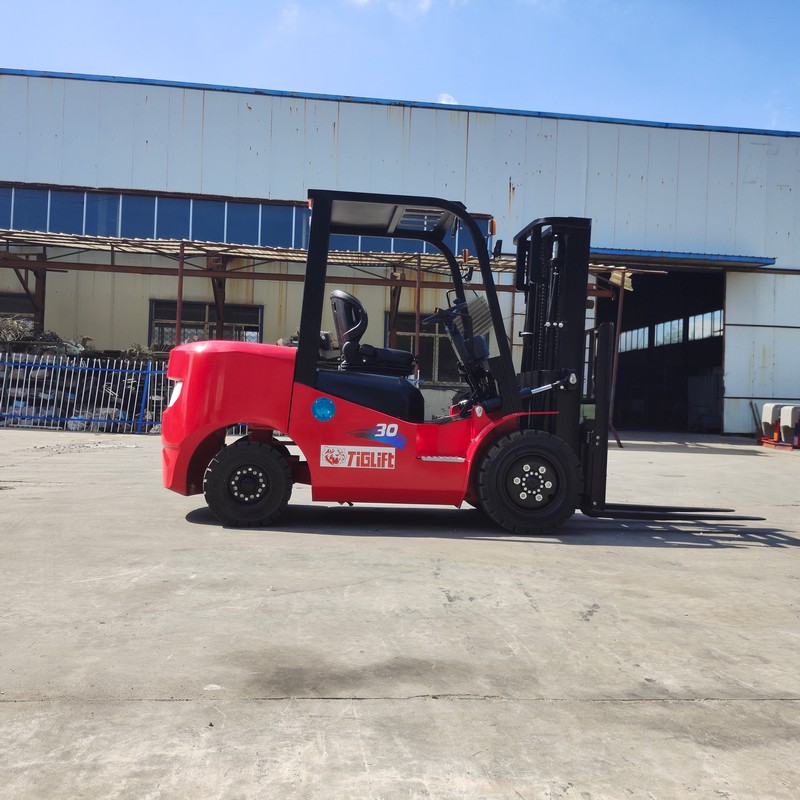

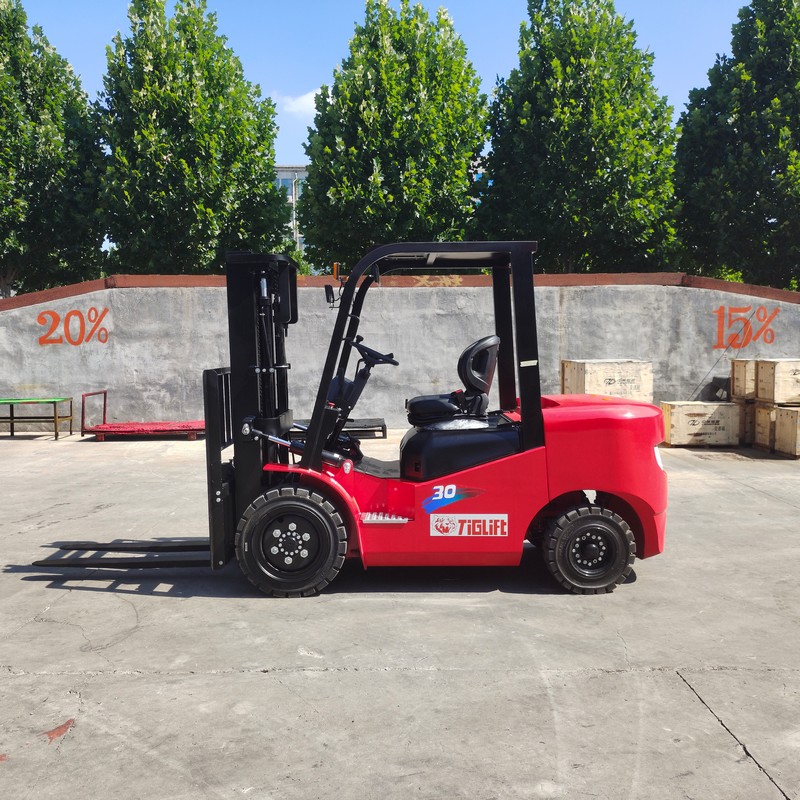

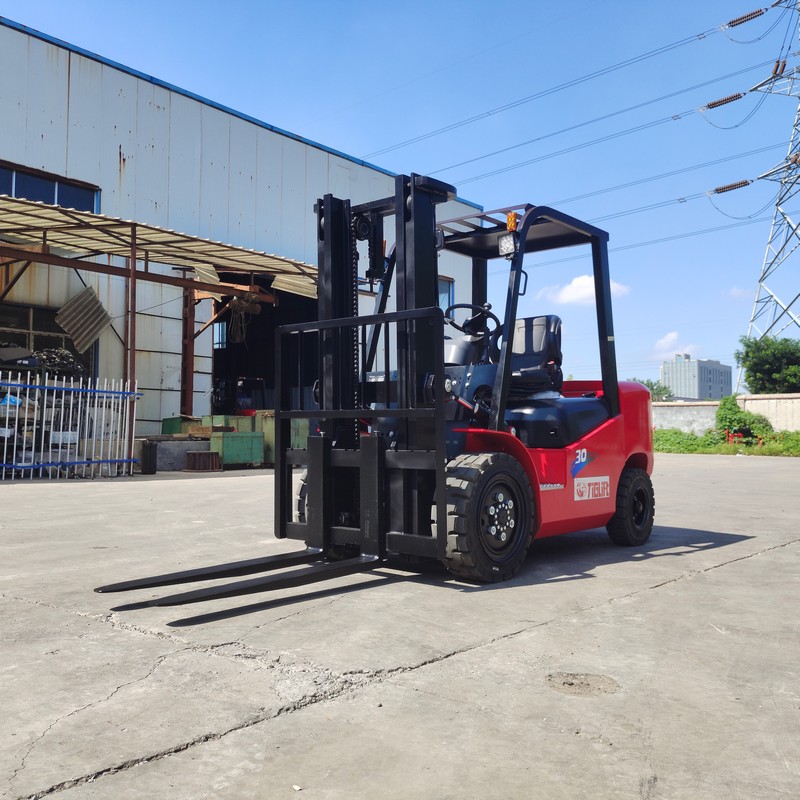

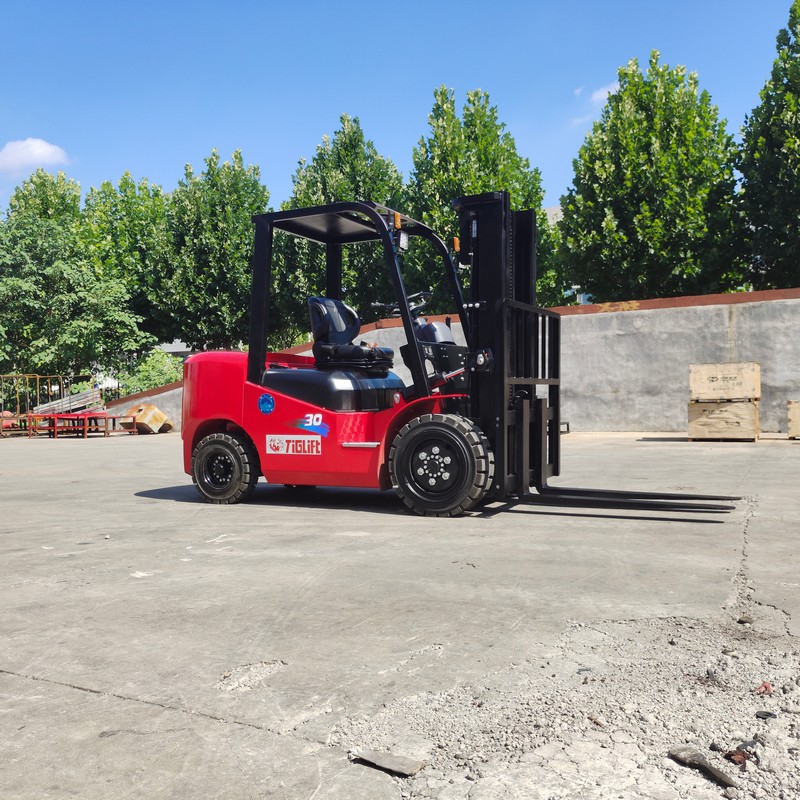

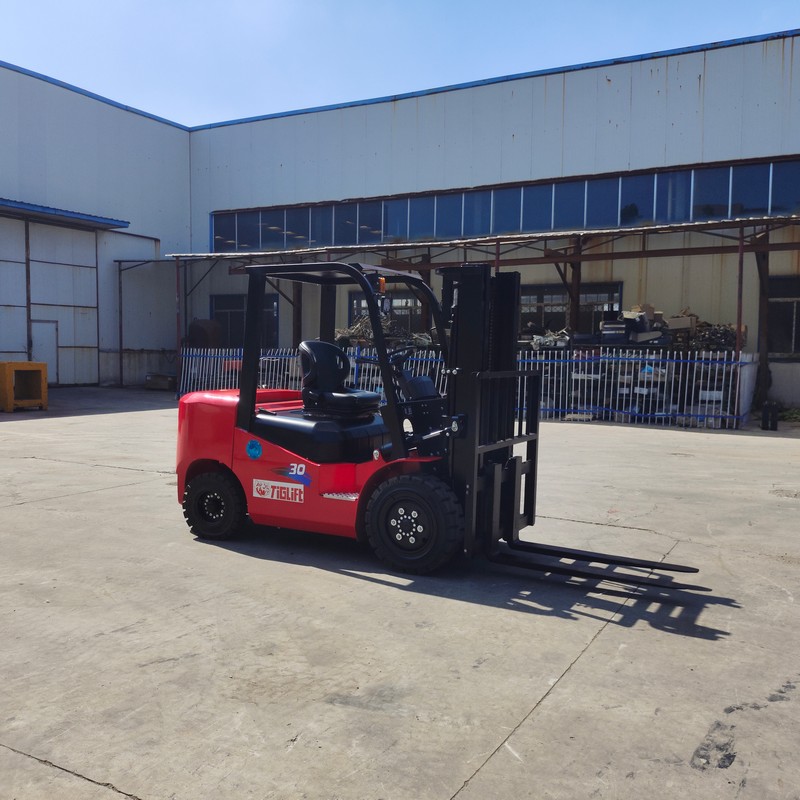

Delivery Photos
After-Sales Service
Warranty: 1-year warranty period.
Maintenance Support: Provides on-site maintenance packages (e.g., regular cleaning of air filters) to suit construction site conditions.
Spare Parts: Common accessories (such as log clamps and flat brackets) are stocked in parts warehouses, with delivery to construction sites within 10 working days.
Remote Assistance: A remote team can guide operators via video to handle issues like equipment getting stuck.
