Electric Lift Truck
Lithium battery forklifts are simple to maintain, requiring only daily cleaning and inspection;
They have no complex transmission systems like those in diesel engines;
The motor has a simple structure and a low failure rate;
The battery usually comes with a 3-5 year warranty, ensuring more peace of mind during use.
Lithium battery forklifts meet the requirements of green factories; they emit no PM2.5, improving air quality; their low-noise characteristic ensures that night operations do not disturb residents; there are no risks associated with fuel transportation and storage, making safety management simpler.
Product Parameter

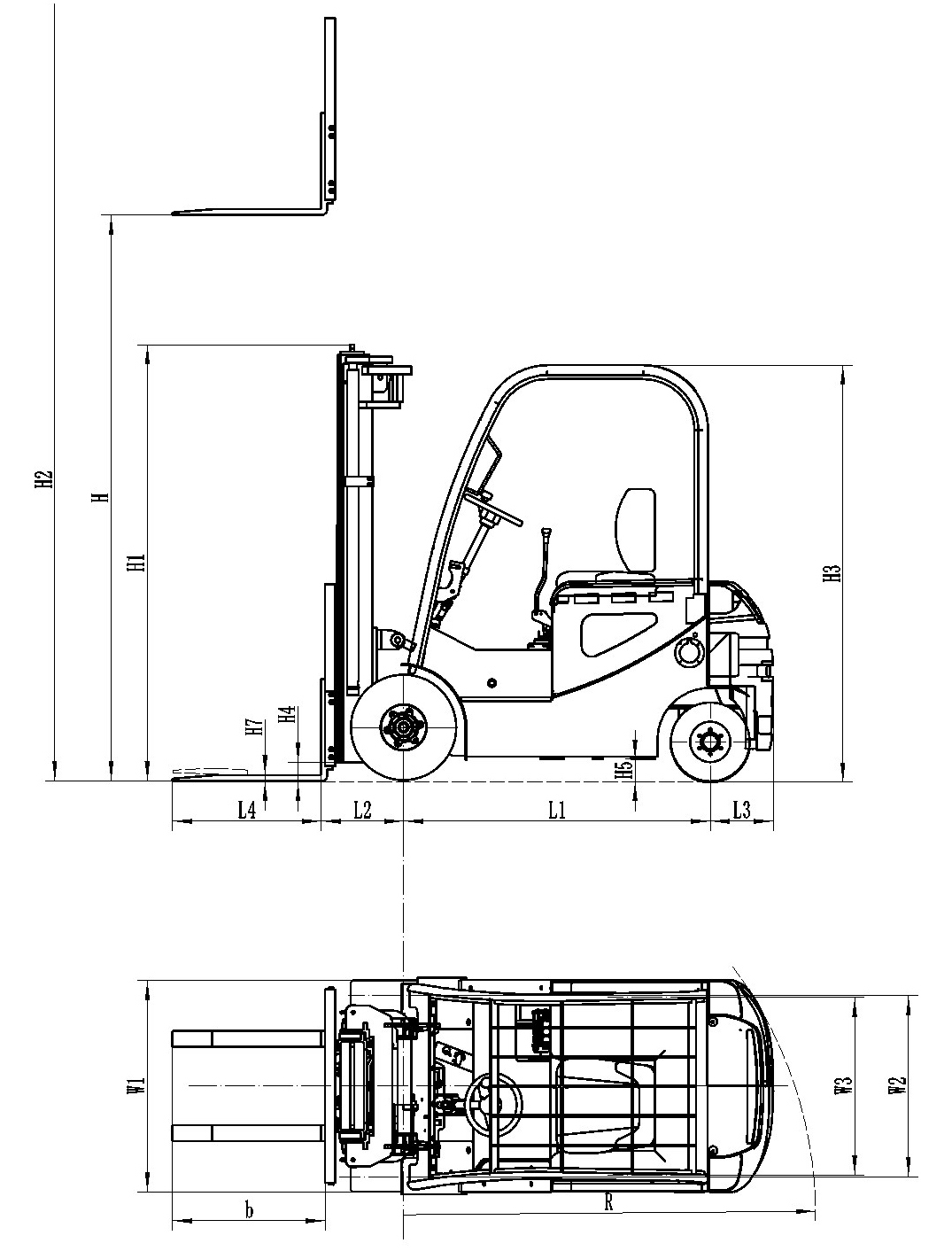

TECHNICAL SPECIFICATIONS | |||
Model | CPD25 | ||
Rated Capacity | kg | 2500 | |
Load Center | mm | 500 | |
Power Type | Lithium Battery | ||
Driving Type | Ride-on Type | ||
Wheelbase | L1 | mm | 1550 |
Front Tread | W2 | mm | 945 |
Rear Tread | W3 | mm | 880 |
Front Overhang | L2 | mm | 325 |
Mast Tilting Angle (Forward-Backward) | ° | 5∕10 | |
Max. Lifting Height | H | mm | 3000 |
Free Lift Height | H7 | mm | 105 |
Overall Height (Mast Lowered) | H1 | mm | 2200 |
Overall Height (Mast Extended) | H2 | mm | 4055 |
Overhead Guard Height | H3 | mm | 2110 |
Overall Length (Including Fork) | mm | 3400 | |
Overall Length (Without Fork) | mm | 2300 | |
Overall Width | W1 | mm | 1096 |
Min. Ground Clearance | H4 | mm | 88 |
Min. Turning Radius | mm | 2220 | |
Fork Dimensions (L×W×T) | mm | 1070*100*40 | |
Max. Driving Speed (No-Load) | km/h | 14 | |
Max. Driving Speed (Full-Load) | km/h | 12 | |
Max.Lifting Speed(Full-Load/No-Load) | mm/s | 270∕300 | |
Descending Speed (Full-Load / No-Load) | mm/s | 400∕350 | |
Gradeability (Full-Load / No-Load) | (%) | 15∕20 | |
Total Weight | kg | 3200 | |
Number of Wheels (X = Driving Wheels (Front/Rear)) | 2∕2 | ||
Tire Type (Front/Rear) | Solid Tire | ||
Tire Size (Front/Rear) | 6.5-10 16*6.8 | ||
Driving Brake | Hydraulic-Foot Step Type | ||
Parking Brake | Mechanical-Manual | ||
Driving Motor Power (S2-60min) | kW | 6 | |
Lifting Motor Power (S3-15%) | kW | 7.5 | |
Driving Motor Control Mode | AC | ||
Lifting Motor Control Mode | AC | ||
Hydraulic System Pressure | MPa | 18 | |
Battery Capacity | V/Ah | 76.8V/205Ah | |
Optional
1. Mast：
•Standard: 2-stages 3000mm
•Optional: 2-stages and 3-stages full free 4500mm-7500mm mast
2. Fork：
•Standard 1220mm fork
•Optional 1370mm, 1520mm, 1670mm and 1820mm forks;
3. Pneumatic tire and solid tire both available
4. All kinds of forklift attachments available
Why TIGLIFT Electric Forklift？
Product Advantages
Tailor-made for paper mills (e.g., paper roll handling and waste paper processing), this electric forklift offers features that align with the industry’s unique needs:
Eco-Friendly Performance: Zero emissions meet environmental upgrading requirements, eliminating exhaust pollution to keep workshop air clean.
Stable & Quiet Operation: The power system runs smoothly with noise below 68 decibels, ensuring no interference with papermaking production lines.
Paper Roll Compatibility: Forks can be quickly adjusted in width to fit different specifications of paper roll pallets; lifting is stable (with an error of ±1 cm) to prevent paper rolls from slipping.
Terrain Adaptability: Four-wheel drive and large-size inflatable tires (solid tires optional) perform well on workshop concrete floors and slightly bumpy roads.
Battery & Maintenance: Equipped with high-capacity lithium iron phosphate batteries (long-lasting, 6-8 hours of operation on a full charge), it features low maintenance costs, with daily inspections taking only 10 minutes.
Strength of the Manufacturing Plant
With 20 years of focus on industrial electric forklift manufacturing, the plant boasts:
Forks and frames with anti-wear coatings 1.5 times the industry standard, ensuring durability in frequent paper roll handling.
A R&D team that collaborates with paper-making enterprises to optimize functions—for example, adding paper roll fixing buckle interfaces to enhance stability.
Compliance with international paper-making equipment safety certifications (e.g., standards from the China Paper Association).

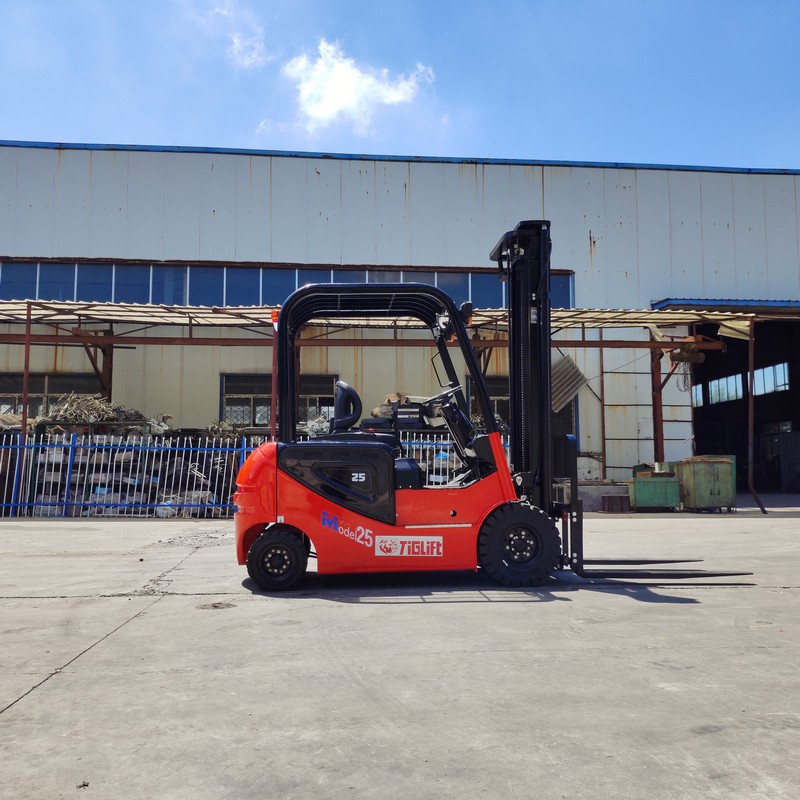

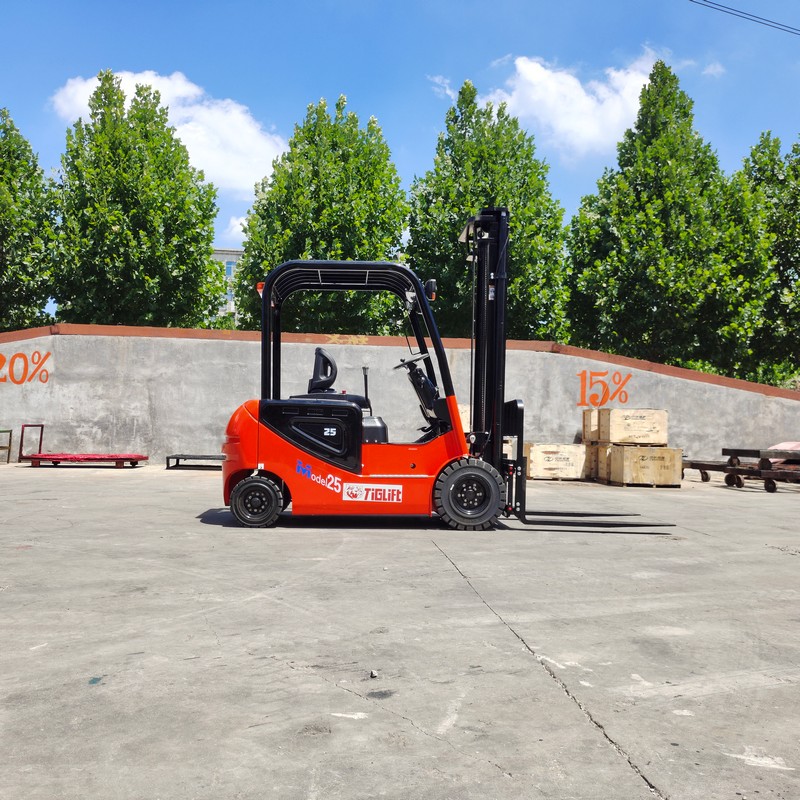

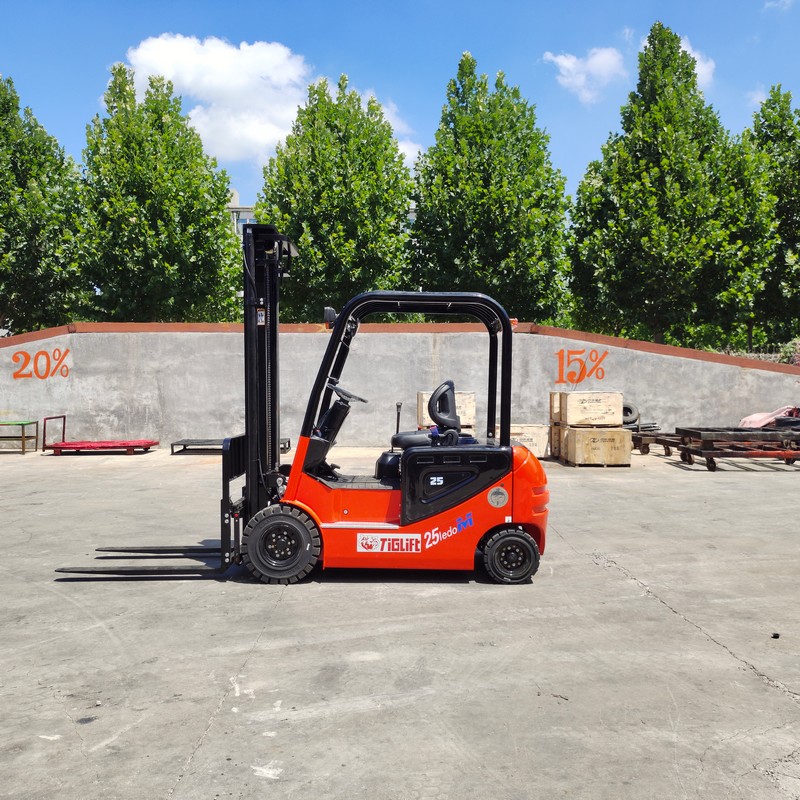

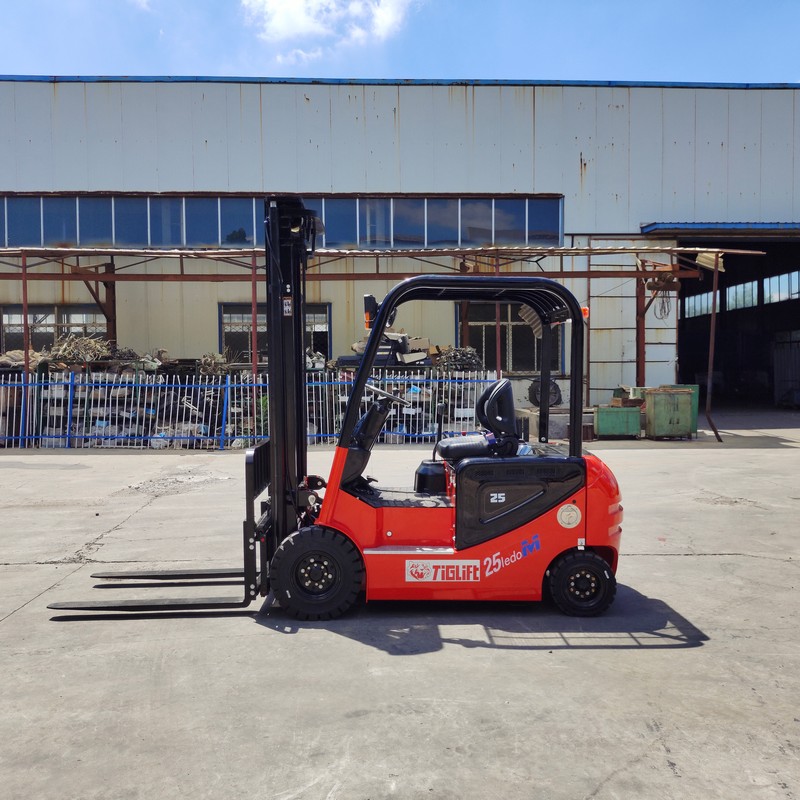

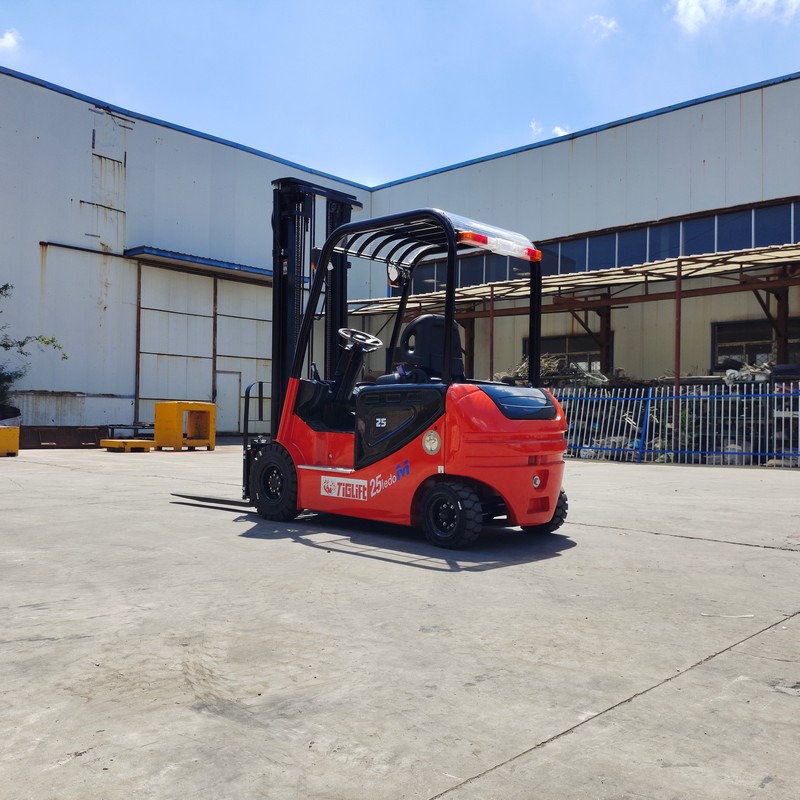

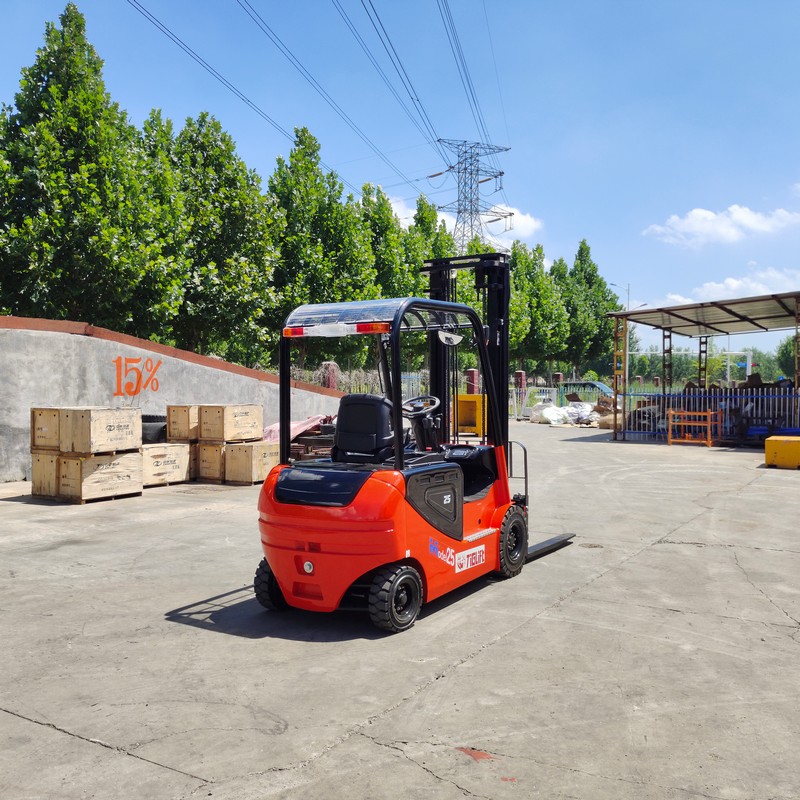

Delivery Photos
Shipping Services
For full container shipments, paper roll handling accessories (such as anti-slip mats and clamps) are individually packaged to prevent scratches. Upon arrival at the port, a "Quick Commissioning Guide" (including instructions for securing paper rolls) is provided.
To meet transportation needs in Southeast Asia, a moisture-proof packaging upgrade (with inner waterproof film) is available to protect equipment from humid environments.
