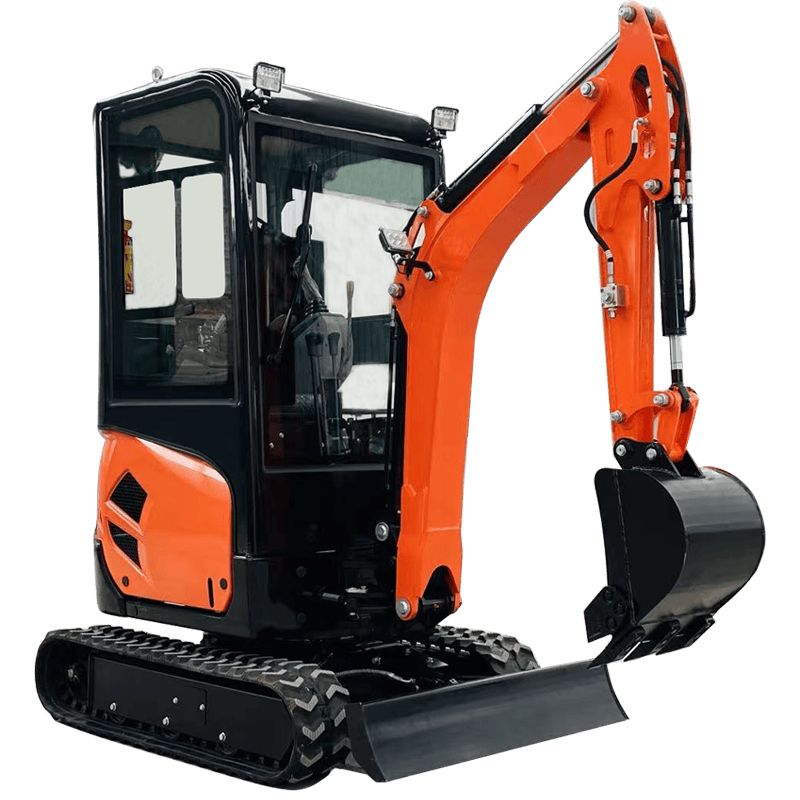

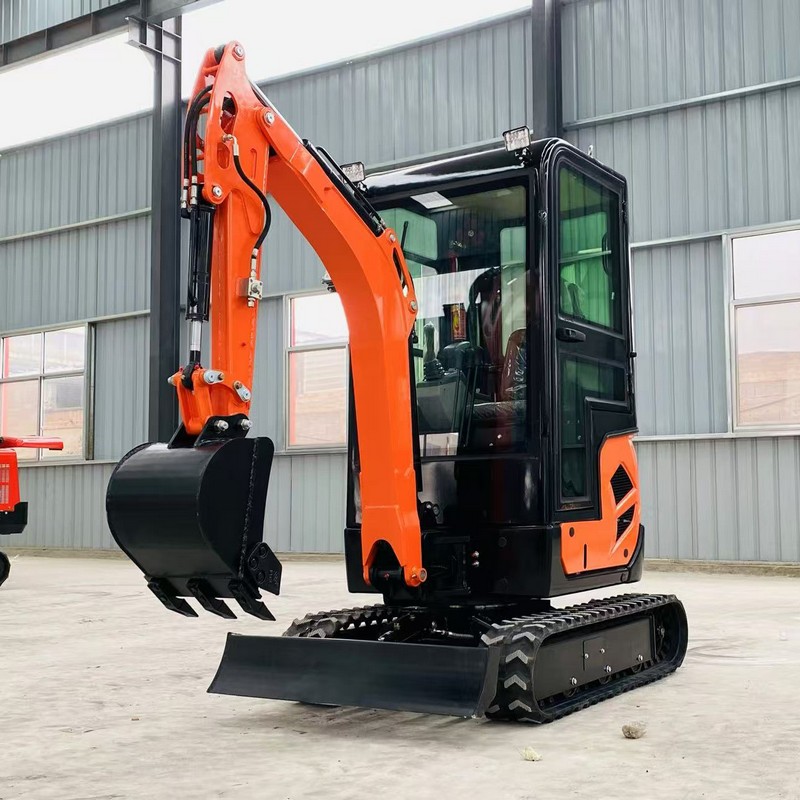

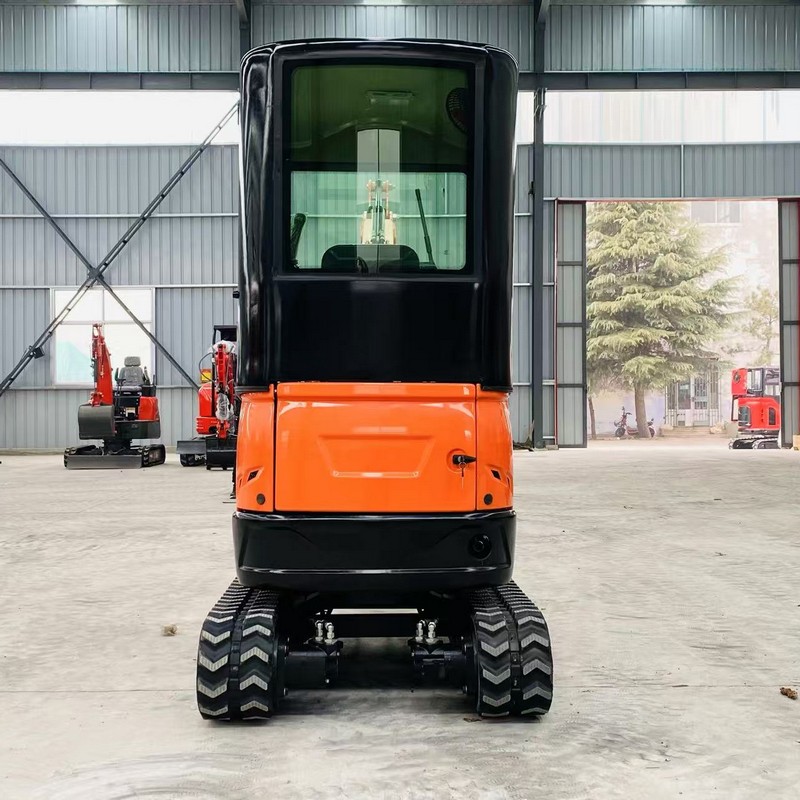

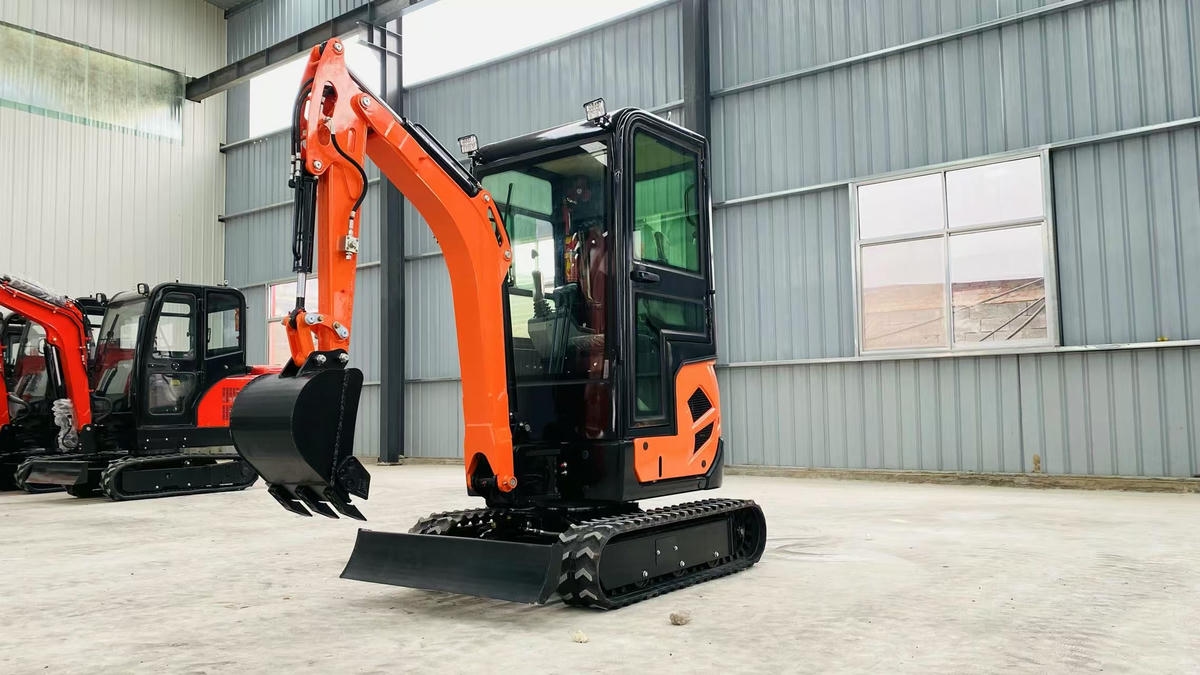

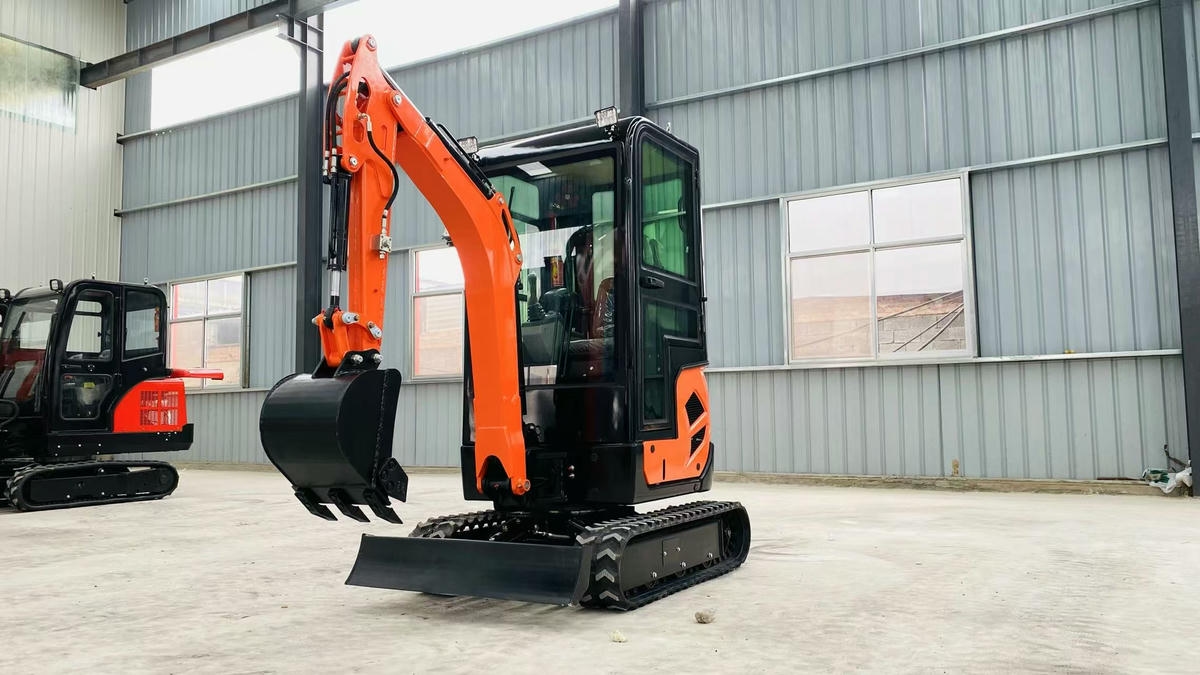

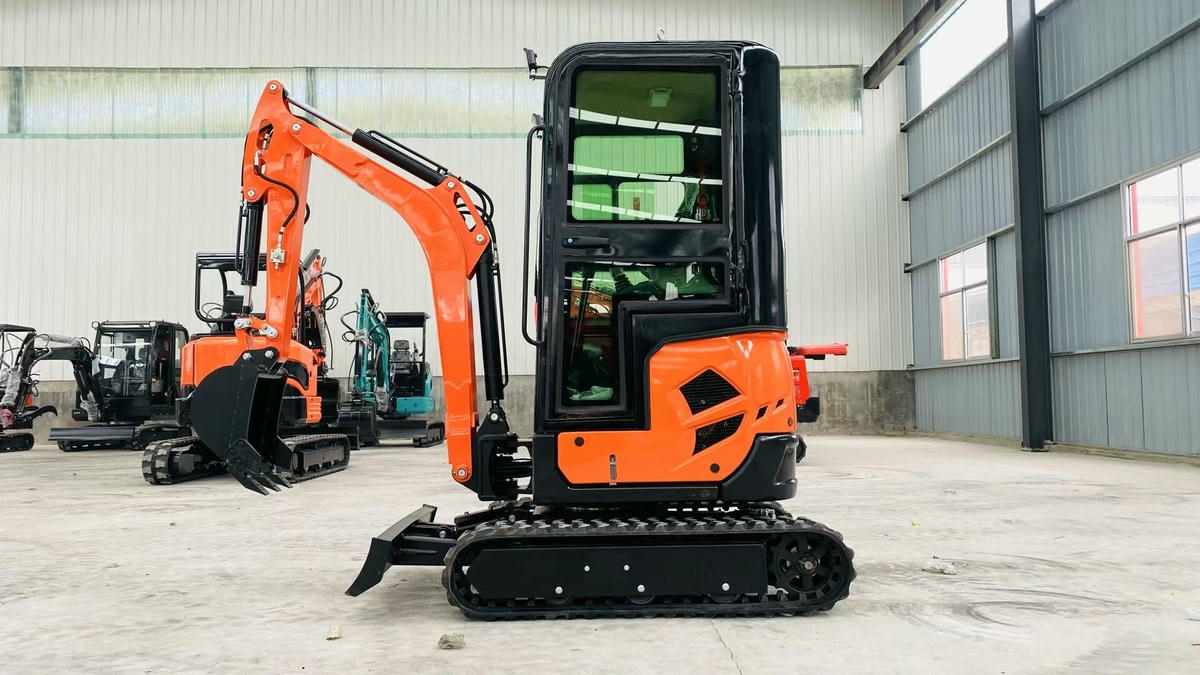

Mini Digger
The mini excavator is particularly suitable for municipal engineering projects. Its zero-tail-swing design ensures safe operation in confined spaces;
Its low-noise operation complies with urban environmental protection requirements;
The quick coupler enables tool attachments to be changed in just three minutes;
The intelligent monitoring system displays real-time operating parameters to help prevent potential failures.
Specially designed for daily urban maintenance, this mini excavator features noise control below 68 decibels (meeting residential construction standards), ensuring no disturbance during nighttime operations. Its ultra-compact turning radius allows for flexible maneuvering along sidewalks and within greenbelts.
The bucket can be replaced with a raking attachment to level gaps between sidewalk tiles. The hydraulic system responds swiftly, enabling precise depth control (with an error margin of ±2 cm) to prevent damage to underground utilities. The cab is equipped with a basic air conditioning system for greater operator comfort during high-temperature summer work.
| SPECIFICATION | Operation Weight | t | 1.4ton |
| Engine Brand | Laidong385 | ||
| Rated Power | Kw | 18.1 | |
| Digging Bucket Capacity | cbm | 0.04 | |
| Bucket Width | mm | 420 | |
| Traveling Motor | SANYO | ||
| Travel Speed | km/h | 2.1 | |
| Swing Motor | SANYO | ||
| Swing Speed | r/min | 10 | |
| Hydraulic System | Gear Pump | ||
| Body Swing Radius | mm | 820 | |
| Body Swing Angel | deg | 360 | |
| Boom Swing Angel(L/R) | deg | 55/45 | |
| Max. Grade Ability | deg | 35 | |
| Fuel Tank | L | 13.5 | |
| Hydraulic Fluid Chamber | L | 18 | |
| MAIN DIMENSIONS | Overall Length | mm | 3320 |
| Overall Width | mm | 1100 | |
| Overall Height | mm | 2292 | |
| Track Width | mm | 230 | |
| Track Length | mm | 1500 | |
| Body Width | mm | 945 | |
| WORKING RANGE | Max. Digging Radius | mm | 3500 |
| Max Digging Depth | mm | 2200 | |
| Max. Digging Height | mm | 2900 | |
| Max. Unloading Height | mm | 1780 | |
| Min. Swing Radius | mm | 1467 | |
| Max. Digging Depth Of Dozer Blade | mm | 329 | |
| Max. Lifting Height Of Dozer Blade | mm | 312 |
Manufacturing Facility Strength:
The factory has specialized in engineering equipment manufacturing for 20 years, featuring intelligent production lines and an environmentally friendly painting workshop (with VOC emissions 50% below national standards). The R&D team has optimized details for municipal applications—for example, the bucket blade is made of anti-chipping alloy to avoid scratching asphalt roads. The quality inspection center simulates complex urban conditions (such as frequent starts/stops and tight turns) to ensure equipment durability. The product has passed the EU CE certification and meets U.S. ANSI standards, complying with international procurement requirements.
International Trade Shipping:
Full-container shipments prioritize the protection of precision components (such as the control panel circuitry), with hydraulic valve groups individually packaged and secured on shock-absorbing pallets. All necessary customs clearance certificates are provided, including the U.S. EPA environmental declaration. For transportation needs in narrow urban streets, a disassembled packaging solution (separating the cab from the chassis) is offered, allowing for reassembly within just two hours after delivery.
International Trade After-Sales Service:
A one-year comprehensive warranty plus a two-year extended warranty for core components (hydraulic pump, engine) is provided. Spare parts are supported by global express delivery, with critical filters able to reach the customer’s warehouse within 72 hours.
