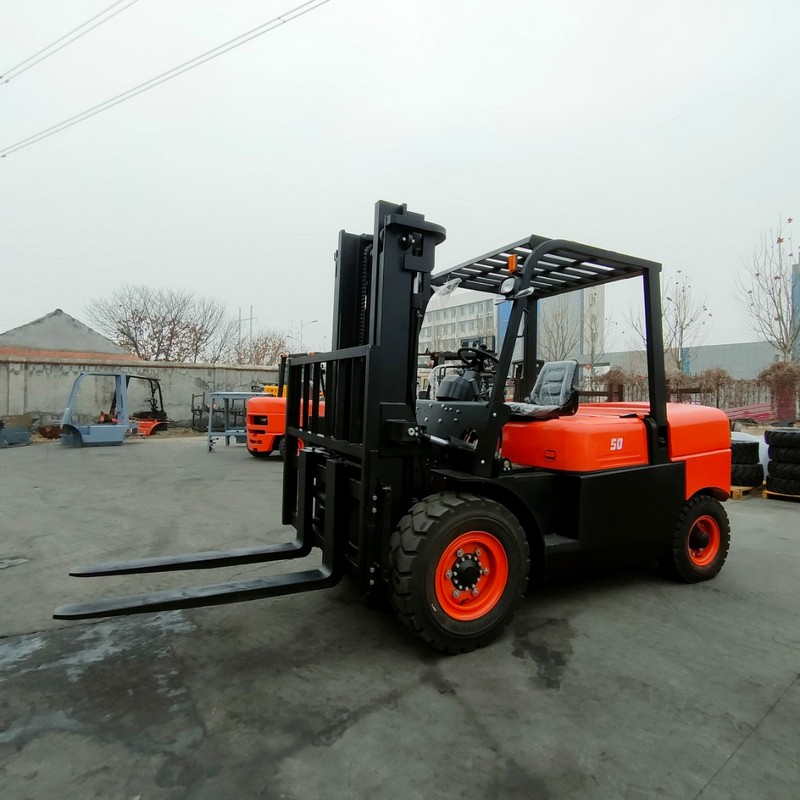

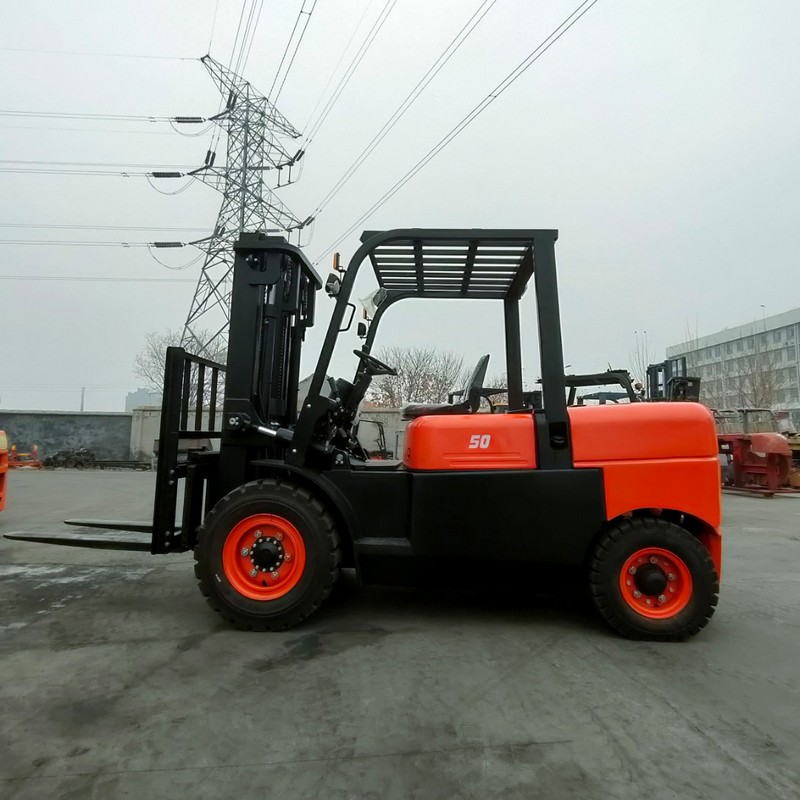

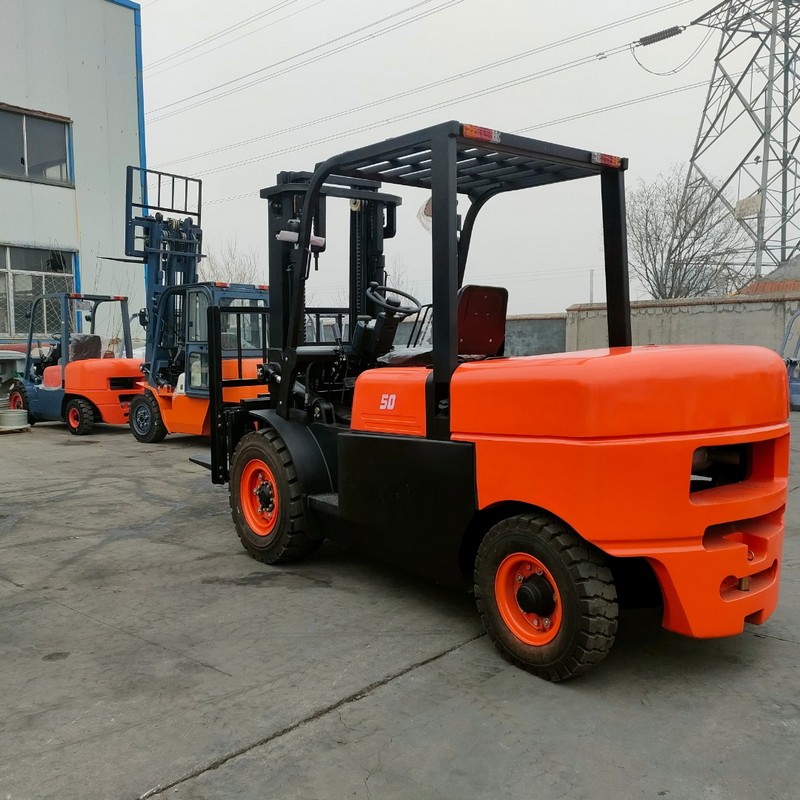

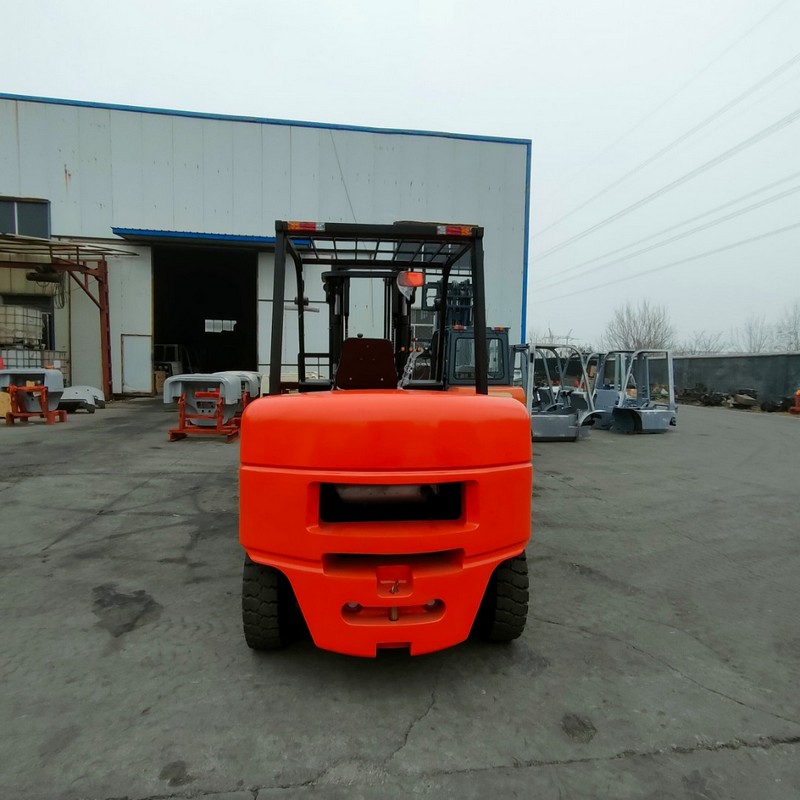

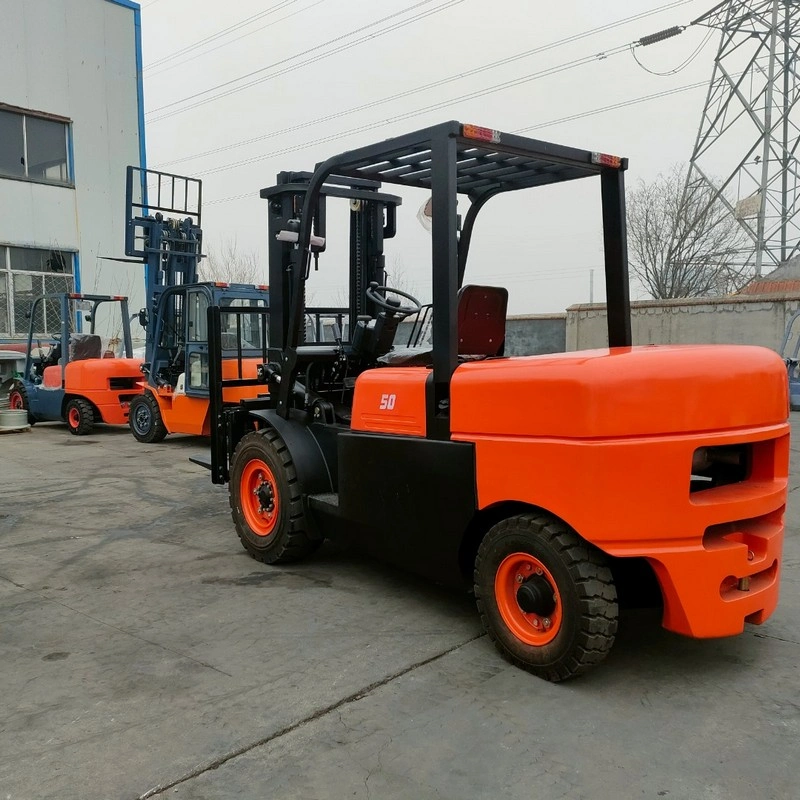

CPCD50 Forklift
Strong power: Equipped with an 60Kw diesel engine, it features max. torque up to 300Nm at low speeds and excellent climbing and heavy-load starting capabilities.
Efficient operation: Optimized hydraulic system ensures rapid lifting, lowering and traveling speeds, significantly enhancing handling efficiency.
Stability and Safety: The low center of gravity design and wide-field mast ensure stability and operational safety during heavy-load operations.
Easy maintenance: Open cabin, daily maintenance is within easy reach, effectively reducing maintenance costs and time.
In the field of heavy material handling, the CPCD50 forklift is an indispensable core force. Our products are specifically designed to handle extreme working conditions and continuous high-intensity operations. CPCD50 forklift enhance operational efficiency and ensure stable production. The power of this vehicle comes from Chinese brand XINCHAI diesel engine, which features the outstanding characteristic of high torque at low speeds, ensuring powerful performance even when starting under heavy loads, climbing slopes and in complex road conditions.
Its outstanding applicability has been verified in a variety of harsh scenarios:
• Port terminals and logistics hubs: Easily complete the rapid loading, unloading and stacking of heavy equipment and palletized materials inside containers and on platforms. Excellent endurance capacity meets the requirements of long-term continuous operation.
• Large-scale building materials and metallurgical enterprises: They can handle the transportation of heavy building materials such as steel, stone and glass with ease. The sturdy frame and reinforced door frame provide extraordinary load-bearing stability.
• Large-scale infrastructure projects and heavy equipment manufacturing plants: In relatively complex outdoor or workshop conditions, they precisely move large components and molds, acting as the "Hercules" on the production line.

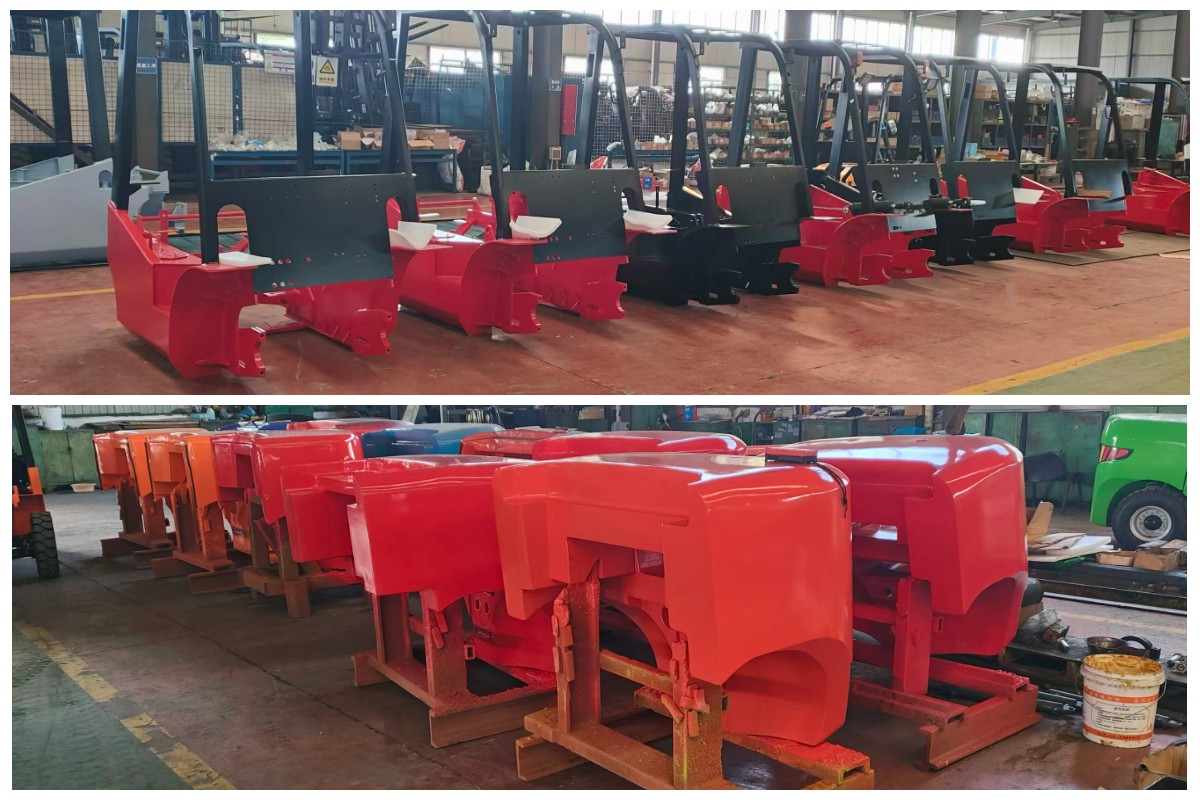

The outstanding reliability of this forklift is rooted in the factory's strong manufacturing capabilities. We have our own welding production line to ensure that the welds of key structural components (such as the frame and mast) are uniform and firm, guaranteeing the structural strength and extremely long service life of the entire vehicle from the source. The core components of the entire vehicle have undergone strict testing.
The assembly line ensures that every forklift coming off the line has a highly consistent and outstanding quality. In addition, we have established a complete quality tracing system. From steel plate cutting to vehicle inspection, every process is traceable. This is not only our commitment to quality, but also a demonstration of our strong production management capabilities.
Model | CPCD50F | |
Rated Capacity | kg | 5000 |
Load Center | mm | 500 |
Power Type | Diesel | |
Max. Lifting Speed (No-Load / Full-Load) | mm∕s | 375 |
Max. Driving Speed (Full-Load / No-Load) | km∕h | 20∕24 |
Max. Towing Capacity | KN | 31∕18 |
Gradeability (Full-Load / No-Load) | % | 15∕20 |
Lifting Height | mm | 3000 |
Free Lift Height | mm | 150 |
Mast Tilting Angle (Forward-Backward) | (°) | 6∕12 |
Min. Turning Radius | mm | 3000 |
Min. Right-Angle Aisle Width | mm | 2750 |
Min. Ground Clearance | mm | 170 |
Overall Length(Including Fork) | mm | 4350 |
Overall Width | mm | 1400 |
Overall Height (Mast Lowered) | mm | 2330 |
Overall Height (Mast Extended) | mm | 4265 |
Overall Height to Overhead | mm | 2330 |
Front Overhang | mm | 585 |
Wheelbase | mm | 2150 |
Front Tread | mm | 1180 |
Rear Tread | mm | 1190 |
Front Wheel | mm | 300-15 |
Rear Wheel | mm | 7.00-12 |
Self Weight | kg | 6800 |
Fork Width | mm | 150 |
Fork Thickness | mm | 50 |
Backrest Height | mm | 1275 |
Fork Length | mm | 1220 |
Engine Model | XINCHAI 4D35ZG31 | |
Rated Power | kW | 60 |
Rotation Speed at Rated Power | rpm | 2400 |
Max. Torque | Nm | 300 |
Rotation Speed at Max. Torque | rpm | 2000 |
Type of Power Shift | Hydralic |
Choosing our CPCD50 forklift is not only about selecting an efficient tool, but also about choosing a reliable partner and the lasting value brought by the powerful R&D and manufacturing system behind it.
