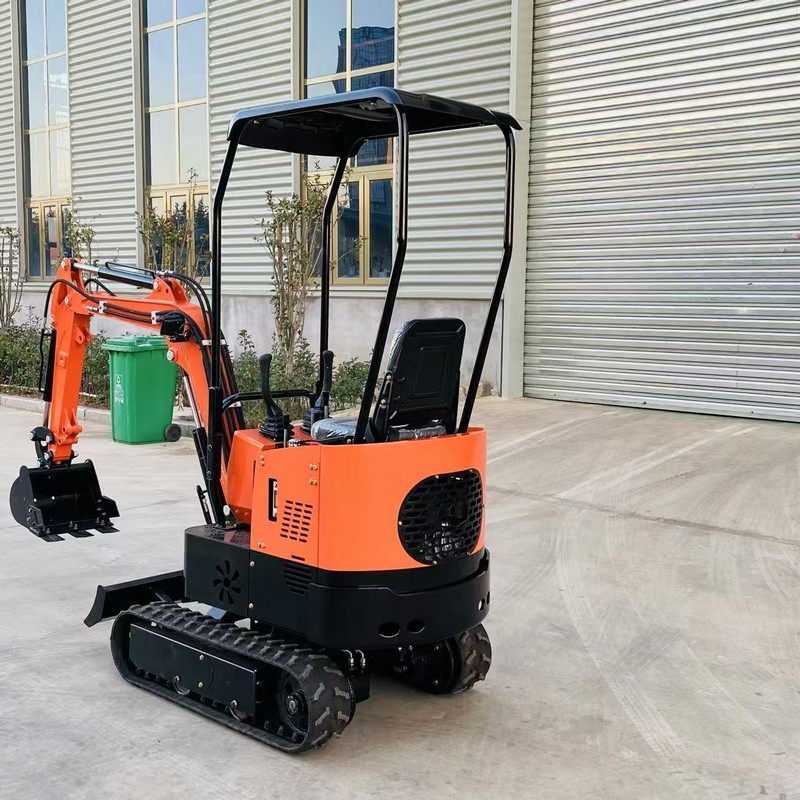

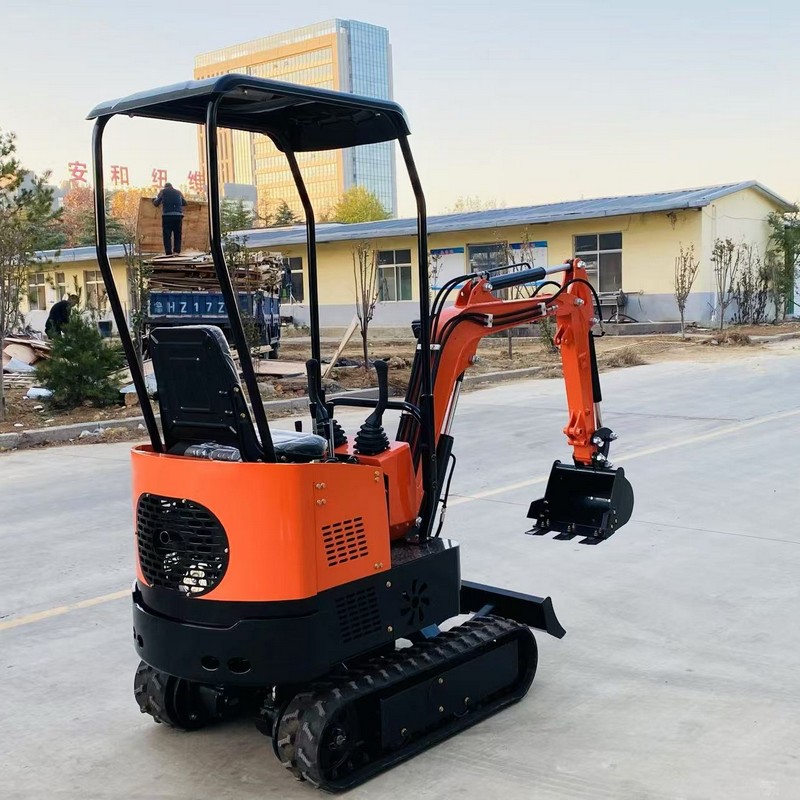

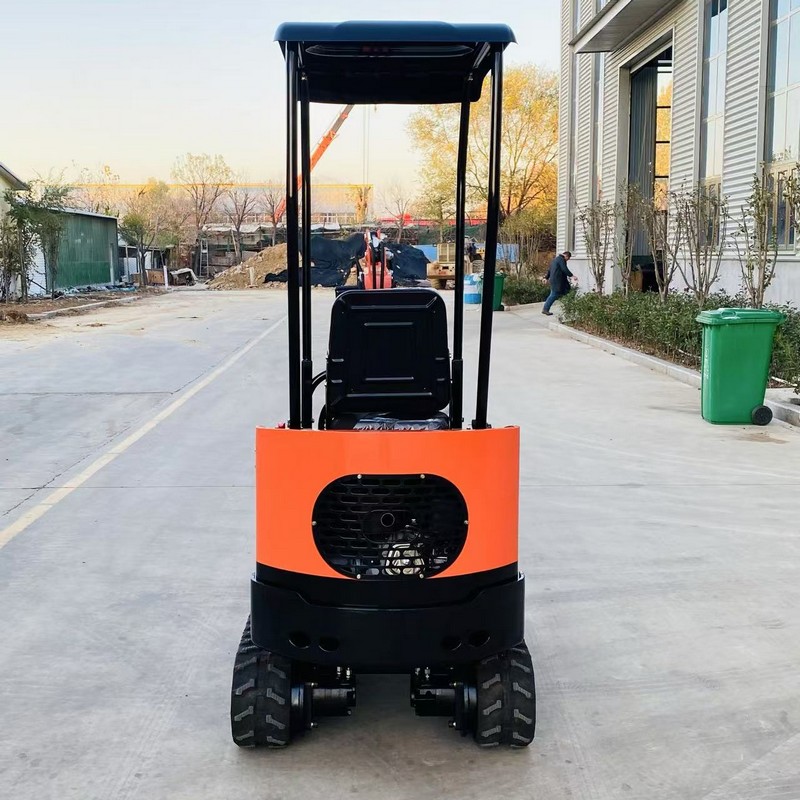

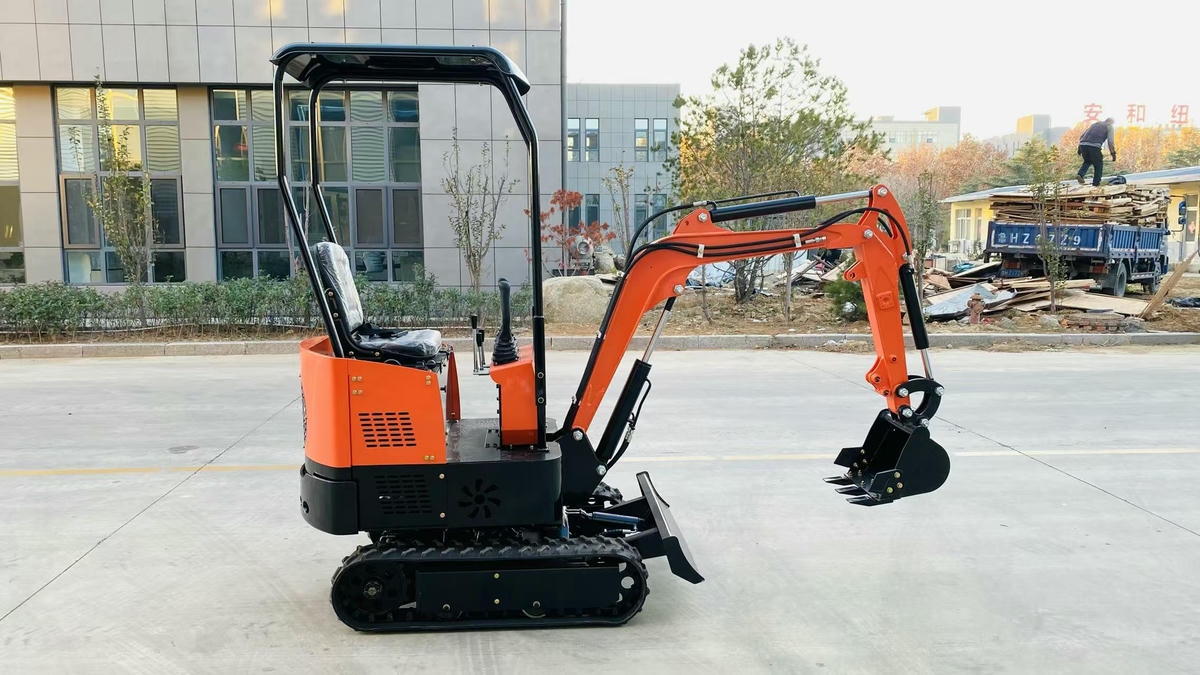

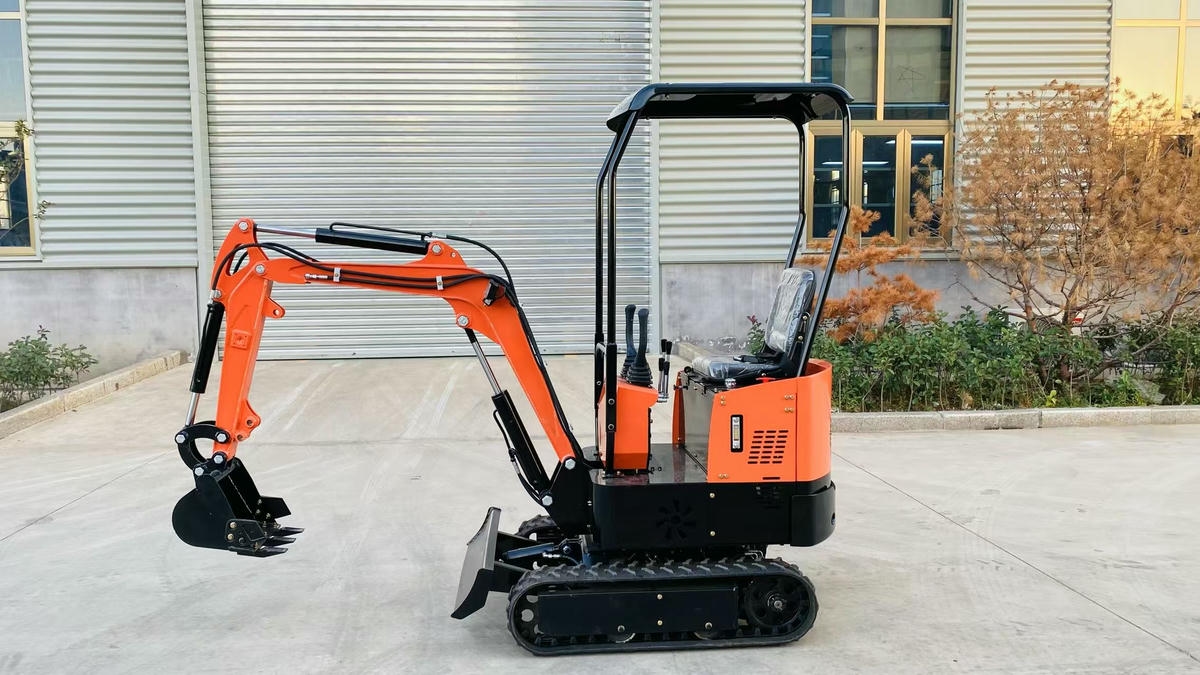

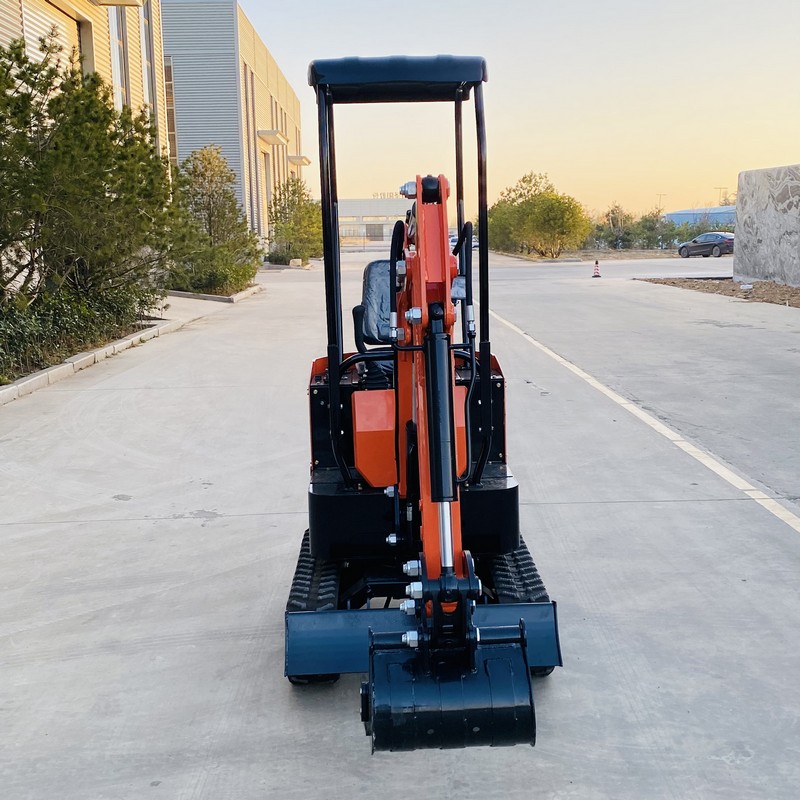

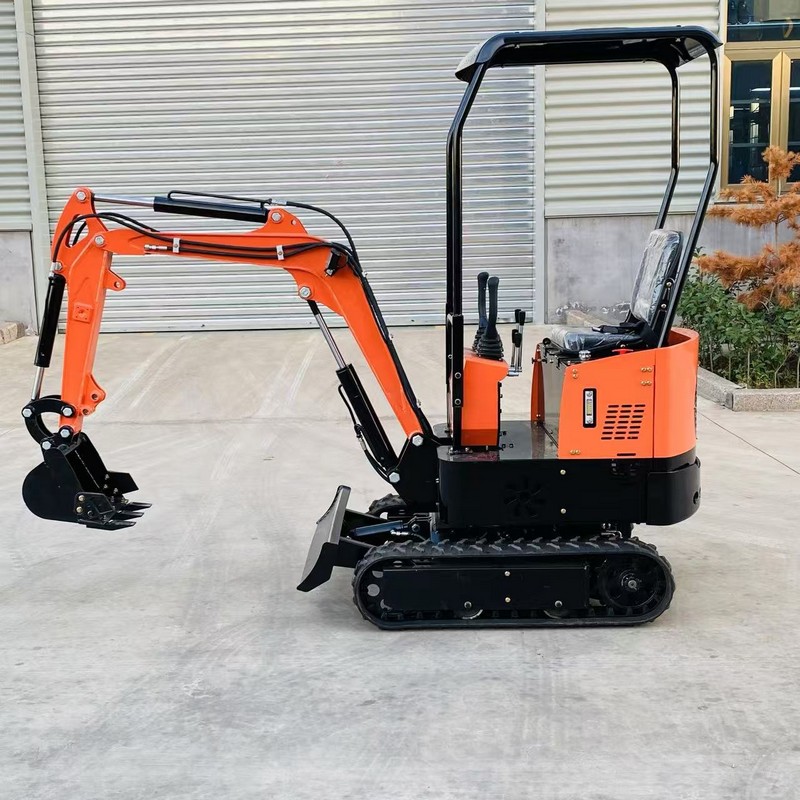

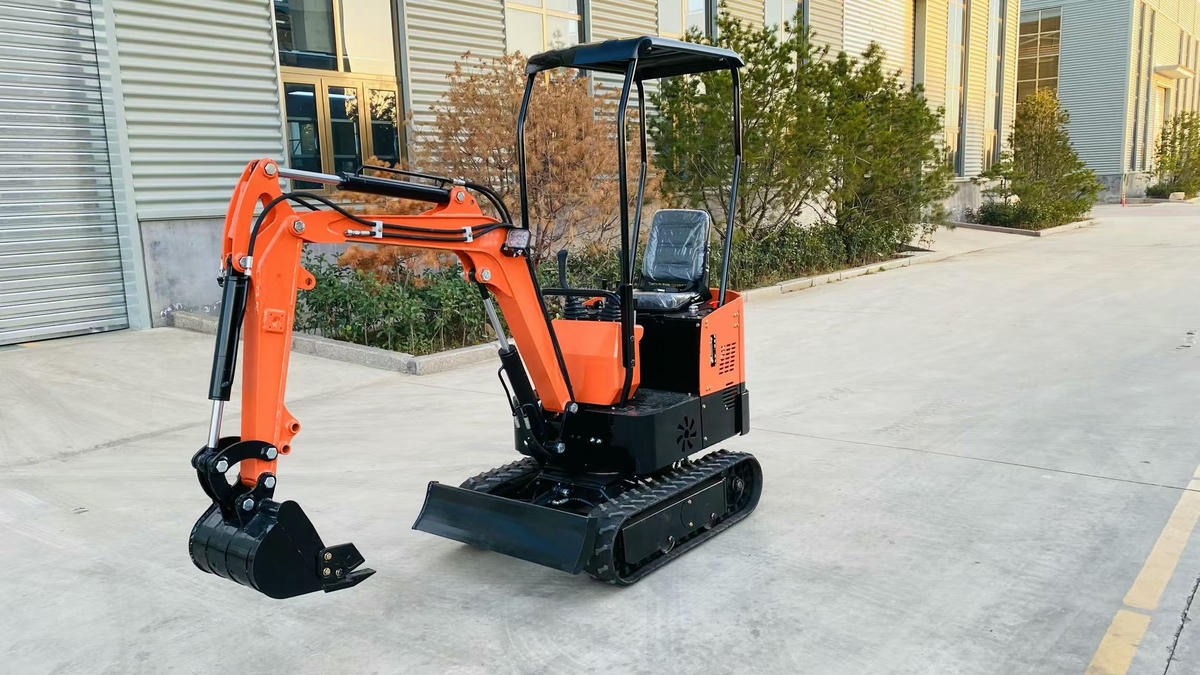

Small Excavator

Ultra-Compact Size: With a width of less than 1 meter, it can easily access narrow spaces such as indoor renovation sites, alleyways, or between dense buildings, overcoming the limitations of larger construction equipment.

Highly Flexible Operation: Features a 360-degree rotation design, enabling precise positioning and operation in confined areas—ideal for tasks requiring accuracy, such as trench digging near walls or pipe laying in tight corners.

Fuel Efficiency: Low fuel consumption of only 3-5 liters per hour, significantly reducing operational costs, especially for long-term or small-scale projects with tight budgets.

Simplified Maintenance: Daily upkeep (such as checking oil levels, cleaning filters, or inspecting tracks) can be completed by a single person without professional tools, minimizing downtime and labor input.

Floor-Friendly Design: Standard rubber tracks prevent damage to hardened surfaces like concrete floors, asphalt roads, or paved yards, making it suitable for urban construction, garden maintenance, or indoor renovation where surface protection is critical.

Contact Now E-Mail Telephone WhatsApp

Product Details

Product Advantages

Custom-designed for private gardens, this equipment combines practicality with home-friendly features:

Ultra-Compact Size: Small enough to directly enter villa garden gates, eliminating space constraints in residential yards.

Quiet Operation: Optional rubber tracks ensure low-noise performance (below 65 decibels), preventing disturbance to family and neighbors.

Versatile Yard Tasks: The bucket is ideal for digging fish ponds, flower bed foundations, and moving small amounts of soil (e.g., piling small mounds), meeting various gardening needs.

Easy for Homeowners: Simple operation allows owners to master use after brief training, avoiding reliance on professional operators.

Aesthetic Integration: Adopts home-friendly coatings that blend harmoniously with garden environments, enhancing visual coordination.

Small Excavator

SPECIFICATION	Operation Weight	t	0.85ton
	Engine Brand		KOOP192
	Rated Power	Kw	7.6
	Digging Bucket Capacity	cbm	0.017
	Bucket Width	mm	357
	Traveling Motor		PAIYI
	Travel Speed	km/h	2.1
	Swing Motor		PAIYI
	Swing Speed	r/min	8
	Hydraulic System		Gear Pump
	Body Swing Radius	mm	744
	Body Swing Angel	deg	360
	Boom Swing Angel(L/R)	deg	55/45
	Max. Grade Ability	deg	30
	Fuel Tank	L	4.89
	Hydraulic Fluid Chamber	L	12
MAIN DIMENSIONS	Overall Length	mm	2820
	Overall Width	mm	943
	Overall Height	mm	2220
	Track Width	mm	180
	Track Length	mm	1257
	Body Width	mm	845
WORKING RANGE	Max. Digging Radius	mm	2600
	Max Digging Depth	mm	1340
	Max. Digging Height	mm	2100
	Max. Unloading Height	mm	1550
	Min. Swing Radius	mm	1220
	Max. Digging Depth Of Dozer Blade	mm	210
	Max. Lifting Height Of Dozer Blade	mm	163

Strength of the Manufacturing Plant

With 20 years of focus on household construction machinery, the factory excels in:

Equipping production lines with precision debugging equipment to ensure optimal performance and user comfort.

A R&D team that optimizes functions for garden scenarios—for example, reducing throttle sensitivity to prevent misoperation, enhancing safety for non-professional users.

Rigorous quality inspections focusing on appearance details (e.g., no sharp edges) and low-noise performance, aligning with home use standards.

International Shipping Services

Tailored "door-to-yard" packaging and logistics solutions:

Equipment is secured with fixed brackets during packing to protect tracks and buckets from scratches during transportation.

After sea freight arrival at the port, "last-mile" delivery guidance is provided (e.g., tips for navigating small ramps into gardens) to simplify on-site access.

International After-Sales Service

Extended Warranty: 3-year warranty (extended for home use scenarios) to ensure long-term reliability.

User-Friendly Resources: Provides simplified operation manuals for easy reference.

Prompt Parts Supply: Common parts like buckets and filters are delivered within 10 working days, minimizing downtime.

Remote Assistance: A remote team offers video guidance for homeowners to complete basic maintenance (e.g., oil replacement), making upkeep hassle-free.
