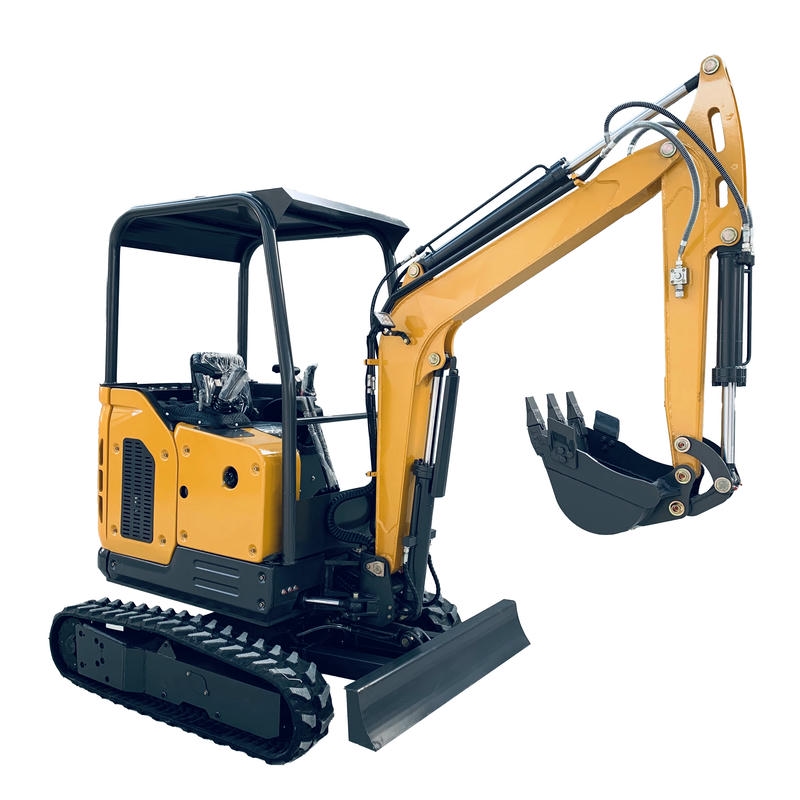

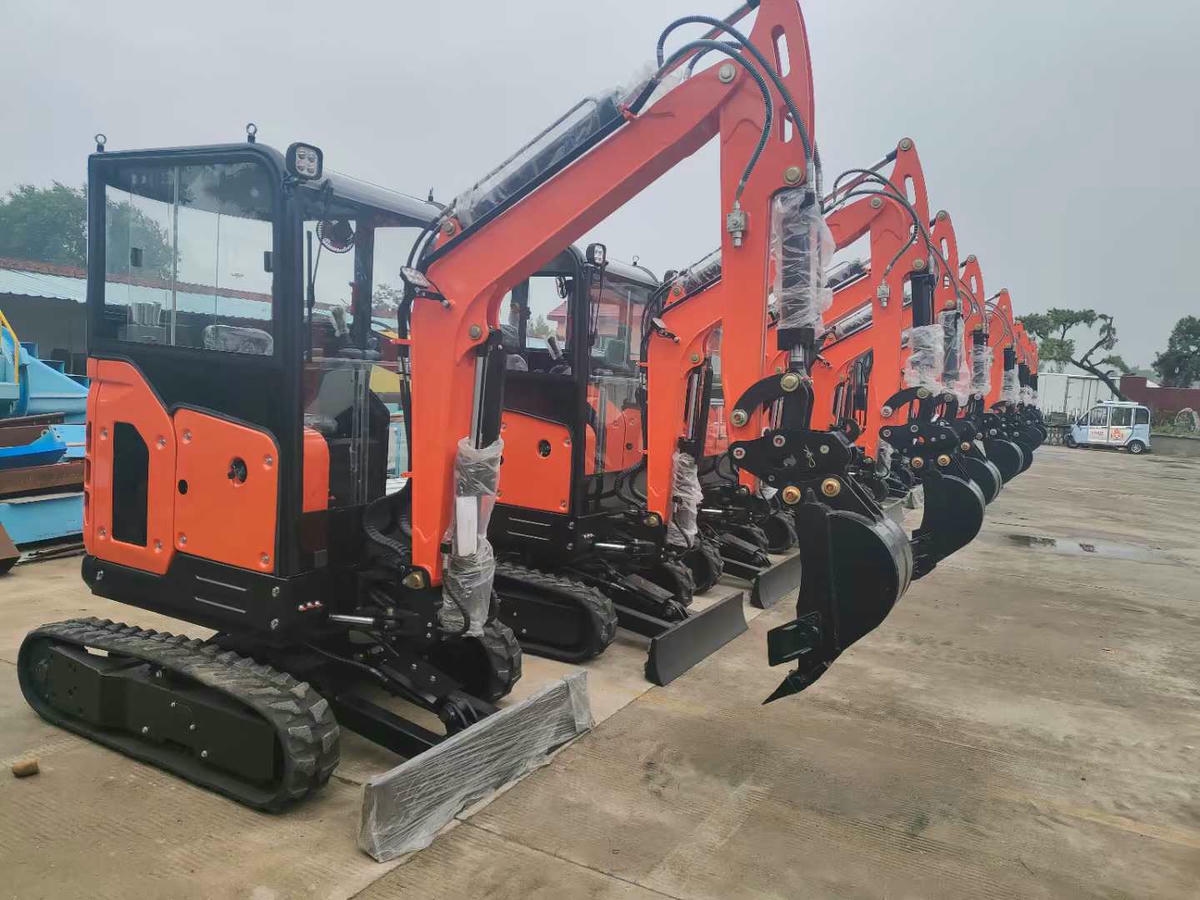

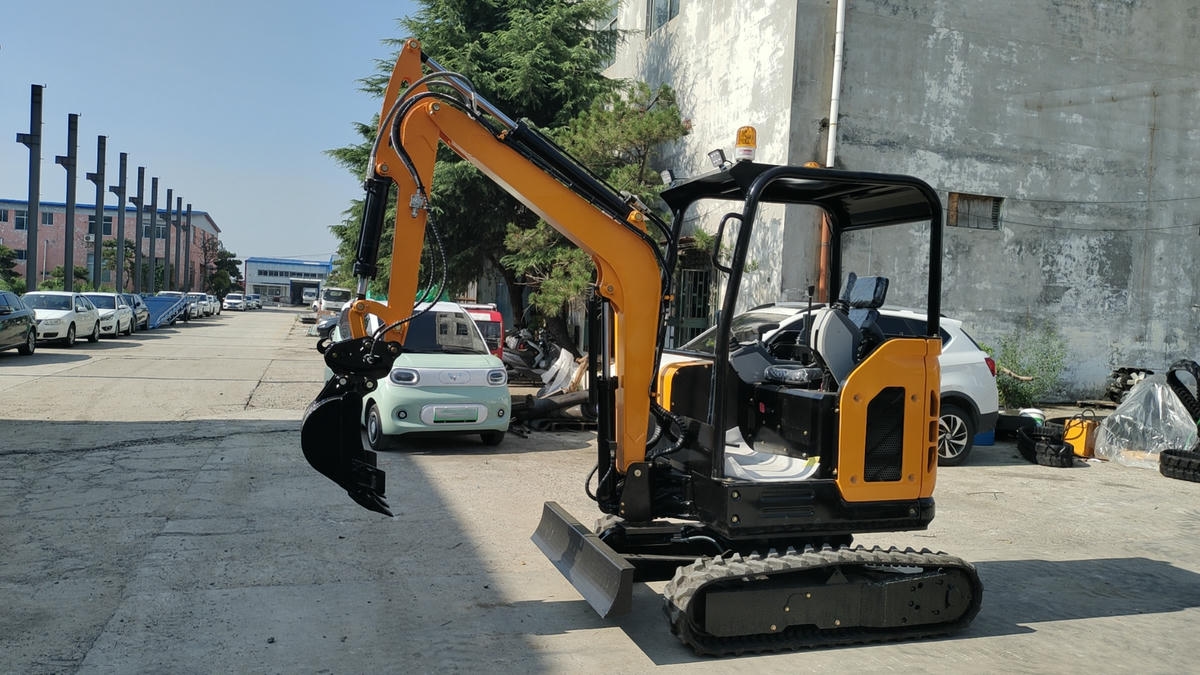

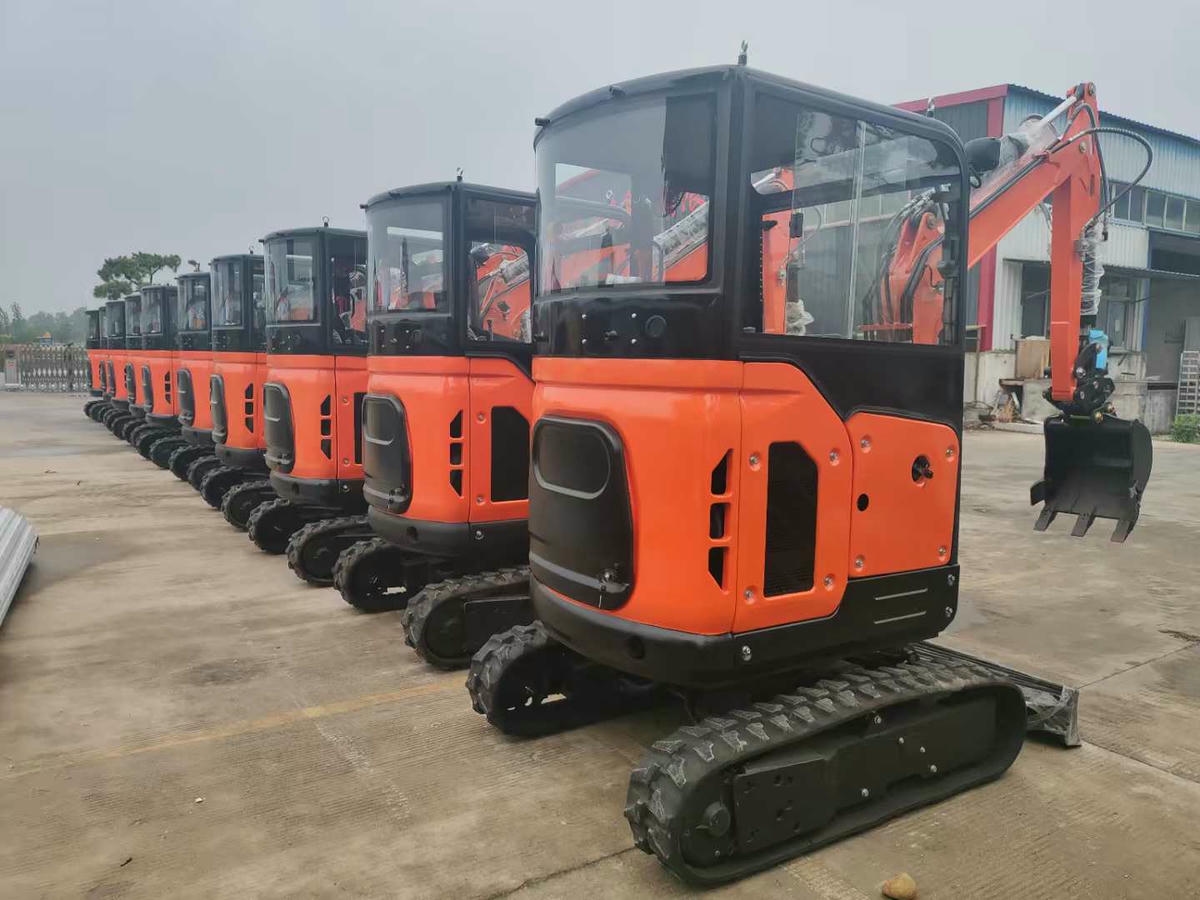

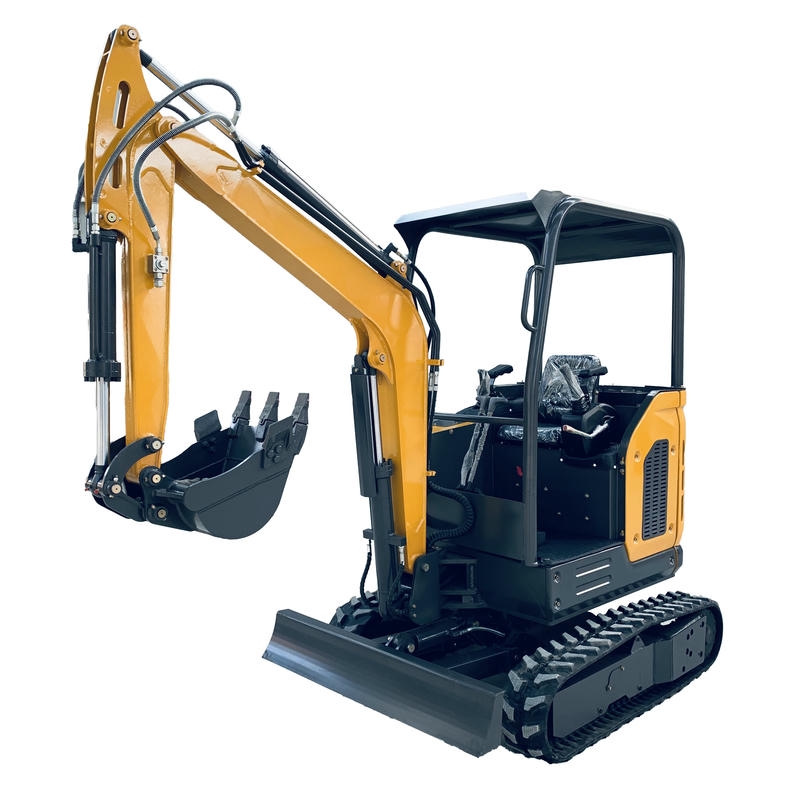

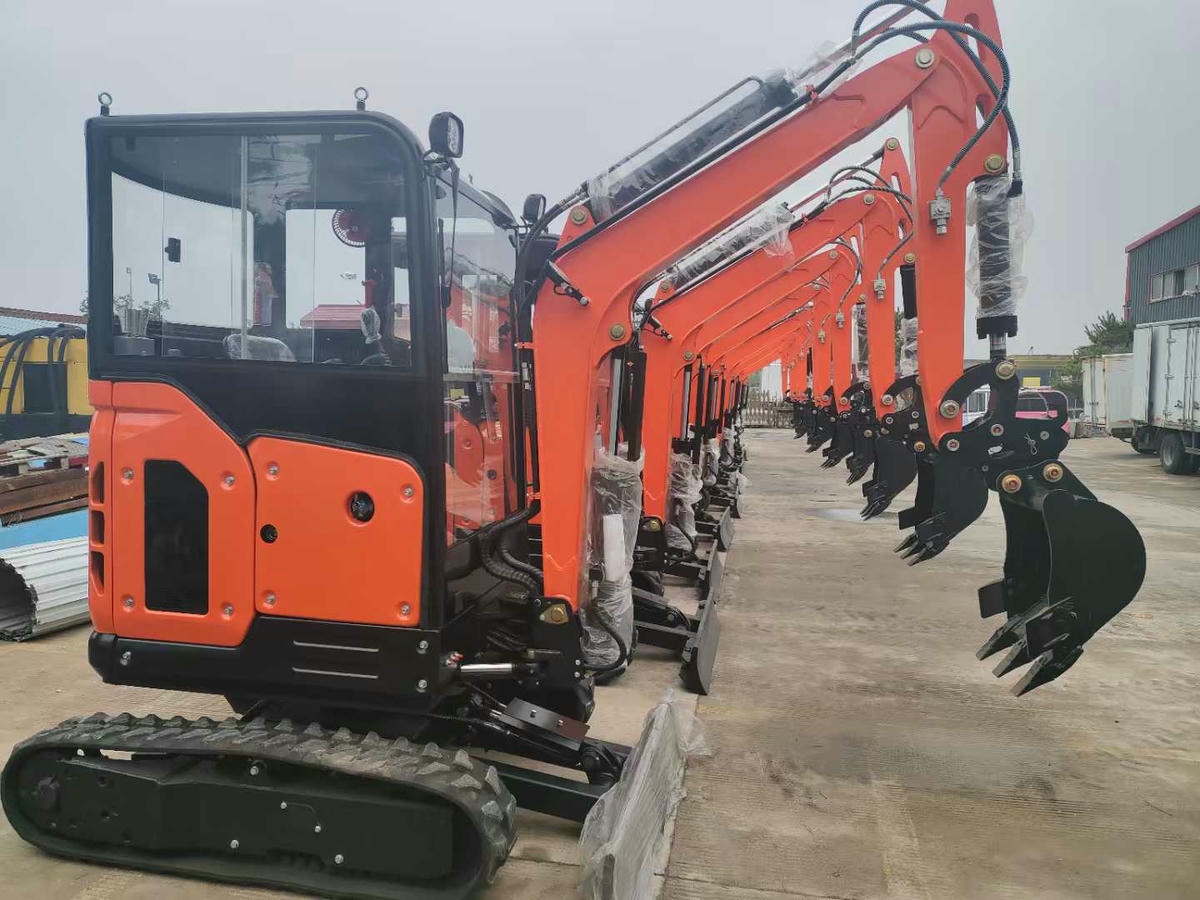

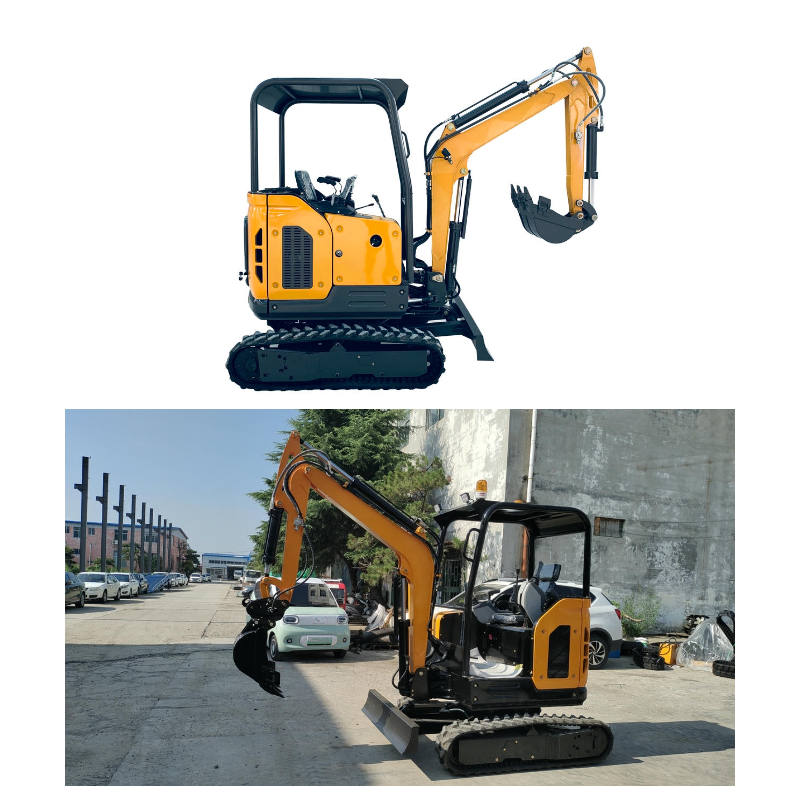

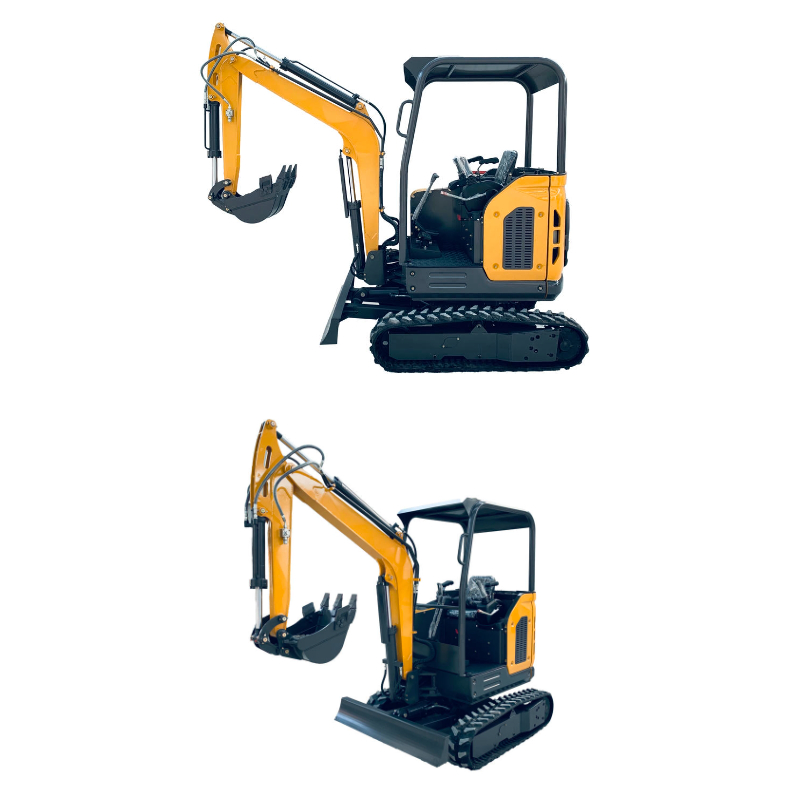

Mini Excavator 2.5 Ton

Flexible & Compact: Efficient operation in narrow spaces, inaccessible to large equipment.

Multi-functional: Quick attachment change, suitable for digging, crushing, drilling and other scenarios.

Lower Cost: Economical purchase, fuel consumption and maintenance costs with fast payback.

Easy Mobility: Small size and light weight, transportable by ordinary vehicles with high transfer efficiency.

WhatsApp Contact Now E-Mail

Product Details

This 2.5-ton mini excavator is a highly efficient and versatile machine designed for municipal engineering, gardening, rural infrastructure, interior demolition and construction in confined spaces. It combines flexibility, power and cost efficiency to meet the demands of various working conditions.

With an operating weight of approximately 2,500 kg, the excavator features a zero-tail swing and compact structure, with a minimum turning radius of only about 1.2 meters. It can operate freely in narrow spaces such as alleys, corridors and green belts where large equipment cannot enter, greatly improving adaptability to complex working conditions. Powered by a 14.2kW engine that meets China IV / Euro V emission standards, it delivers strong power with low fuel consumption. Supported by a high-efficiency hydraulic system, it reaches a maximum digging depth of 2.6 meters and a digging force of 19kN, ensuring efficient and stable performance in earth excavation, pipeline laying and site leveling.

SPECIFICATION	Operation Weight	t	2.5ton
	Engine Brand		Changchai 390
	Rated Power	Kw	20
	Digging Bucket Capacity	cbm	0.075
	Bucket Width	mm	500
	Traveling Motor		LKC
	Travel Speed	km/h	3.1/2
	Swing Motor		LKC
	Swing Speed	r/min	12
	Hydraulic System		Plunger Pump
	Body Swing Radius	mm	883
	Body Swing Angel	deg	360
	Boom Swing Angel(L/R)	deg	55/45
	Max. Grade Ability	deg	35
	Fuel Tank	L	16
	Hydraulic Fluid Chamber	L	26
MAIN DIMENSIONS	Overall Length	mm	4185
	Overall Width	mm	1500
	Overall Height	mm	2280/2450
	Track Width	mm	250
	Track Length	mm	2044
	Body Width	mm	1260
WORKING RANGE	Max. Digging Radius	mm	4350
	Max Digging Depth	mm	2745
	Max. Digging Height	mm	3457
	Max. Unloading Height	mm	2366
	Min. Swing Radius	mm	2159
	Max. Digging Depth Of Dozer Blade	mm	293
	Max. Lifting Height Of Dozer Blade	mm	191

The machine supports quick replacement of attachments including hydraulic breakers, augers and grapples, realizing multiple functions such as digging, crushing, drilling and grabbing, which reduces equipment investment and improves project efficiency. The chassis can be equipped with retractable and rubber tracks to ensure trafficability and road protection. A standard dozer blade helps with site leveling and obstacle removal for continuous operation.

Built with thickened steel plates and plastic spraying technology, the body is rust-proof and durable. The sealed hydraulic system and reinforced cylinders lower leakage and failure rates, cutting maintenance costs. Light in weight, it can be transported by ordinary flatbed trucks without large trailers, enabling efficient short-distance transfer and a shorter payback period. Equipped with hydraulic pilot joysticks for precise and light operation, it can also be fitted with a closed cab and heating & cooling system for better comfort during long hours of work.

It is widely used in municipal maintenance, landscaping, orchard renovation, interior demolition and rural infrastructure, making it a cost-effective choice for small-scale projects and the rental market.
